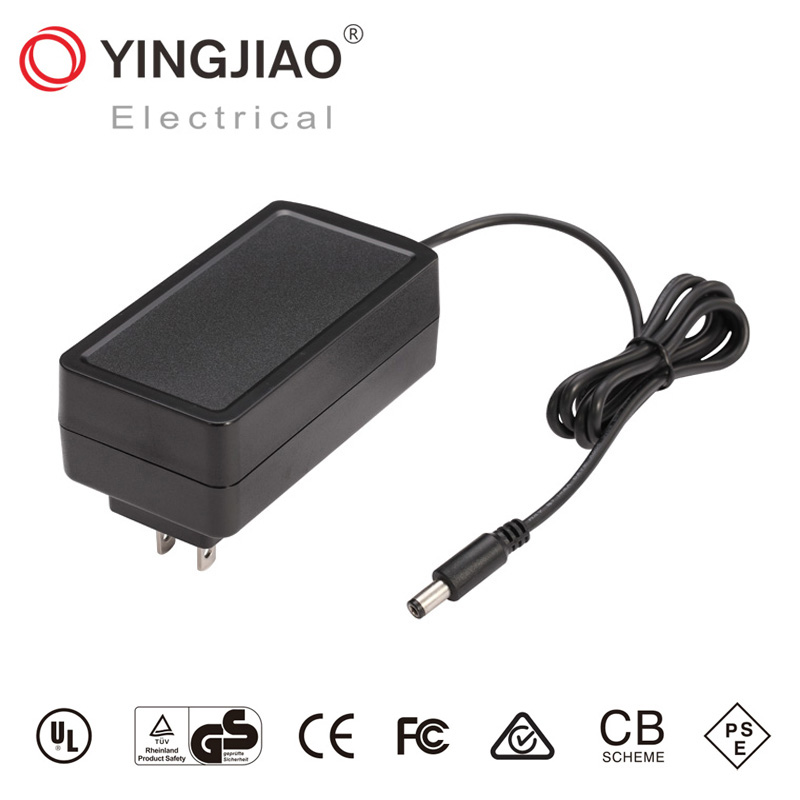

SWITCHING POWER ADAPTERS
Share this page
Model No.:
YS39
Brand:
YINGJIAO
Colour:
BLACK
Size:
100*53*34.5MM
Package:
Yes
Customised:
Yes
Output Type:
DC
Connection:
Plug In
Usage:
Switching Power
Description
Contact Supplier
Description
Model: YS39E
Power: 40W max.
Input: 100-240VAC 50/60Hz
Output Voltage: 5-36V
Output Current: 0.1-4A
Input current: 0.89A max.
Inrush Current: 65 Amps max. at 230VAC/50Hz,full load
Leakage Current: 25mA Max. at 264VAC input
Energy Efficiency Level VI : CoC 5 / DoE 6 / CEC VI
No Load Power Consumption : <0.075W
Protections: Short Circuit /Over Current /Over Voltage
Short Circuit Protection (SCP): Protection to Zero Voltage
Over Voltage Protection (OVP): ≤Vout*150%
Over Current Protection (OCP): 110%-180%
Working TEMP.: -20°C-50°C
Working Humidity: 5%-90% RH non-condensing
Storage TEMP.,Humidity and altitude: -40℃ ~+70°C ambient temperature and a 5% to 95% relative humidity range throughout an altitude range of -60 meters to +5000 meters AMSL.

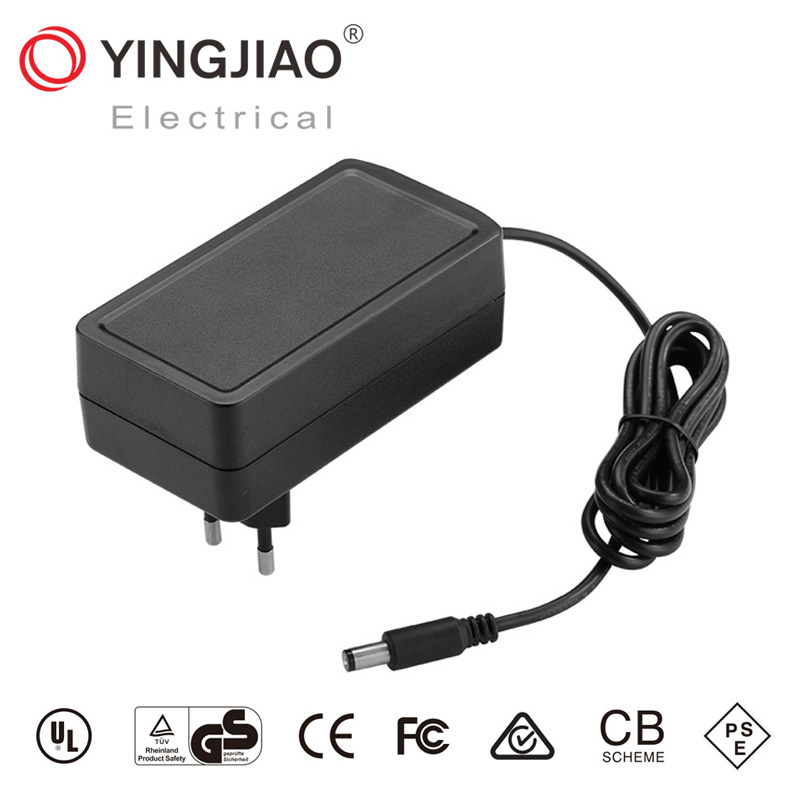

Input Plug: EU 2pin
Certificates and approvals: UL,GS,CE,EMC,SAA,FCC,CB,PSE,CCC,RoHS,REACH
EMI EMISSION: Radiation Test&Conduction Test: EN 55022/FCC Part 15
Harmonic Test : EN 61000-3-2
Flicker Test : EN 61000-3-3
EMS IMMUNITY: ESD  Test:EN 61000-4-2
RS    Test:EN 61000-4-3
EFT   Test:EN 61000-4-4
Surge Test:EN 61000-4-5
CS     Test:EN 61000-4-6
MF     Test:EN 61000-4-8
DIP    Test:EN 61000-4-11
MTBF: 100000 hours minimum at full load at 25℃ ambient
Life: 3-5 years alternative
Dimension: 100*53*34.5mm
Weight: 160g
Packing: 50PCS/CTN
