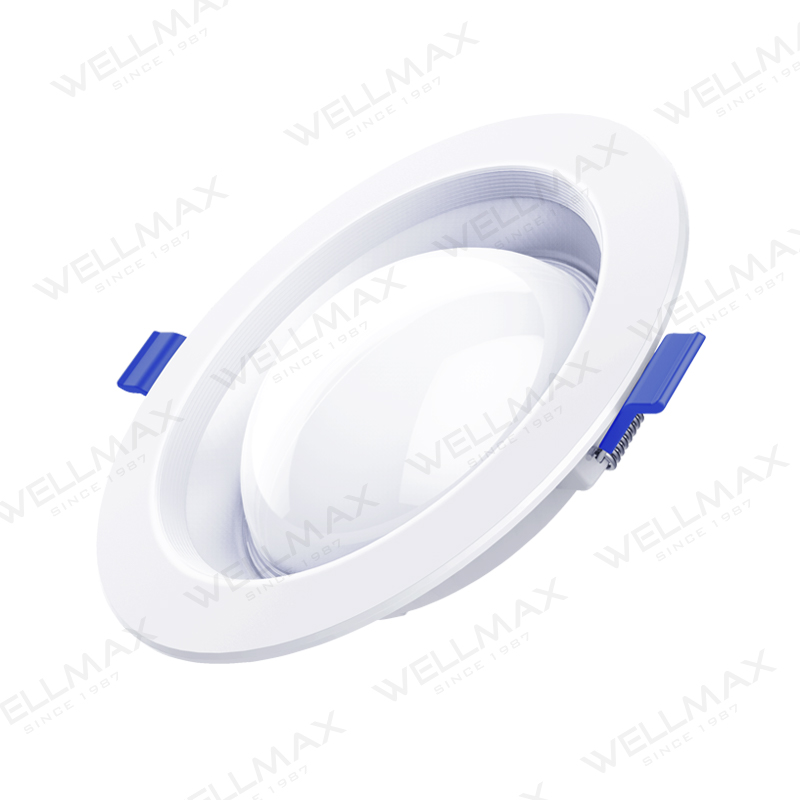

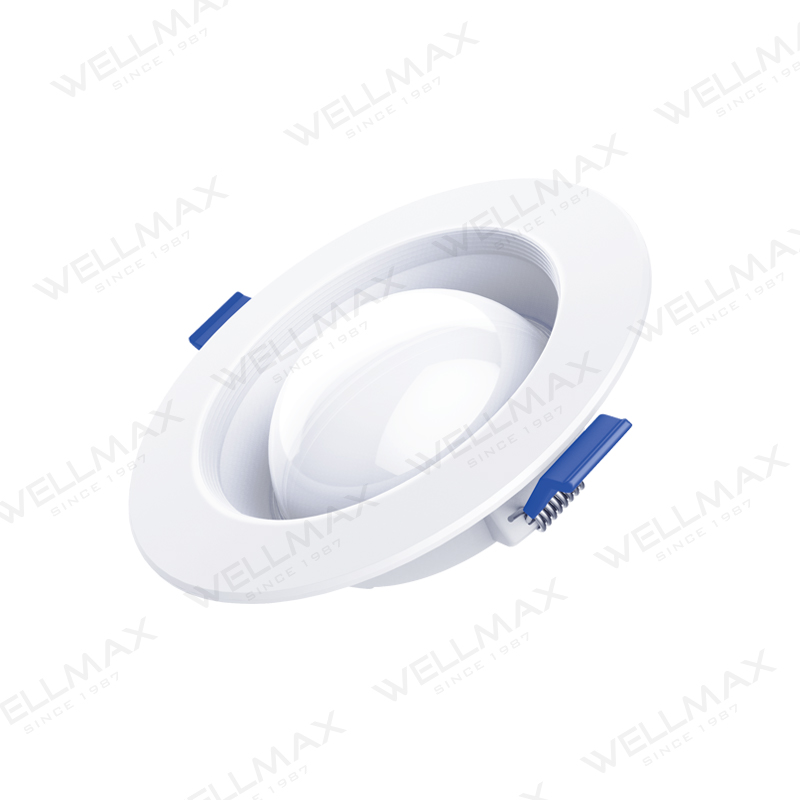

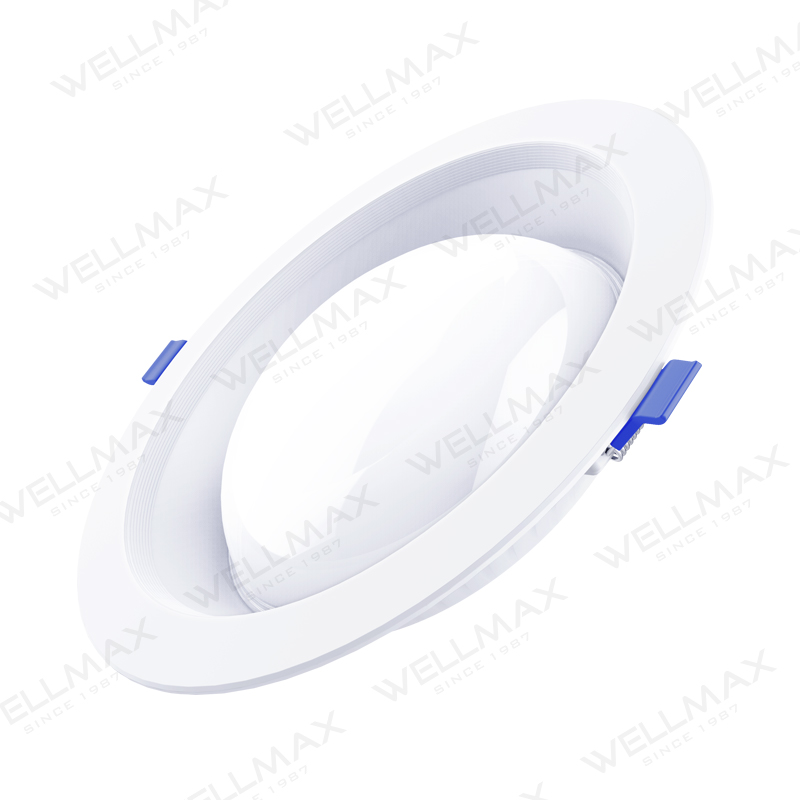

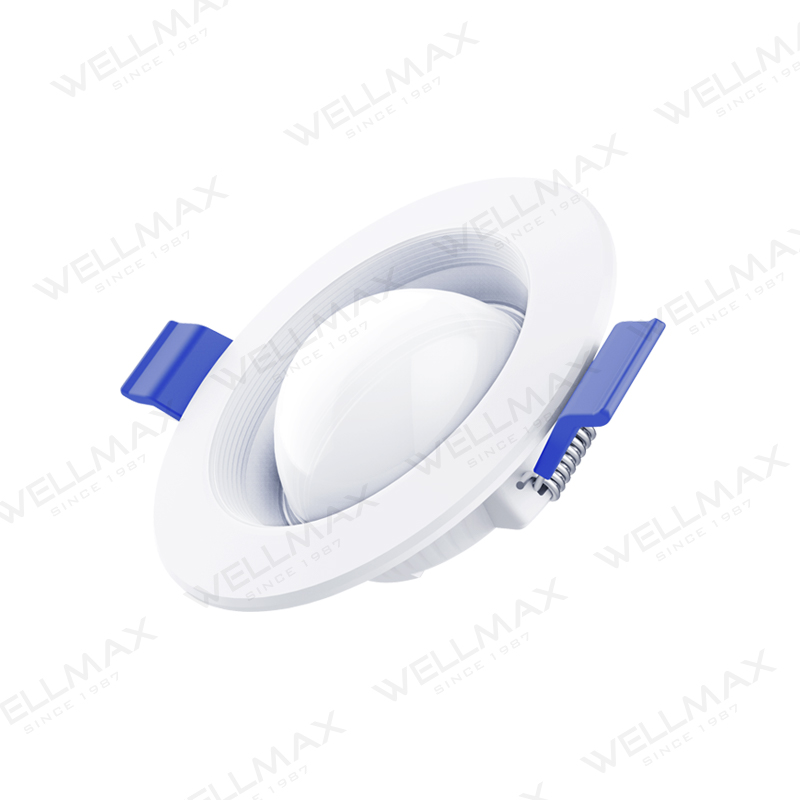

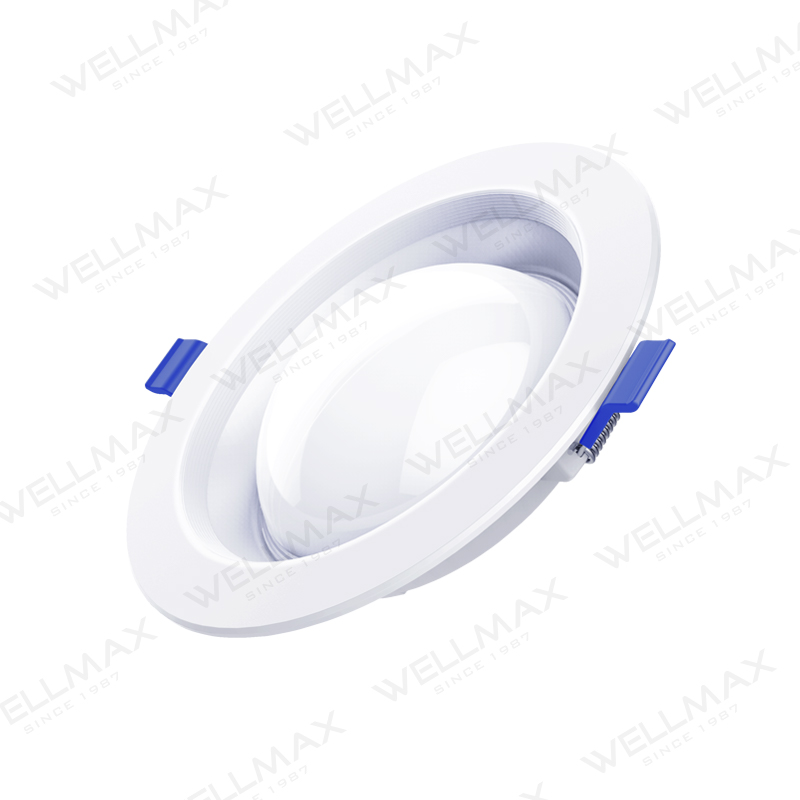

Saturn Series LED Downlight

Production Lead Time:

35 day(s)

Shipping Method:

by sea

Brand:

WELLMAX

Model No.:

L-DL-0600

Description

Contact Supplier

*Patented appearance design (Patent No.: ZL 202030371152.9): Renew the traditional downlight shape in a modern way.

*Patented utility model technology (Patent No.: ZL 202021441573.5): Unique optical design ensures uniform output light and increases the brightness by 30%.

*Simpler structure satisfying automated assembly and production. Allow an easier SKD solution.

*Body: High thermal conductivity plastic material.

Specification:

Item number	Voltage	Watts	Luminous Flux	P.F.	CCT	CRI	Lifetime	Dimension	Hole size	Dimmable

	(V)	(W)	(lm)		（K）		(hrs)	Φ*L(mm)	(mm)
L-DL-0600- 3W	100-264V 220-240V	3W	240lm	0.5	3000K 4000K 6500K	≥80	25000	Φ95*36	Φ70-80	no

L-DL-0600- 6W	100-264V 220-240V	6W	480lm	0.5	3000K 4000K 6500K	≥80	25000	Φ130*42	Φ100-110	no

L-DL-0600- 9W	100-264V 220-240V	9W	720lm	0.5	3000K 4000K 6500K	≥80	25000	Φ160*45	Φ125-135	no

L-DL-0600- 12W	100-264V 220-240V	12W	960lm	0.5	3000K 4000K 6500K	≥80	25000	Φ180*48	Φ140-160	no

L-DL-0600- 18W	100-264V 220-240V	18W	1440lm	0.9	3000K 4000K 6500K	≥80	25000	Φ225*55	Φ195-210	no
