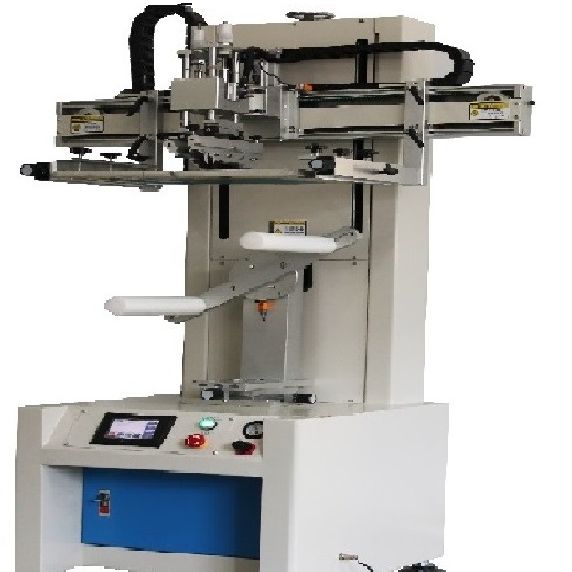

Features:

Motor Driven Left / Right Movement for quiet and smooth operation

Touch Screen Control

Manual / Auto operation selectable

Servo Motor Driven Turning Device ensures accuracy.

Linear Bearings applied for left / right movement

Up/Down movement by pneumatics cylinder

Turn 180 degree after first face printing for completion of second face printing

Heavy duty machine body

Specifications:

Max. Printing Area          :     300 x 500mm

Max. Screen Size            :     850 x 500mm

Max. Height Headroom ：     120mm

Max. Printing Speed       :     3 cycles (2 sides)/min.

Pressure requirement     :     6 Bar

Power                      :    220V 50Hz

Power Consumption :    800W

Measurement           :     720 x 1200 x 1850mm

Weight                     :     220kg
