Sealed Push button Switch right angle DP

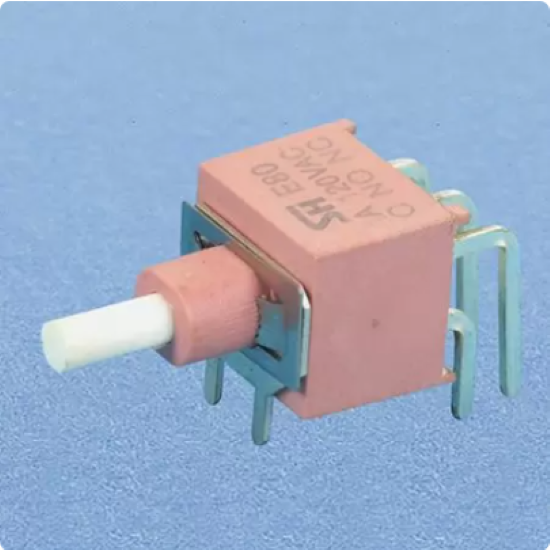

E80-P Sealed Snap-Acting Momentary Pushbutton Switches

This pushbutton switch comes with right angle, PC thru-hole termination. Snap-acting momentary type. Process sealed, withstands soldering and cleaning. Long life contact design. This switch is perfect for Instrumentation, Telecommunications and networking equipment, Computers and peripherals.

Features

• Circuit: DPDT
• Various sizes and colors of cap for choice

Specification

• Contact Rating: 1A @120 VAC or 28 VDC
• Life Cycle: 50,000 make and break cycles at full load
• Contact Resistance: 20 mΩ max. initial @2-4 VDC, 100 mA
• Insulation Resistance: 1,000 MΩ min.
• Dielectric Strength: 1,000 V RMS @ sea level.
• Operating Temperature: -30°C to 85°C

Materials

• CASE &BUSHING: Glass filled nylon 6/6 or nylon 4/6 (UL94V-0)
• PLUNGER: Glass filled nylon or glass filled polyester (UL94V-0), with intermal o-ring seal standard
• SWITCH SUPPORT: Copper alloy or steel, tin plated
• CONTACT & TERMINAL: Copper alloy, silver plated
• TERMINAL SEAL: Epoxy

Application

• Telecommunications and networking equipment
• Instrumentation
• Computer peripherals
