Sealed Rocker Switch right angle DPDT

E80-R Sealed Rocker & Paddle Switches

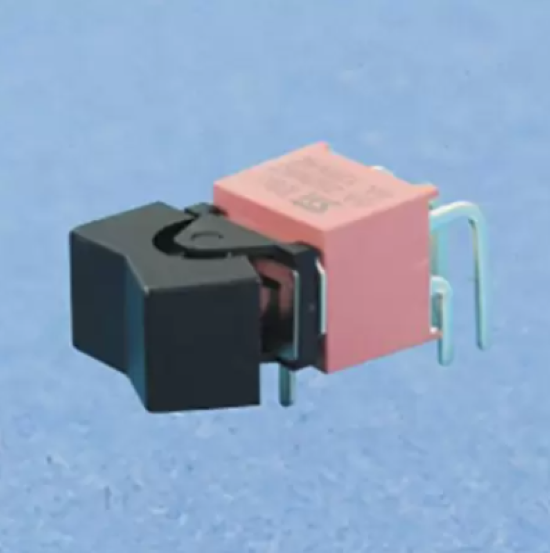

This rocker switch comes with right angle, PC thru-hole termination. Made by UL 94V-0 Nylon case and bushing. It is completely sealed to IP67 standards. Sealed structure can avoid any contaminant during soldering and cleaning process. This switch is perfect for Telecommunications, Instrumentation and Computers & peripherals.

Features

• Sealed against solder and cleaning processes
• Multi-positions
• Circuit: DPDT

Specification

• Contact Rating: 6A @125 VAC or 28 VDC (Q terminal)
• Life Cycle: 30,000 make and break cycles at full load
• Contact Resistance: 10 mΩ max. initial @2-4 VDC,100 mA
• Insulation Resistance: 1,000 MΩ min.
• Dielectric Strength: 1,500 V RMS @ sea level.
• Operating Temperature: -30°C to 85°C

Materials

• CASE & BUSHING: Glass filled nylon 6/6 or nylon 4/6 (UL94V-0)
• ACTUATOR: Nylon, black standard, internal o-ring seal standard with all actuators
• SWITCH SUPPORT: Copper alloy or steel, tin plated
• CONTACT & TERMINAL: Copper alloy, silver plated
• TERMINAL SEAL: Epoxy

Application

• IPC equipment
• Power equipment
• Electronic appliance
• Networking
• Transportation
• White goods
