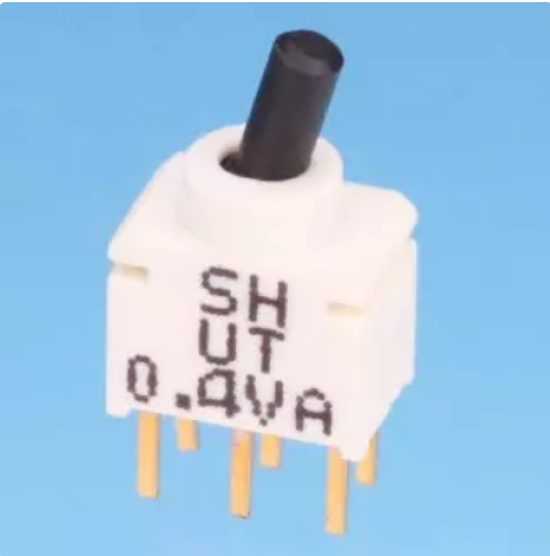

Sealed Ultraminiature Toggle Switches

UT

Salecom ultraminiature toggle switch's features are ultraminiature size saves space, sealed against solder and cleaning processes, thru-hole and surface mount models, high temperature materials (UL 94V-0).

Features

• Contact Rating: 0.4 VA max.@ 28 VDC.
• Life Cycle: 10,000 cycles
• Contact Resistance: 100 mΩ max. initial@ 2-4VDC,100 mA.
• Dielectric Strength: 250VAC, 50Hz for the duration of 1 minute.

Application

• Small instrumentation
• Hand-held telecommunications
• Medical equipment
