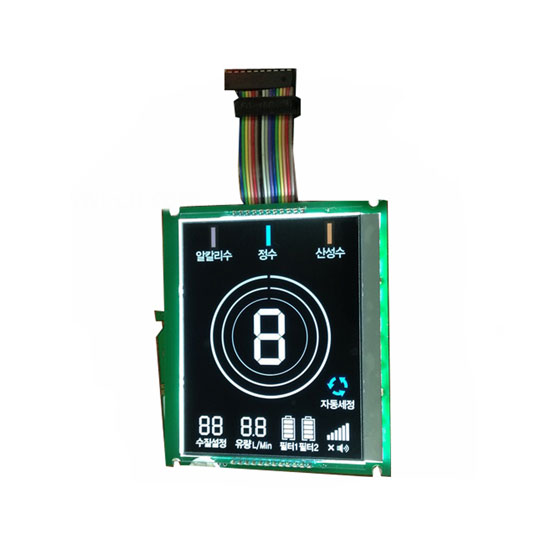

This is a customized segment LCD module with black film. It is engineered to deliver reliable performance with high stability. Made under strict QC, this item promises reliability.

• Structure: COB.
• LCD display: VA.
• Transmissive backlight: white.
• LCD display mode: TN, positive.
• Transflective viewing direction: 12 o'clock.
• Driving method: 1/4 duty, 1/3 bias.
• Backlight type and color: LED and white.
• Control/drive IC: PCF8576DU/DA/2.
• LCD connection: zebra.
• Mechanical data: outline: 99.00 x 85.00 x 13.7mm and VA: 85.00 x 65.0mm.
• Operating voltage: 4.8/5.0/5.2V.
• LCD VOP: 3.0V.
• Backlight VF: 3.0V.
• Backlight IF: 90/120mA.
• Temperature range: operating temperature: -20 to 70°C.
• Storage temperature: -30 to 80°C.
• Applications: water heater.
