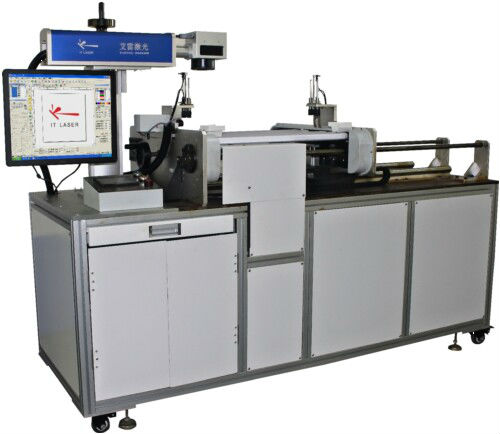

Semi-Automatic Tube Light Laser Marking Machine
Production Lead Time:
21 day(s)
Model No.:
IT-ZDF-EC-A
Brand:
IT Laser
Port:
Shenzhen
Type of Payment:
T/T
Minimum Order Quantity:
1 set
Customised:
Yes
Type:
Laser Engraving
Laser Type:
fiber laser
Description
Contact Supplier
Description

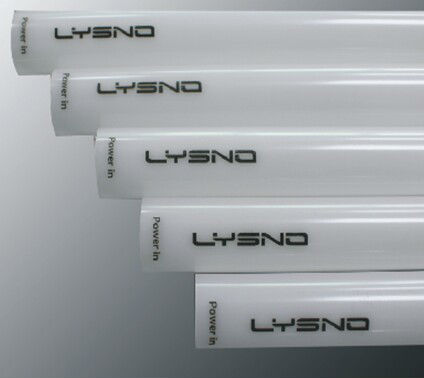

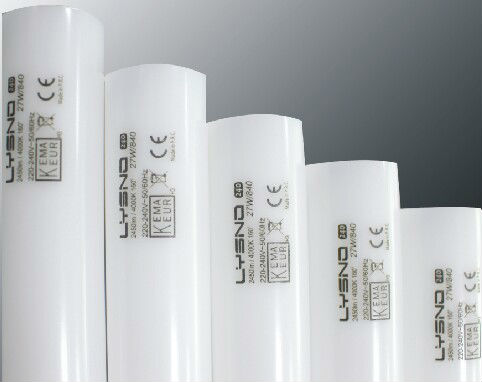

Applicable materials: Metal, Plastic, Alloy, ABC,etc.Special design for tube light.
Wavelength: 1064nm
Average Laser Power: 10W
Max. Laser Power: ≥50KW
Graphic format supported: PLT/AL/CDR/DXF/DWT/BMP/JPG/PS/ETC
Laser Repetition Frequency: 20~100KHz
Marking Size: 70×70~300×300 mm (optional)
Marking Depth: ≤1.2mm
Max. Marking Speed: 7000mm/s
Min. Marking Width: 0.025mm
Min. Character: 0.2mm
Power Consumption: ≤0.6KW
Power Supply: 220 V AC/50Hz
Size: 1900×700×1400（mm）
Production Capacity: about 800~1000 PCS/Hour
Wavelength: 1064nm
Average Laser Power: 10W
Max. Laser Power: ≥50KW
Graphic format supported: PLT/AL/CDR/DXF/DWT/BMP/JPG/PS/ETC
Laser Repetition Frequency: 20~100KHz
Marking Size: 70×70~300×300 mm (optional)
Marking Depth: ≤1.2mm
Max. Marking Speed: 7000mm/s
Min. Marking Width: 0.025mm
Min. Character: 0.2mm
Power Consumption: ≤0.6KW
Power Supply: 220 V AC/50Hz
Size: 1900×700×1400（mm）
Production Capacity: about 800~1000 PCS/Hour
