Semiconductor Heater HG 140 Series 15w,30w,45w,60w,75w,100w,150w
Share this page
Model No.:
HG 140
Brand:
stego / OEM/ neutral
Colour:
Black
Size:
70mmX60mmX(65mm~220mm)
Port:
Ningbo/Shagnhai
Type of Payment:
T/T, Western Union,MoneyGram,Paypal/Escrew
Minimum Order Quantity:
1
Customised:
Yes
Type:
Air Heater
Description
Contact Supplier
Description

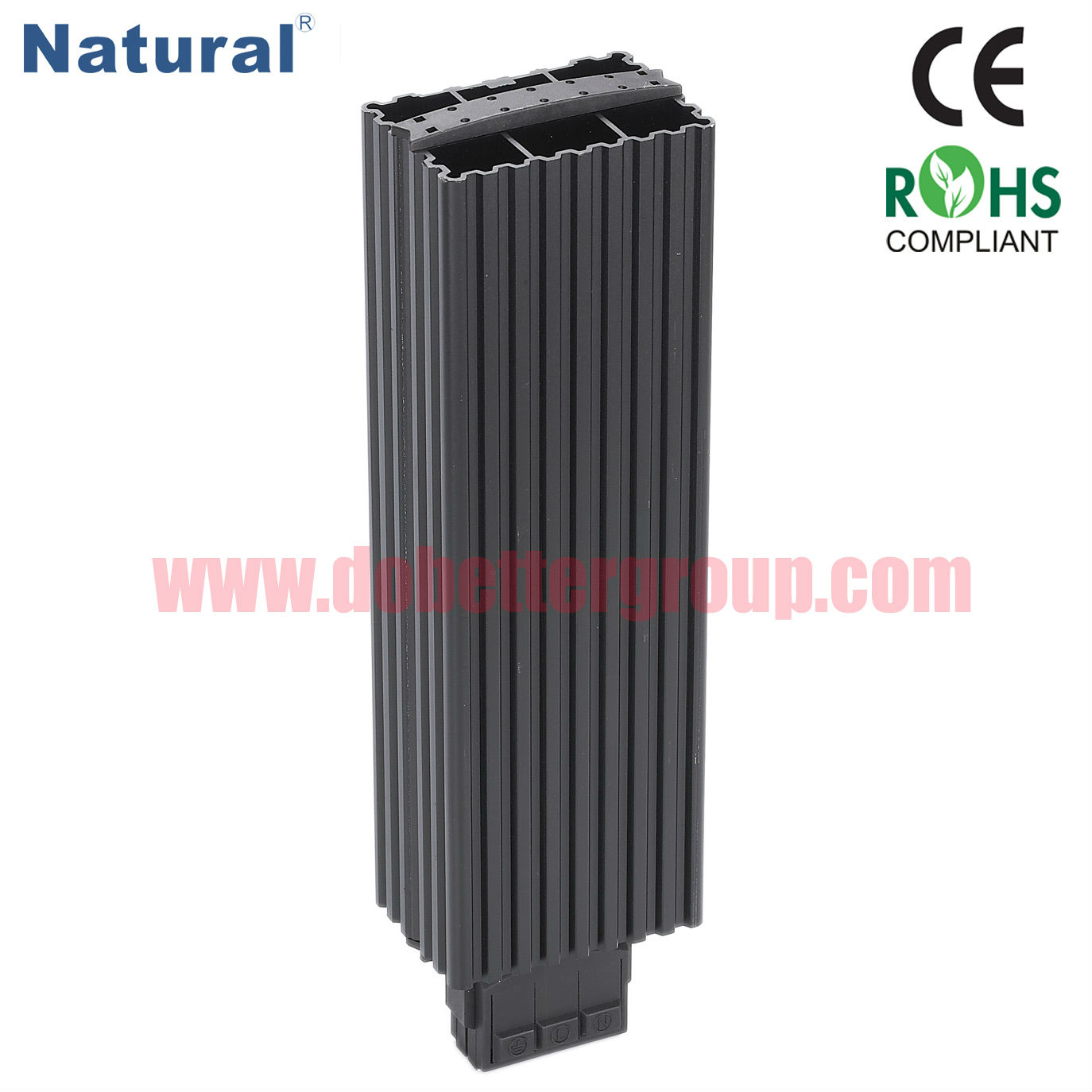

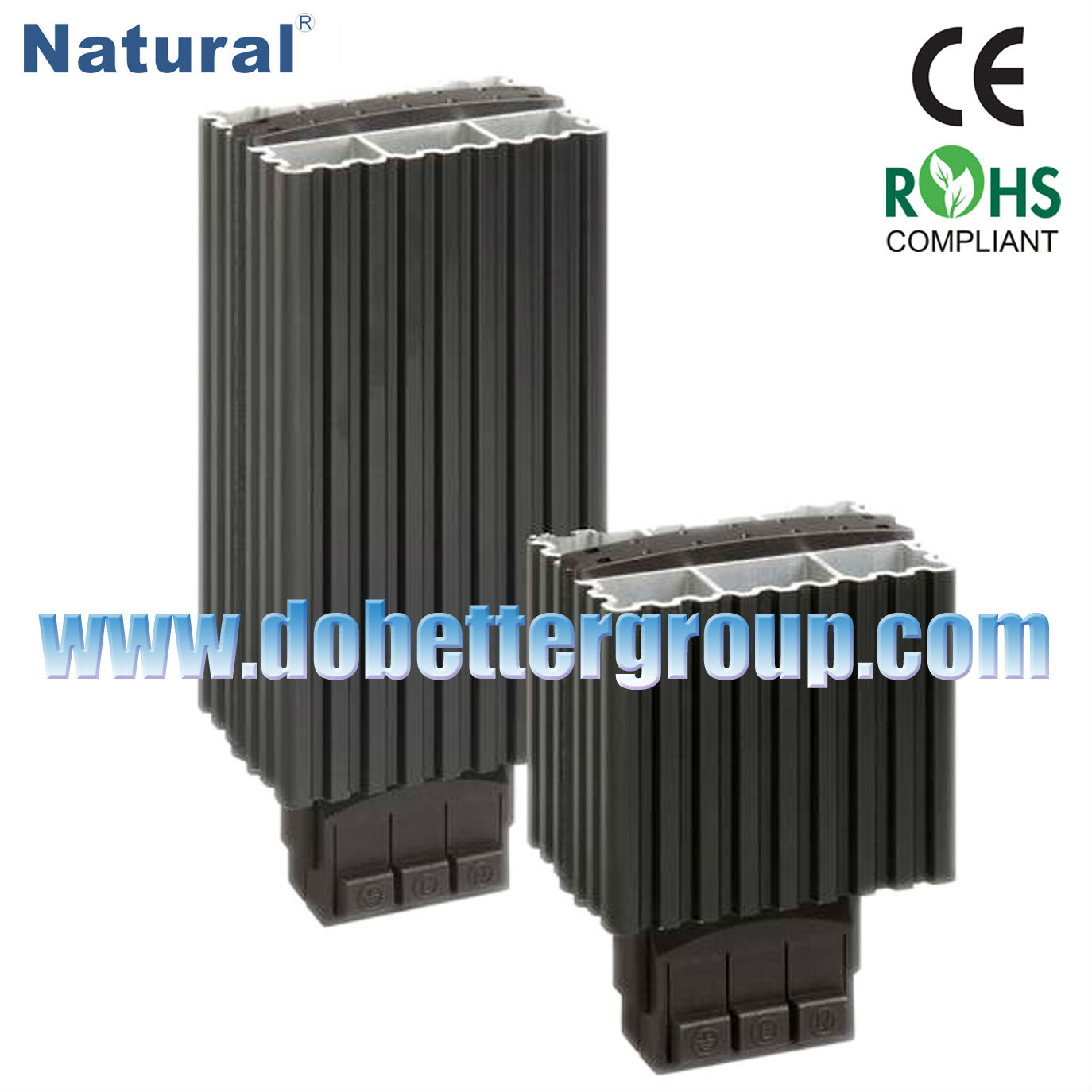

new ptc heater stego HG140 15W,30W,45W,60W,75W,100W,150W

features:
1. Pressure clamp connectors
2. Dynamic heating up
3. Wide voltage range
4. Temperature limiting
5.  Energy saving
6.  Clip fixing
7. Quick installation



These heaters are used in enclosures where damage from condensation must be prevented, or where the temperature may not fall below a minimum value. The aluminium profile heater body design has a chimney effect and distributes the heat evenly. The pressure clamp connectors save time and simplify installation.



Technical Data

Operating voltage 120-240V AC/DC* (min. 110V, max. 265V)
Heating element PTC resistor, self regulating and temperature limiting
Heater body extruded aluminium profile, anodised
Connection 3 pressure clamps for stranded wire 0.5-1.5mm2 (with wire end ferrule) and rigid wire 0.5-2.5mm2
Connection casing plastic according to UL94 V-0, black
Mounting clip for 35mm DIN rail, EN 50022
Fitting position vertical
Operating / Storage temperature -45 to +70°C (-49 to +158°F)
Protection type / Protection class IP20 / I (earthed)
Accessories Screw fixing.Art.No.09024.0-00(1 packing unit=2 piecs)
