DOLIGHT OPTOELECTRONICS TECHNOLOGY CO LTD
Please enter a valid keyword with 2 or more characters / numbers.
Sensor Panel Light Series
US $25.00 - US $60.00
Production Lead Time:
30 day(s)
Shipping Method:
BY SEA
Model No.:
DWS606036
Input Voltage:
AC200-240V, 50/60HZ
Power:
36W
LED Source:
SMD2835
Color Temp:
3000K/4000K/5700K
CRI:
Ra>80
Power Factor:
>0.9
IP Rate:
IP40
Optional:
0-10V dimming, Dali dimming, or traic dimming
MOQ:
300PCS
Certificate:
CE, RoHS, CB, SAA
Warranty Time:
5 Years
Payment Terms:
T/T
Supply Ability:
7000pcs per month
Description
Contact Supplier
Description

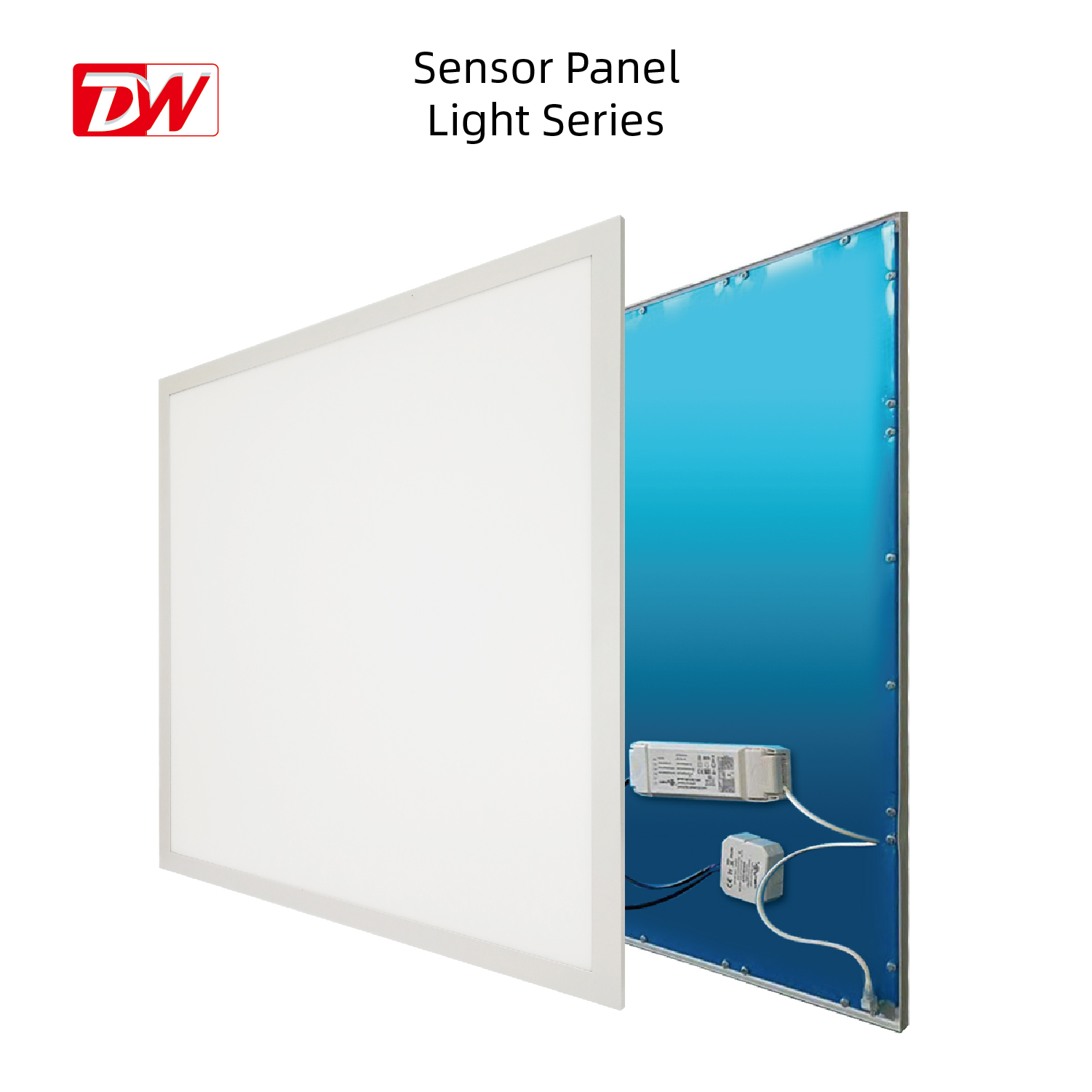

Sensor Panel Light Series
Dolight On/Off Sensor LED panel light, it’s designed to replace conventional Grid Panel Light with fluorescent tube fixtures. Our slim led panel has a dedicated driver and elegant appearance to make a space refined and smart, perfectly adapted to fashion or design needs.
◈ FEATURES
Built-in sensor or external sensor system;

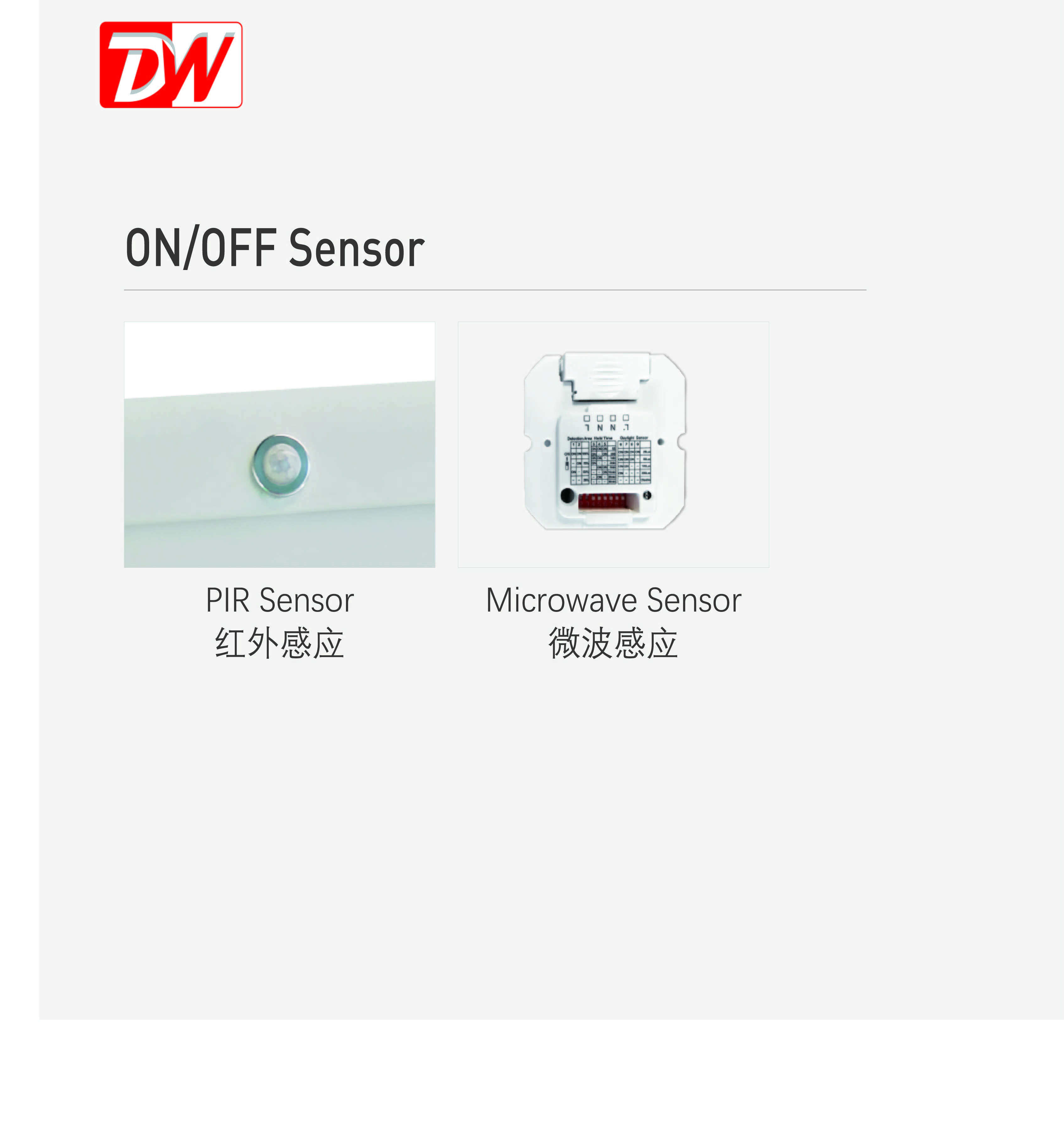

On/off sensor: Microwave sensor, PIR sensor Optional;

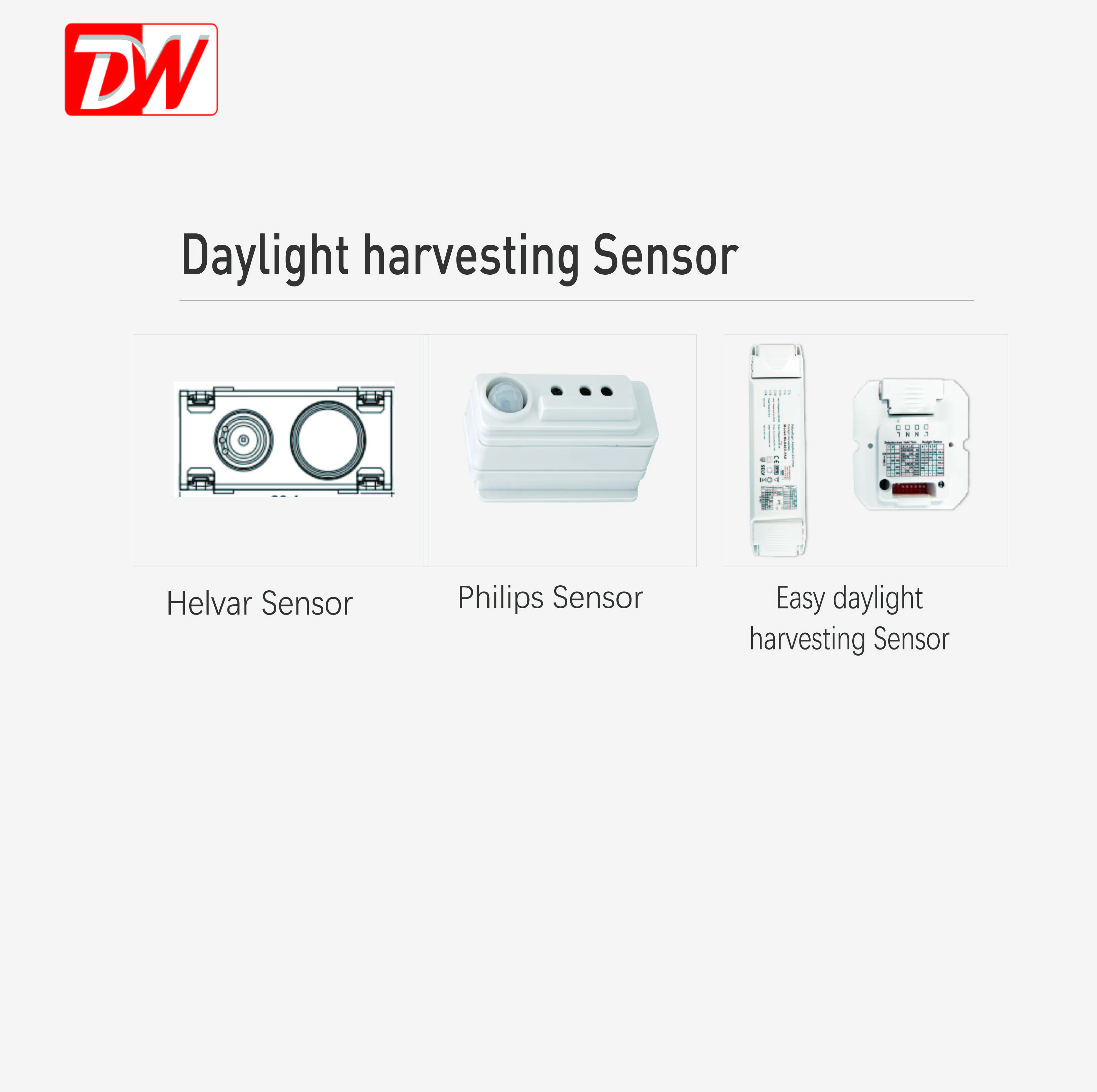

Day light harvesting sensor:
Domestic Microwave sensor,Helvar and PHILPS;
PIR sensor optional;
◈ ADVANTAGE
TUV Listed CE, CB, and RoHS, SAA,ISO9001;
Domestic sensor, Helvar and PHILIPS sensor optiona;
Super slim size with only 9mm thickness;
More accurate light distribution control.
◈ SPECIFICATION
Sensor LED Panel Light | ||
Photometric Parameters | ||
NO. | Project | Parameter |
1 | LED | High luminous flux SMD LED Samsung/Osram |
2 | Luminous Efficiency | 100 Lm/W |
3 | CCT | 3000K-5700K (warm white, natural white, cool white) |
4 | CRI | ≥80 |
5 | Beam Angle | 12° |
6 | LED Lifespan | ≥50000 Hours |
Electrical Parameters | ||
7 | Driver Input Voltage | AC220-240V /50-60Hz |
8 | OutputVoltage | DC30-40V |
9 | Power Supply Efficiency | ≥88% |
10 | Power Factor | ≥0.9 |
11 | Protection Class | Class II |
General Parameters | ||
12 | Rating IP | IP40 |
13 | Material | Aluminum + PMMA |
14 | Frame Finishing | White |

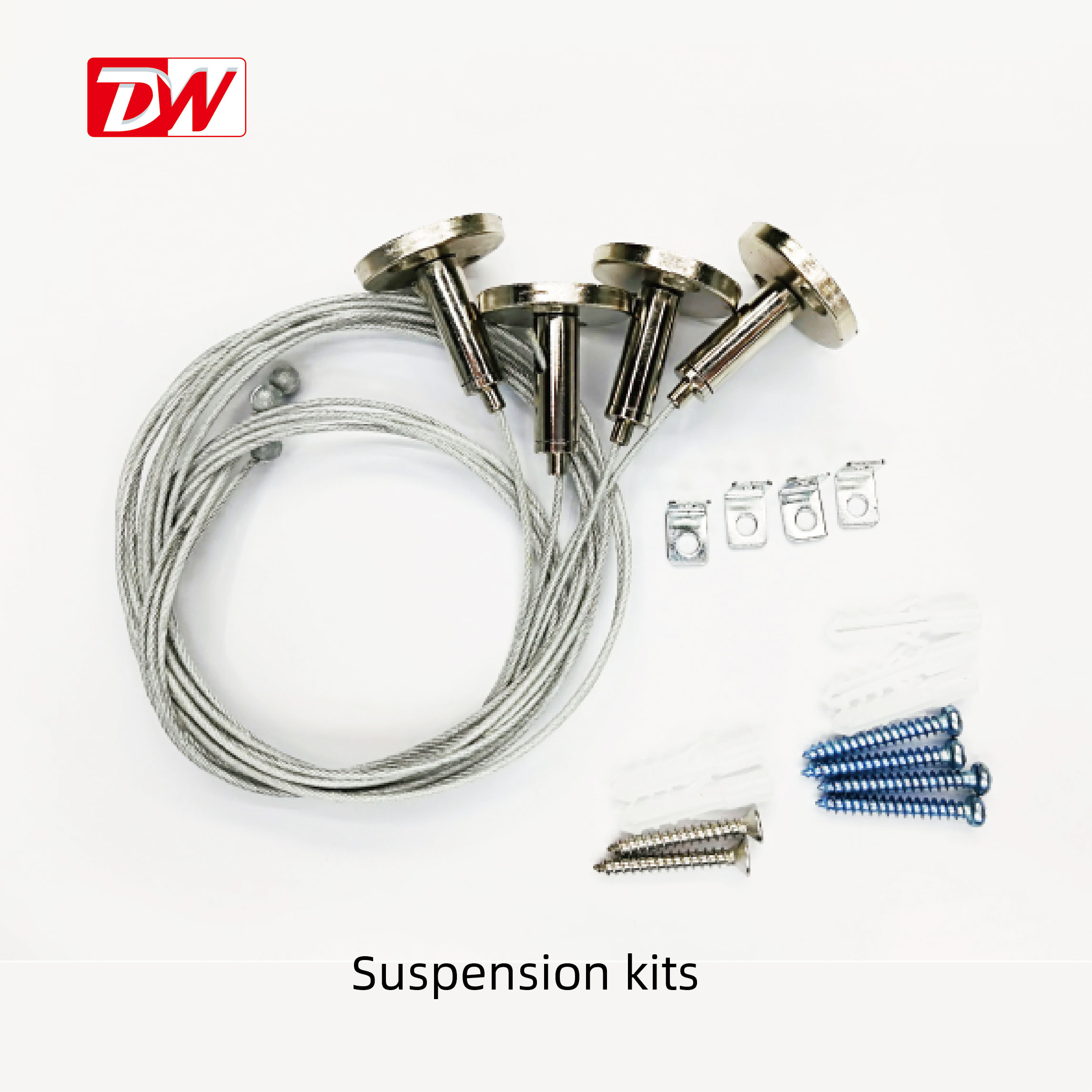

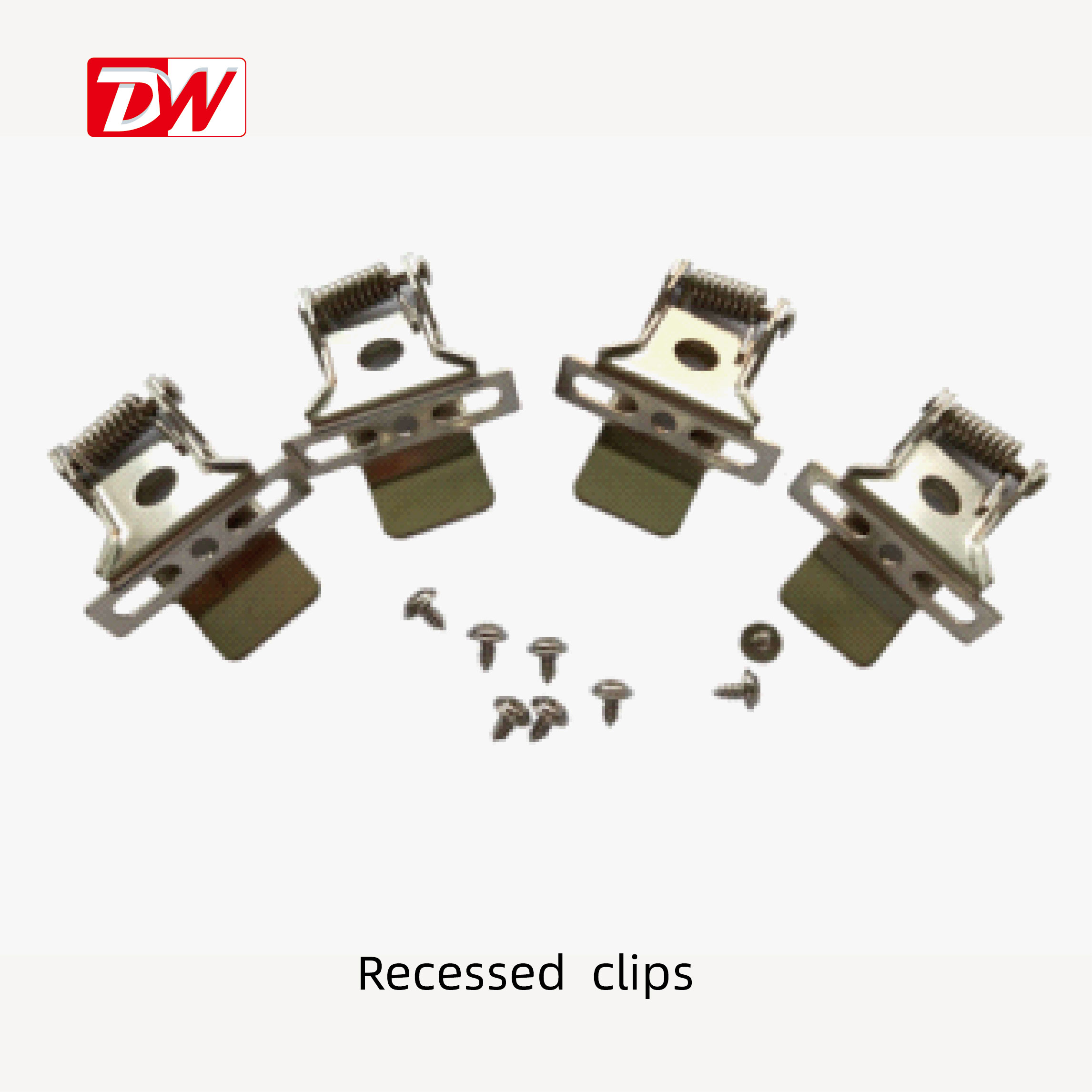

15 | Installation | Recessed/Pendant |
16 | Working Temperature | -20～+45℃ |
17 | Storing Temperature | -40～+60℃ |
18 | Working Humidity | 15%~90%RH |
◈ SIZE
Efficiency | Model No. | Wattage | Luminous flux | CRI | LED | Dimension |
ON/OFF sensor | DWS606036 | 36W | 3600lm | 80Ra | SMD2835 | 595x595x9mm |
DWS626236 | 36W | 3600lm | 80Ra | SMD2835 | 620x620x9mm | |
DWS3012036 | 36W | 3600lm | 80Ra | SMD2835 | 295x1195x9mm | |
ON/OFF daylight harvest sensor | DWS606036D | 36W | 3600lm | 80Ra | SMD2835 | 595x595x9mm |
DWS626236D | 36W | 3600lm | 80Ra | SMD2835 | 620x620x9mm | |
DWS3012036D | 36W | 3600lm | 80Ra | SMD2835 | 295x1195x9mm |

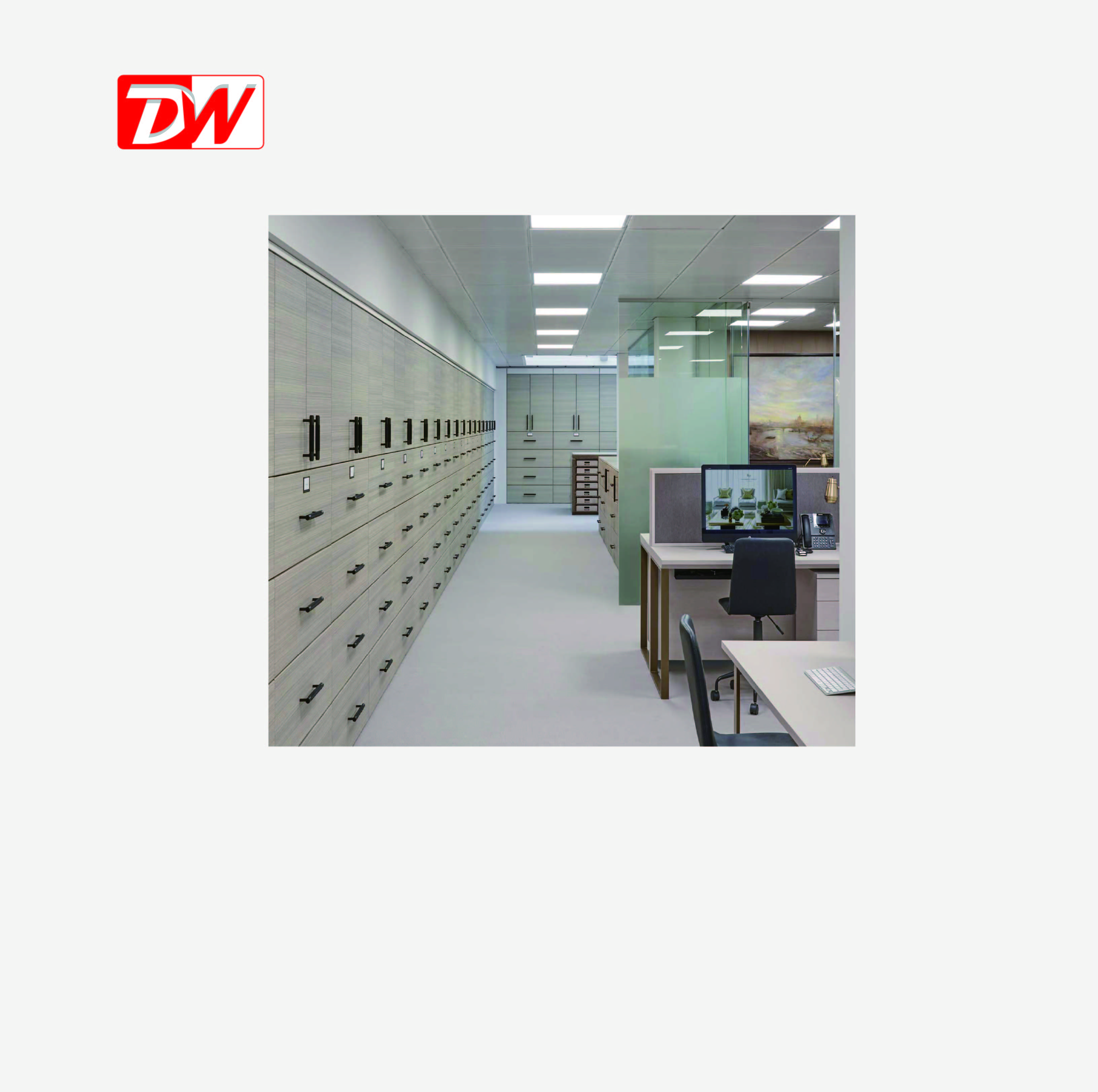

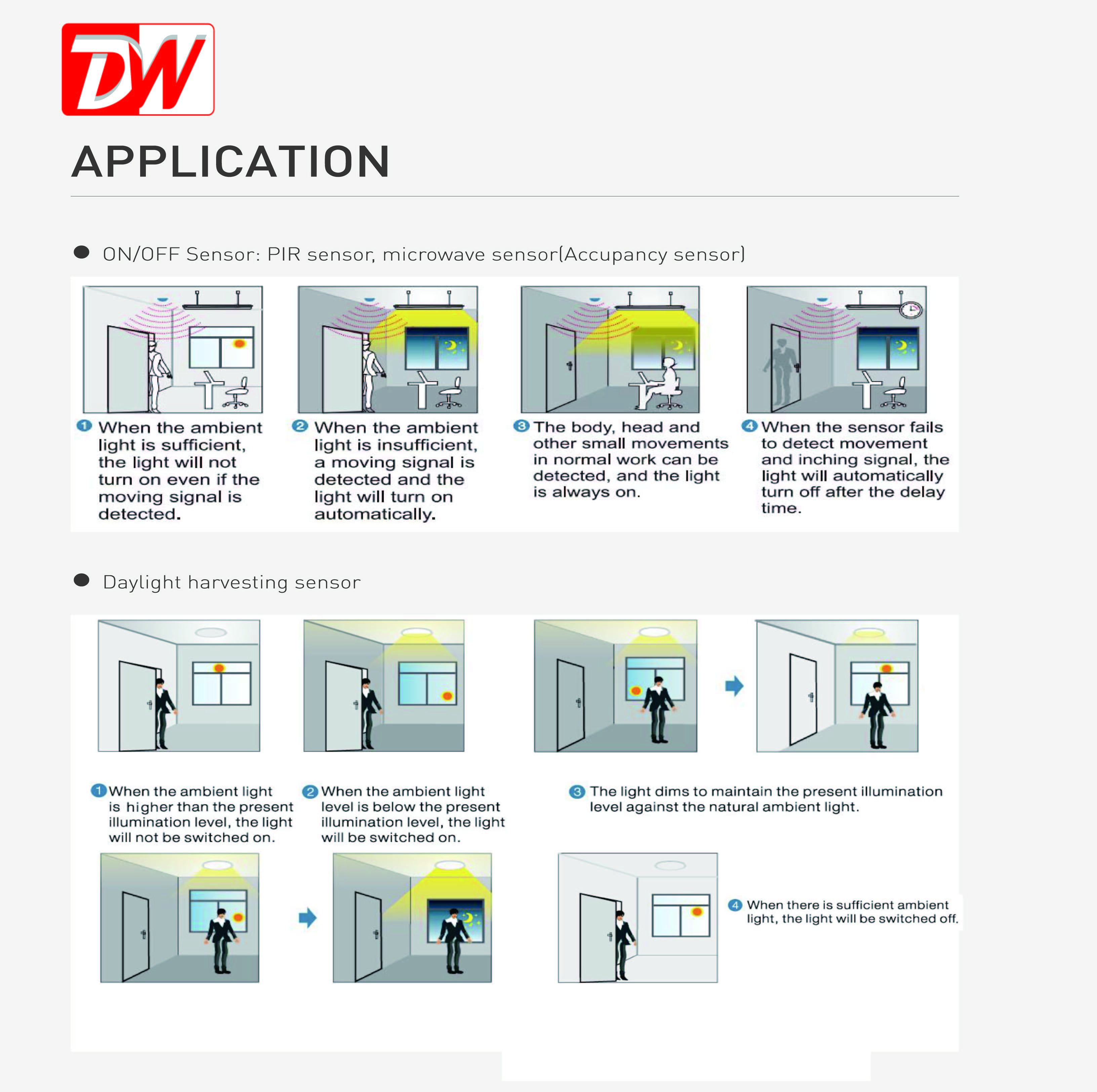

◈ APPLICATION
♦ Showrooms
♦ Boardrooms, offices, corridors
♦ Retail outlets
♦ Hospitals
♦ Hotels, motels
