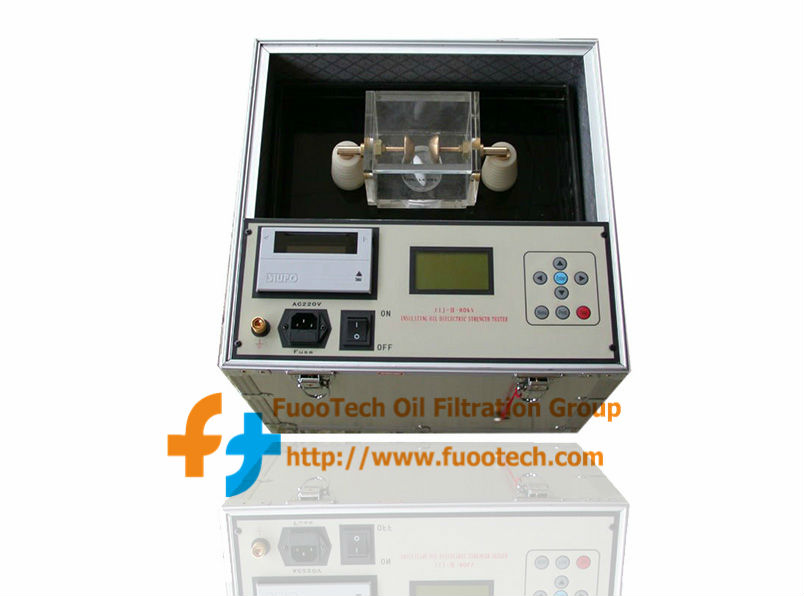

Series FOT Fully Automatic Transformer Oil BDV Tester is applied to test the insulating oil's dielectric strength (break-down voltage value), which is designed as per the requirement of IEC60156 Testing Method of Insulation Oil Medium Strength, which via proper programming, has got functions of auto boosting, step down, stirring, display and print out.  After breakdown of oil medium, HV break off will operate within 10 seconds to enable an auto isolation of control system partly; this effectively safeguards the personnel security and equipment safety.

Series FOT Fully Automatic Transformer Oil BDV Tester adopts industrial SCM to control, which is applied to integrate circuit, new model I/0 connection, particular testing and anti-jamming technology which largely improve the machine’s capacity.

Main features:

1. Simple operation, fully automatically (can be finished just press on key)
2. Menu controlled. Input data can be cleared
3. Can store 99 groups’ oil testing data which is convenient to reading and print. The testing data can keep 100 years under the condition of power off.
4. System time can go on running under power off;(The system time just for reference can not be the standard of timing)
5. Can upgrade software through RS232
6. High capacity of anti-jamming and high precision of testing.
7. Small volume, light which operated in the open air very conveniently.
8. The set shall be provided with smooth and continuous of output voltage between zero and maximum having no distortion of waveform.
9. Audio sound and visual signal will indicate at the instant of sample failure.

Technology and parameter data:

1. Power supply: AC220V +-10% , 50 HZ
2. Output voltage: 0 to 60KV, 80KV, 100KV
3. Capacity: 1.6KVA (for 60KV & 80KV), 2.0KVA (for 100 kV)
4. Speed of Voltage increase: about 2 kva/s
5. Voltage inspection accuracy: 3%
6. Dielectric strength sensitivity : <2KV
7. Wave form distortion : ≤ 3%
8. Time of dielectric strength: ≤ 10ms
9. Dimension & Weight:
   Before packed:  380 × 370 × 380 mm
   Net Weight:  40 KGS
   After packed:    480 × 470 × 490 mm
   Gross Weight:  50 KGS
