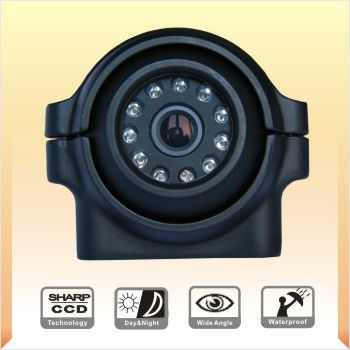

Side Camera
Model No.:
DF-8053
Brand:
VEISE
Type of Payment:
T/T
Minimum Order Quantity:
50
Description
Contact Supplier
Description
- Image pick-up device: 1/3" Sharp color CCD.
- Horizontal resolution: 420 TV lines.
- Number of pixels NTSC: 510 (H) x 492 (V), PAL: 500 (H) x 582 (V).
- Scanning system NTSC: 525 lines, 60 field/sec.
- PAL: 625 lines 50 field/sec.
- Sync system: internal synchronization.
- Gamma characteristic: 0.45.
- S/N ratio: ≥48dB (AGC off).
- Electronic shutter time on: NTSC 1/60~1/100,000sec, PAL 1/50~1/100,000sec.
- Off: NTSC 1/60sec, PAL 1/50sec.
- Usable illumination 0 lux with built-in IR LED.
- IR project distance 10 meters (10 unit infrared LED).
- IR status under 10 lux by CDS.
- IR power on CDS auto control.
- Lens board lens 2.9mm/F2.0 (optional).
- Video output: 1.0Vp-p 75ohm.
- Gain control (AGC): auto.
- Water resistance: IP66.
- Operation temperature: -20℃～+70℃ RH 95% max.
- Storage temperature: -40℃～+80℃ RH 95% max.
- Power supply: DC12V±10% 400mA.
- Dimension: 5 (L) x 63 (W) x 74 (H) mm.
- Weight: 250g.
