Signal Generator
Model No.:
GA1484A, GA1484B
Brand:
GRATTEN
Colour:
Black, White
Port:
Shenzhen, China
Type of Payment:
T/T
Minimum Order Quantity:
1 piece
Description
Contact Supplier
Description

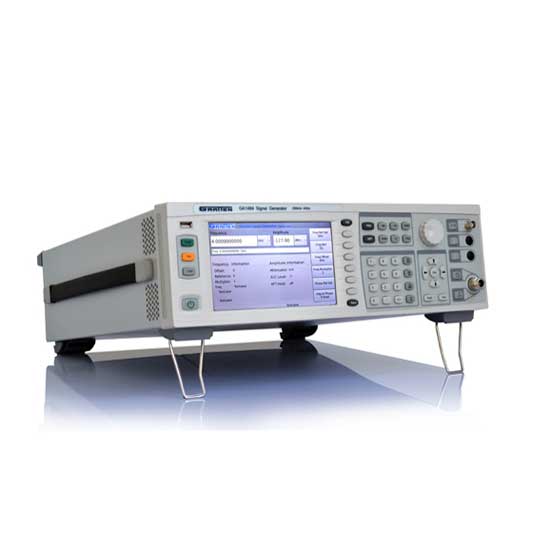

Featured is a series of signal generators designed and manufactured to create signals for testing devices. With a frequency range that extends from 250KHz to 4GHz, this signal generator will meet your different requirements easily. This signal generator is ideal for labs and classrooms.
- High-end signal generator designed and manufactured to create signals capable of testing your very best devices and designs.
- Offers industry-leading performance, features and low cost of ownership.
- Generate the essential signals for parametric and functional testing of components and receivers.
- Frequency ranges extend from 250kHz up to 4GHz.
- The performance of this signal generator can be called the benchmark of similar products in the market.
- Can meet your demands for design and manufacturing.
- An ideal instrument for educational labs and high-end R&D labs.
- GA1484A range: 250kHz-4.0GHz.
- GA1484A superior phase noise: <-95dBc/Hz at 20kHz (carrier wave 1GHz).
- GA1484A output range: -127-+13dBm (option and standard: -17-+13dBm).
- GA1484A modulation: AM, FM, PM and Pulse (option).
- GA1484B range: 250kHz-4.0GHz.
- GA1484B superior phase noise: <-115dBc/Hz at 20KHz (carrier wave 1GHz).
- GA1484B output range: -127-+13dBm (option and standard: -17-+13dBm).
- GA1484B modulation: AM, FMP, PM and Pulse (option).
- Certification: CE.
