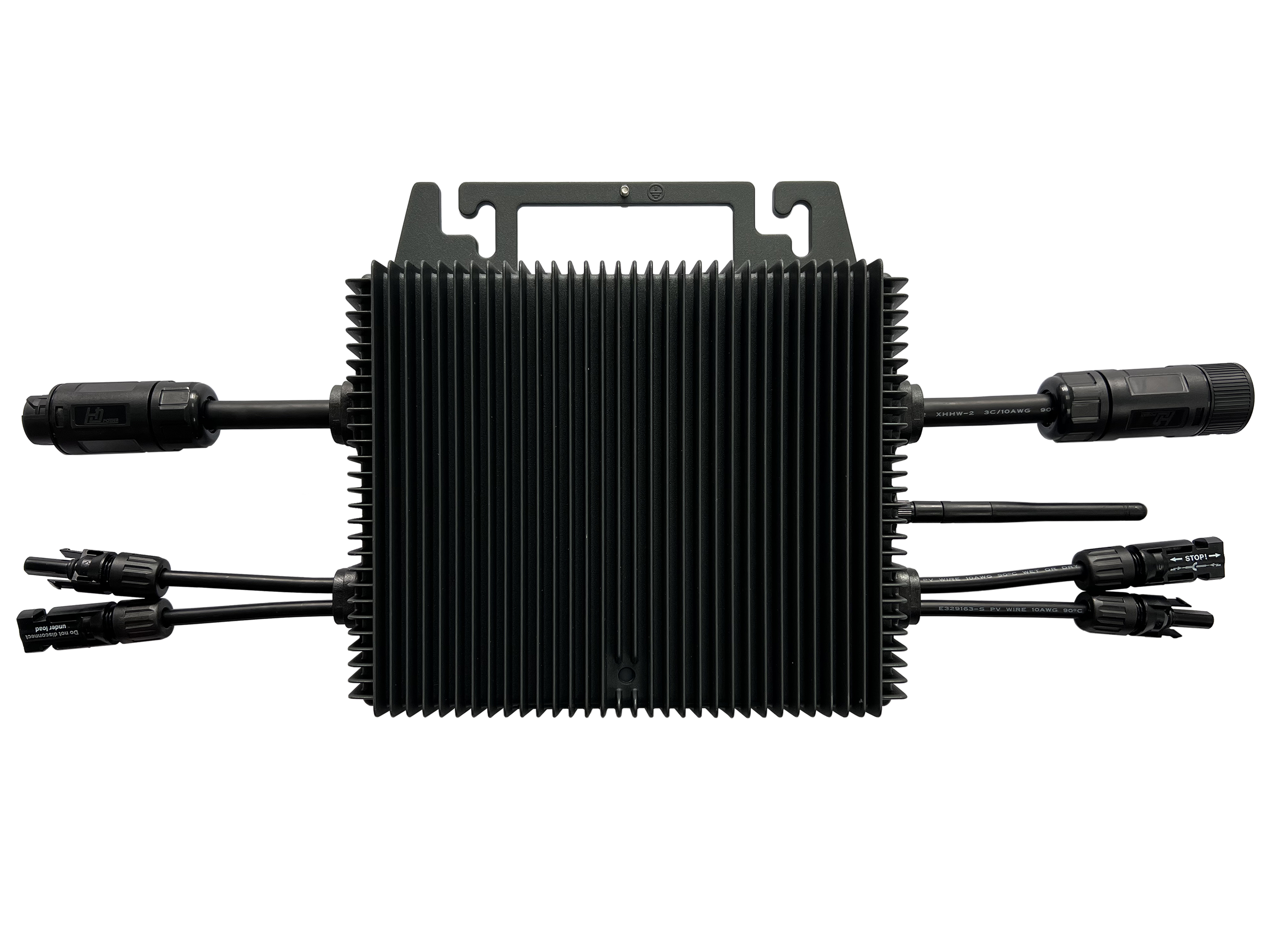

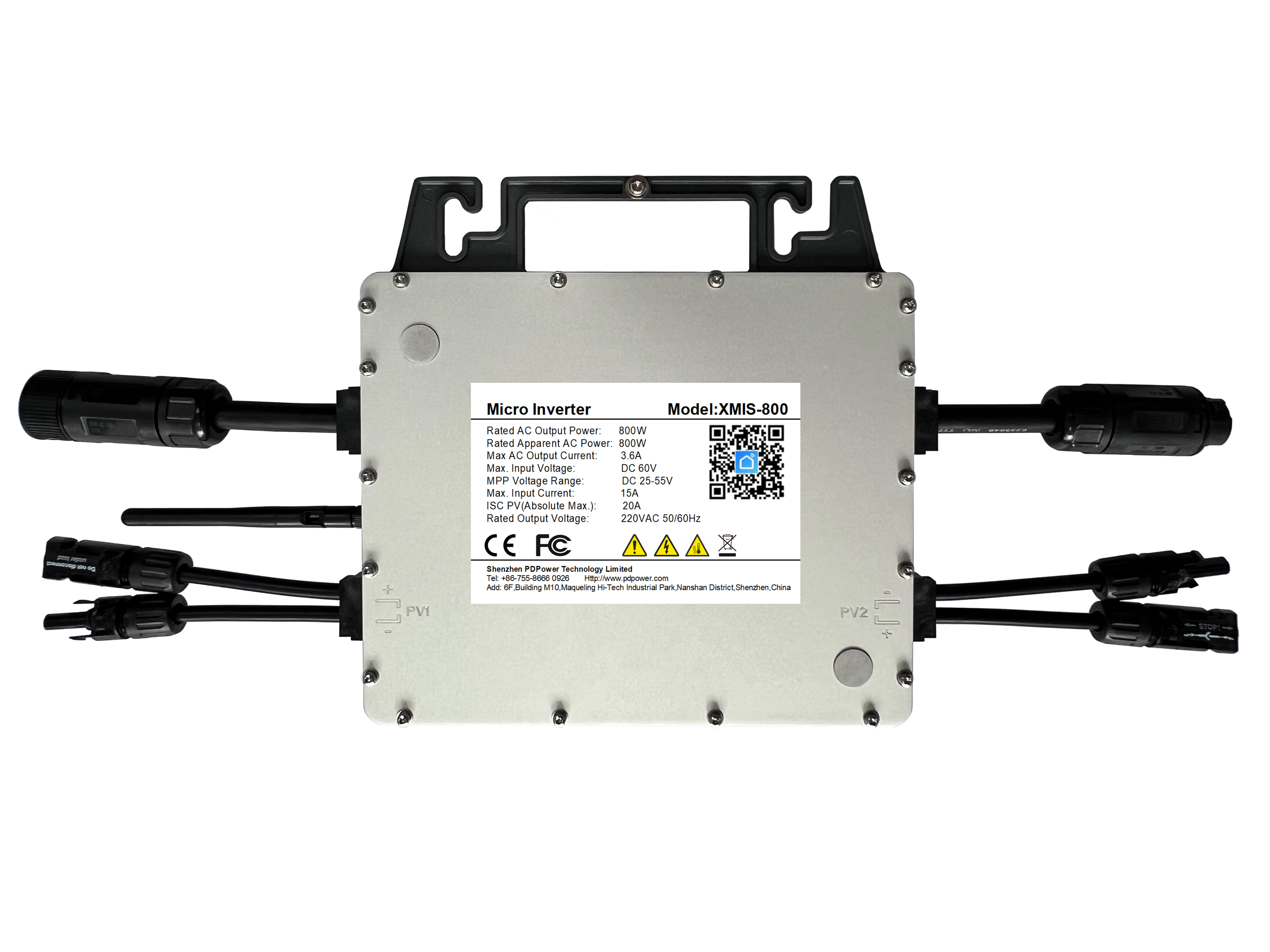

Single Bdm 800w Micro Solar Inverter PV System 600 Watt 800W with 2 MPPT For Home Use
US $1.00 - US $2.00
Production Lead Time:
1 day(s)
Shipping Method:
FOB
MODEL:
XMIS-800
Recommended PV Module Power Range:
360-550W(2pcs)
Max. Input Voltage:
60V
Max. Input Current:
15/15A
Rated Power:
800W
Rated Grid Voltage Frequency:
220VAC 50/60Hz
Max. Efficiency:
96.5%
MPPT Efficiency:
>99.9%
Dimensions(W*H*L):
230*190*46.5mm
Weight:
3.0kg
DC Connection Type:
MC4
Cooling Method:
Natural Cooling
Description
Contact Supplier
Description
MODEL | XMIS-800 | |
DC INPUT | Recommended PV Module Power Range | 360-550W(2pcs) |
Max. Input Voltage | 60V | |
MPP Voltage Range | 25V | |
Start Up Voltage | 25-55V | |
Max. Input Current | 15/15A | |
Max DC Short Circuit Current | 20/20A | |
AC OUTPUT | Rated Power | 800W |
Rated Grid Voltage | 220VAC | |
Grid Connection | L/N/PE | |
Rated Power Frequency | 50/60Hz | |
Max. Output Current | 3.6A | |
Power Factor | >0.99 | |
THDi @ Rated Power | <3% | |
Max. Units Per Branch | 5 | |
EFFICIENCY | Max. Efficiency | 96.5% |
MPPT Efficiency | >99.9% | |
PROTECTION FUNCTION | Anti-islanding Protection | Integrated |
Input Reverse Polarity Protection | Integrated | |
Output Over Current Protection | Integrated | |
Output Short Circuit Protection | Integrated | |
Over Voltage Protection | II(DC), III(AC) | |
GENERAL DATA | Dimensions(W*H*L) | 230*190*46.5mm |
Weight | 3.0kg | |
Noise Emission (Typical) | 20dB(A) | |
User Interface | LED | |
DC Connection Type | MC4 | |
AC Connection Type | Plug-in Connector | |
Communication | Wi-Fi | |
Cooling Method | Natural Cooling | |
Operating Ambient Temperature | -40~+65°C | |
Relative Humidity | 0~100% | |
Max. Operating Altitude | 3000(>3000 Derating) | |
Protection Class (IEC 60529) | IP67 | |
Climatic Category (IEC 60721-3-4) | 4K4H | |
Topology | High Frequency Isolated | |
Night Consumption | <50mW | |
