• Model: AJS22D9H10G-TAPE
• Diameter: 22.4mm
• Height: 9.63
• Angle: 10°
• Material: PC+PMMA
• Transmittance: >93%
• LED Applications: 3535
• Lighting applications: wall washer light, landscaping light, Architecture lighting

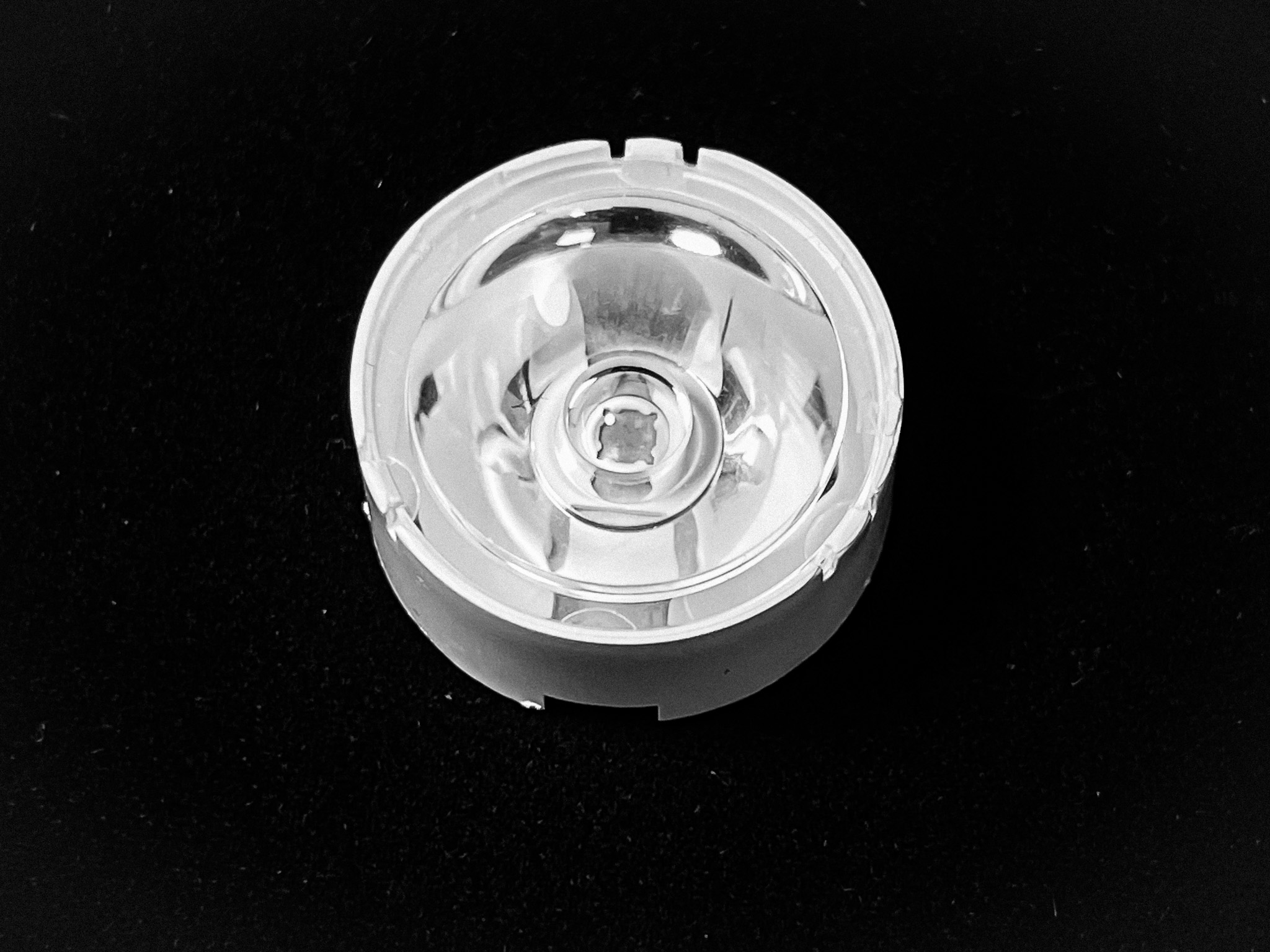

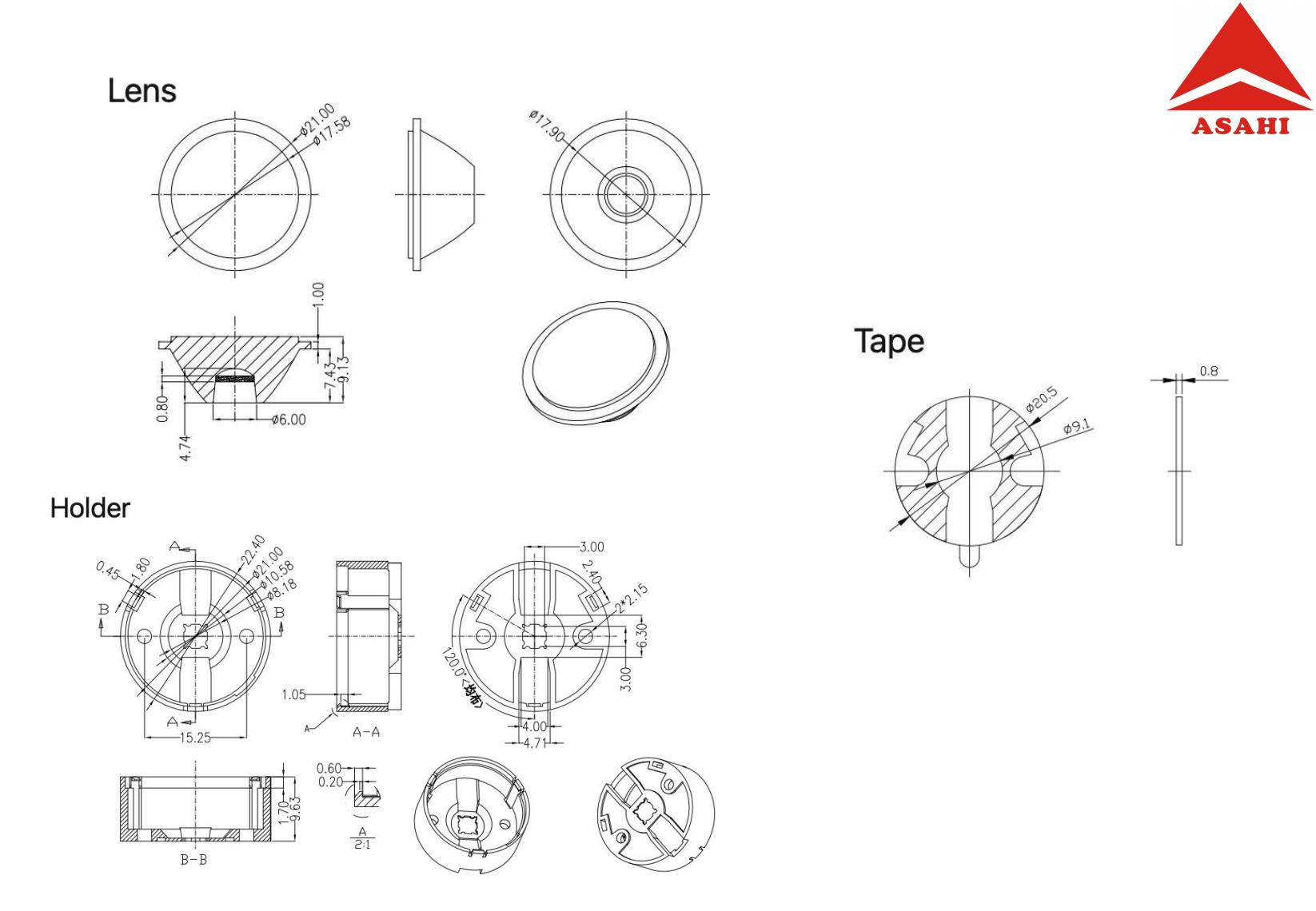

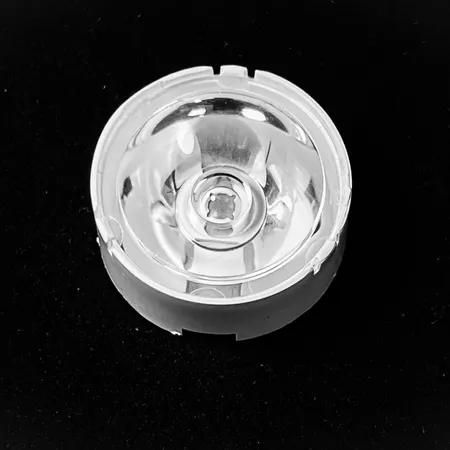

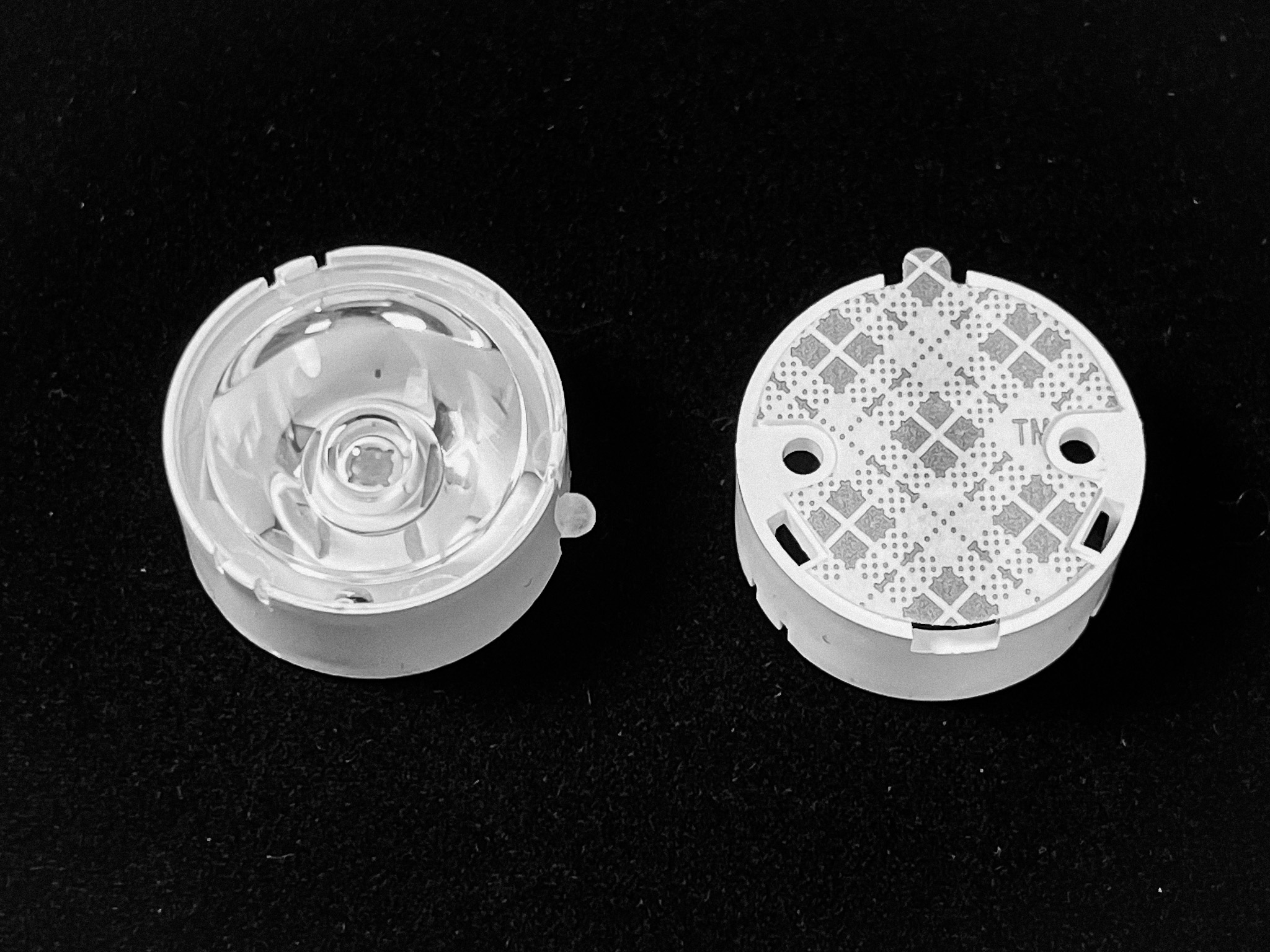

Single lens with holder 22mm*9.63mm is available with Tape assembly

The Narrow height is specially customized for narrow linear wall washer lighting modules.

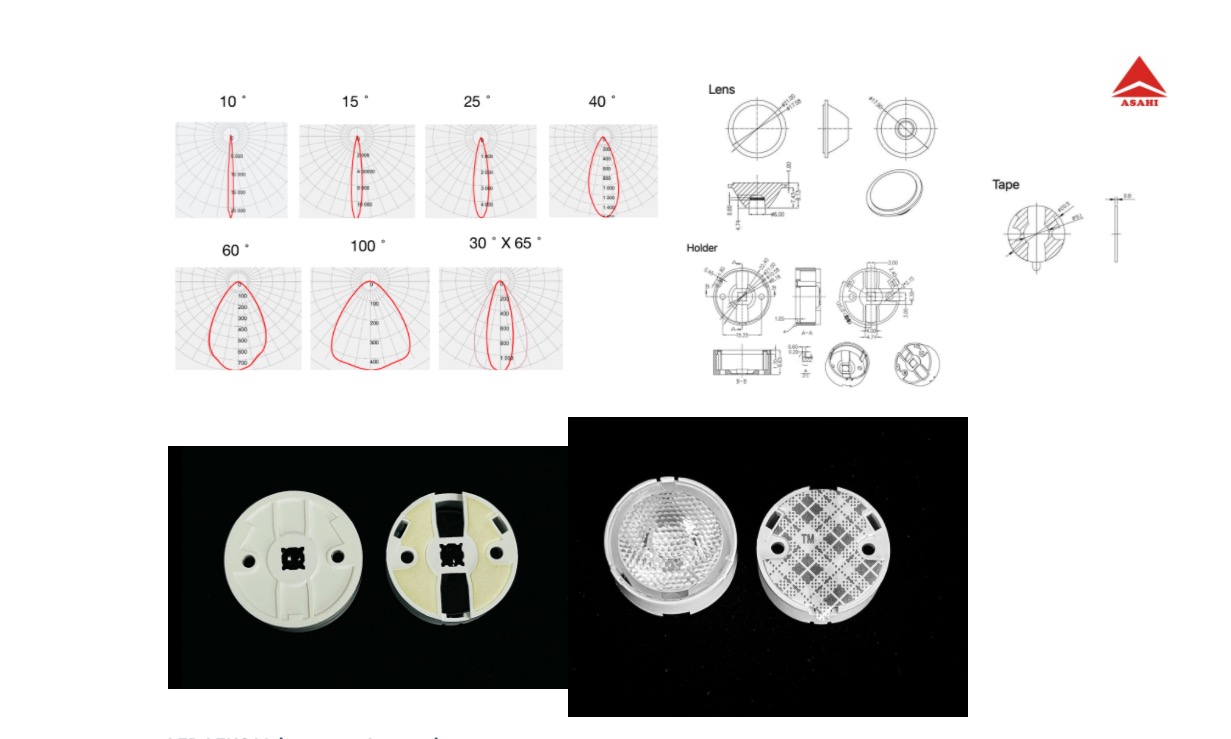

The beam angle range is very complete to meet the different lighting application

LED LENS Maintenance Instruction

1) If necessary, clean lenses with mild soap, water, and softening cloth.
2) Never use any industrial solvent to clean lens, such as cleaning Solvent, Alcohol Sulfuric acid, Ammonia, Urea, Mineral oil, Petrol
3) The lens operating Temperature range -40°to+120°C
4) Alternatively the following environment is recommended: Storage temperature: -40°C to +70°C, Humidity:30% to 95% HR mar.
5) The lens has concentrated function, and it’s made from transparent material, The functions will be affected once they were polluted, so please do not open the packages until you use them, in case of dust and other pollution.
6) Please handle or install lens with wearing gloves, skin oils may damage lens optical characteristic.
