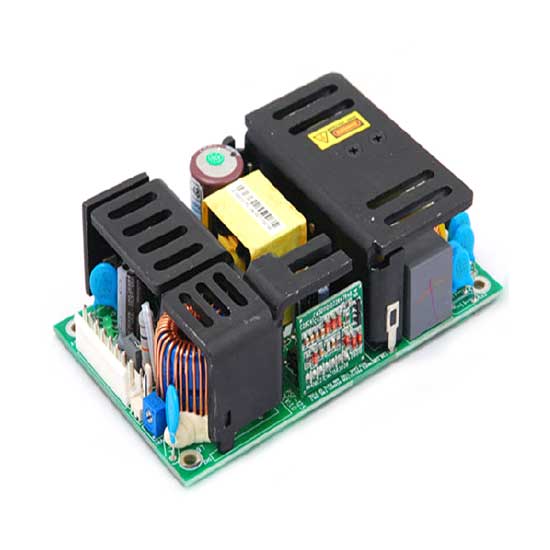

Single Output Switching Power Supply
Model No.:
LPFS-U151S24
Brand:
POWERPF
Size:
170 x 110 x 40mm
Description
Contact Supplier
Description
This is a switching power supply with a single output type. It is meticulously designed to offer high efficiency and high reliability with a long life time. The short circuit protection, over load protection, over voltage protection and over temperature protection ensure its extra safe operation.
- Output type: single output.
- Input voltage (V): 90-264VAC.
- Input current (A): 2A.
- Max efficiency: 88% type (230V AC full load).
- Power factor: ＞0.95.
- Output voltage (V): +24V DC.
- Output current (A): 6.3A.
- Rated power (W): 151.2W.
- Ripple/noise (mVp-p): 240mVp-p.
- Working temperature (℃): -20-60℃ (refer derating curve).
- Withstand voltage (VAC): I/P-O/P: 3KVAC, I/P-FG: 1.5KVAC, OP-FG: 0.5KVAC/1minute.
- Safety standard: EN/UL60950-1, GB4943.
- EMC standard: EN55022 Class B, EN61000-4-2, 3, 4, 5, 6, 8, 11 GB17626.5 level3.
- Over voltage protection: 115-135%.
- Rated output voltage.
- Over current protection: N/A.
- Over load protection: 105-150% hiccup mode, auto recovery.
- Short circuit protection: latched.
- Over temperature protection: auto reboot MTBF:≥120K hours 25℃.
- Universal AC input/full range.
- Built-in active PFC function.
- PF: 0.95.
- Cooling by free air convection.
- All using 105℃ long life electrolytic capacitors.
- 100% full load burn-in test.
- LED indicator for power on.
- High power density: 8.3W/in3.
- Compact size.
- 3 years warranty.
