MODEL

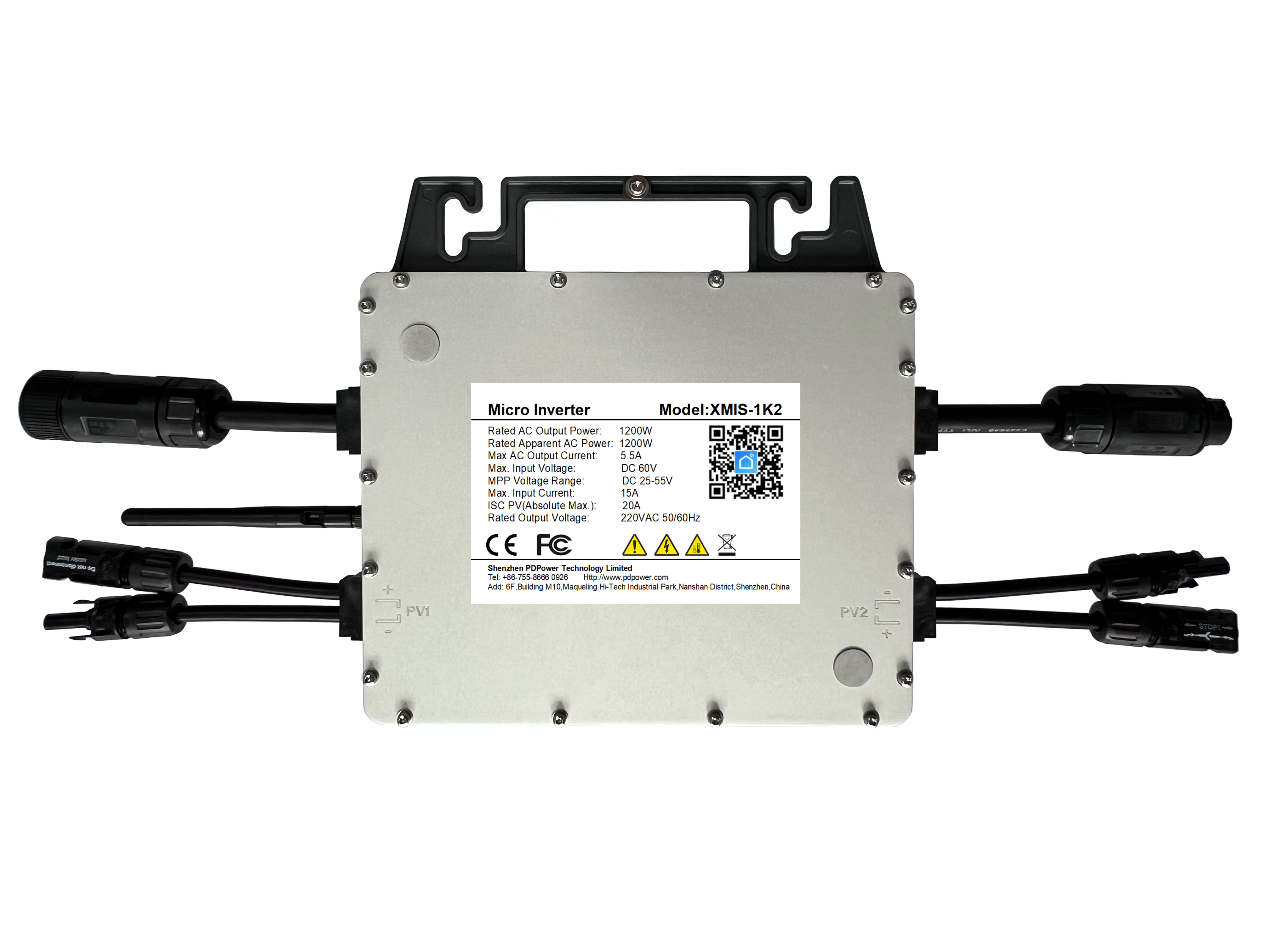

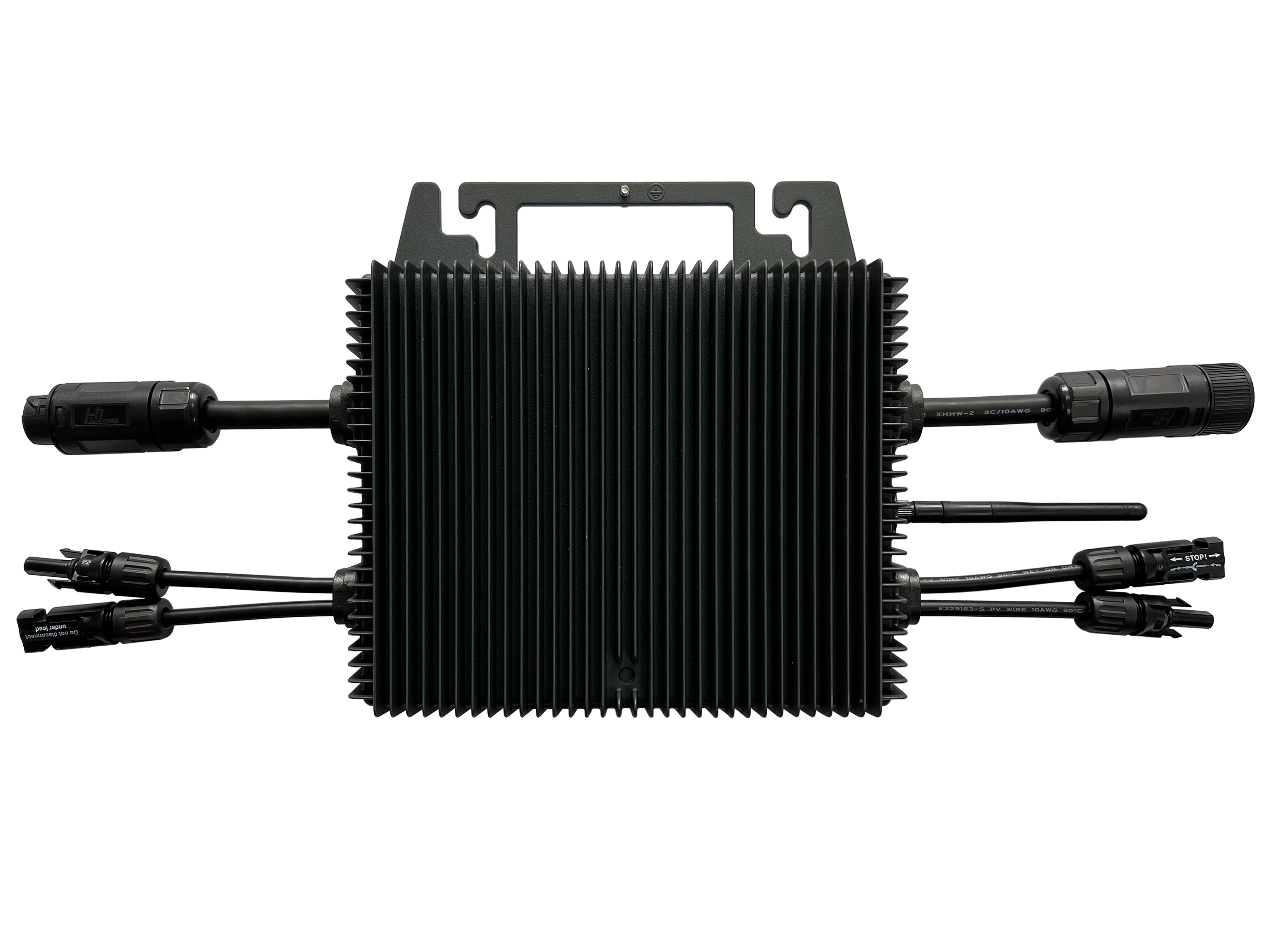

XMIS-1K2

DC INPUT

Recommended PV Module Power Range

360-550W(2pcs)

Max. Input Voltage

60V

MPP Voltage Range

25V

Start Up Voltage

25-55V

Max. Input Current

15/15A

Max DC Short Circuit Current

20/20A

AC OUTPUT

Rated Power

1200W

Rated Grid Voltage

220VAC

Grid Connection

L/N/PE

Rated Power Frequency

50/60Hz

Max. Output Current

5.5A

Power Factor

>0.99

THDi @ Rated Power

<3%

Max. Units Per Branch

5

EFFICIENCY

Max. Efficiency

96.5%

MPPT Efficiency

>99.9%

PROTECTION FUNCTION

Anti-islanding Protection

Integrated

Input Reverse Polarity Protection

Integrated

Output Over Current Protection

Integrated

Output Short Circuit Protection

Integrated

Over Voltage Protection

II(DC), III(AC)

GENERAL DATA

Dimensions(W*H*L)

230*190*46.5mm

Weight

4.0kg

Noise Emission (Typical)

20dB(A)

User Interface

LED

DC Connection Type

MC4

AC Connection Type

Plug-in Connector

Communication

Wi-Fi

Cooling Method

Natural Cooling

Operating Ambient Temperature

-40~+65°C

Relative Humidity

0~100%

Max. Operating Altitude

3000(>3000 Derating)

Protection Class (IEC 60529)

IP67

Climatic Category (IEC 60721-3-4)

4K4H

Topology

High Frequency Isolated

Night Consumption

<50mW
