Single-sided, Double Sided, Multi-layer FPCs | Parts, Components & Electrical Supplies

FLEX PLUS (XIAMEN) CO., LTD

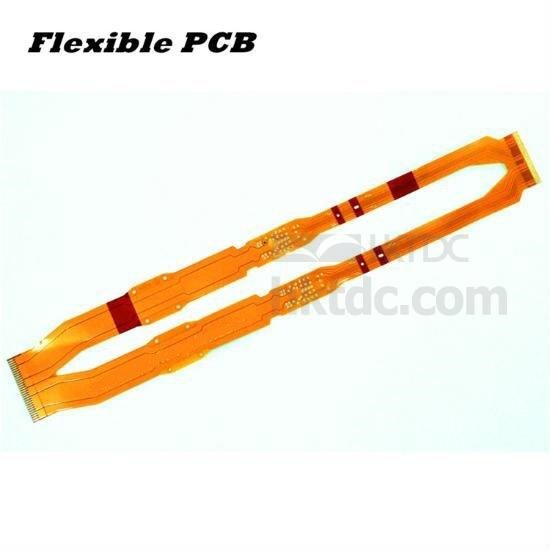

Single-sided, Double Sided, Multi-layer FPCs

Production Lead Time:

15 day(s)

Model No.:

AW13022

Brand:

Flex Plus

Colour:

yellow

Size:

10x60mm

Package:

Yes

Customised:

Yes

Board Thickness:

0.13mm

Min. Line Spacing:

0.075mm

Min. Line Width:

0.075mm

Base Material:

1mil

Copper Thickness:

1mil

Min. Hole Size:

0.1mm

Surface Finishing:

Immersion Gold/tin, Gold/tin

Through Hole Type:

Pin Tthrough Hole PCB

Description

Contact Supplier

Number of Layers:Double side Base
Material:FR-4, FR-4/aluminum/ceramic/cem-3/FR-1
Copper Thickness:0.25 Oz -12 Oz
Board Thickness:0.005"-0.250"
Min. Hole Size:0.2mm
Min. Line Width:0.1mm
Min. Line Spacing:0.1mm
Surface Finishing:HASL/enig/OSP/immersion silver /gold finger, HASL Lead Free/OSP/Soft Gold/Hard
Gold Standards: IPC Class 2, Class 3
Application:Electronics Certificate: ISO/UL/RoHS/TS16949
Testing Service:E-test or fly-probe according to order quantity
PCB Mask: Green/blue/black/red/yellow/white
Controlled Impedance Tolerance:Yes or no according to the gerber file
