Skylight frameless led panel light 600x600mm for office lighting
LM-WP-66-40-sky,one of the latest product designed by Shenzhen Lumin Lighting Co., Ltd, is a product for customers who want to enjoy blue sky indoors.

Features

1. high-end design,elegant appearance and comfortable light

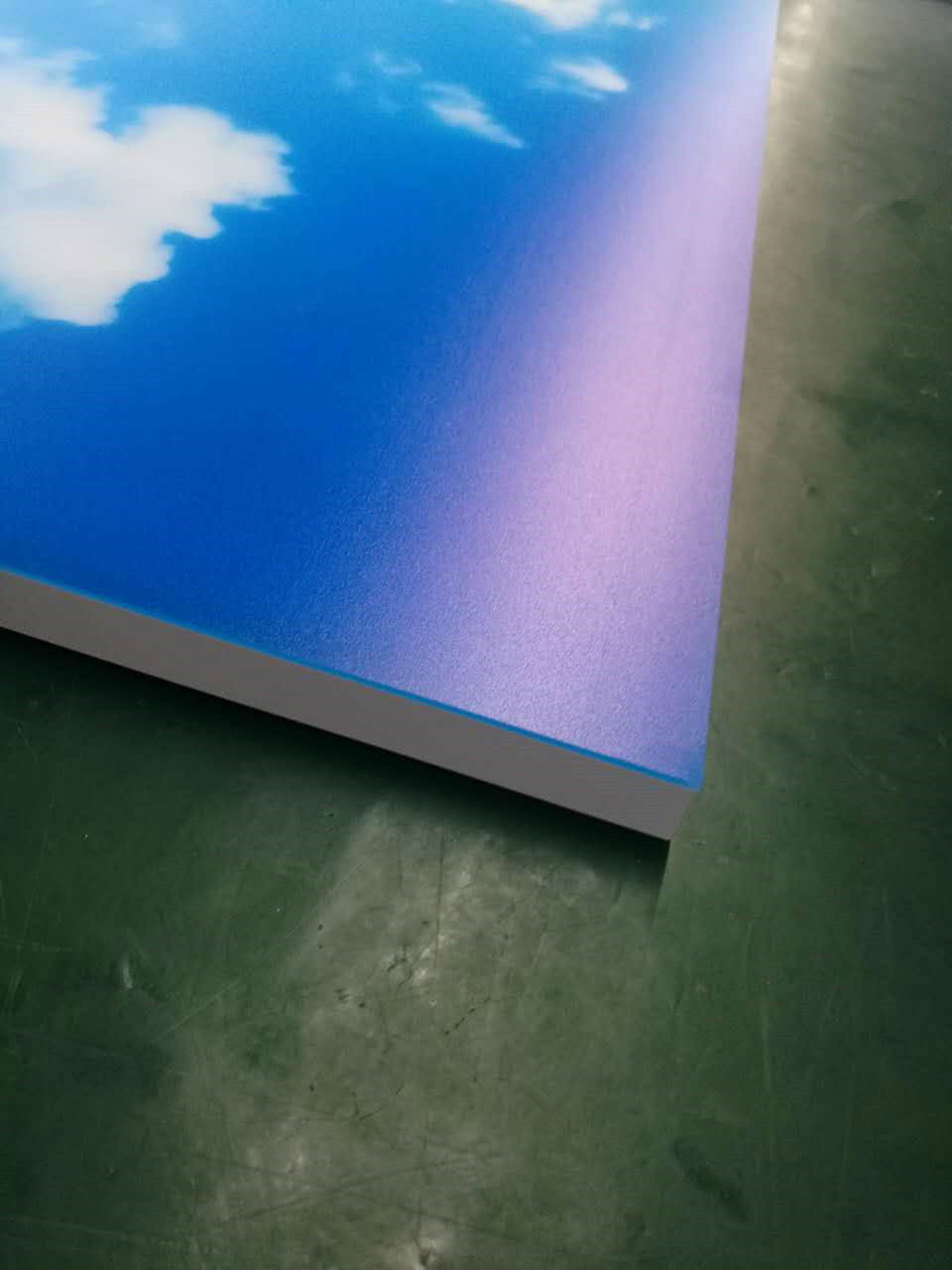

2. 18mm thickness, no frame at the surface
3. 3mm Chimei PMMA LGP, 5mm Chimei PMMA diffuser
4. high efficiency and super energy saving, 80% than fluorescent tube
5. long lifespan,low optical delay, more than 50,000hrs
6. different installations: surface mounted or suspending

Application

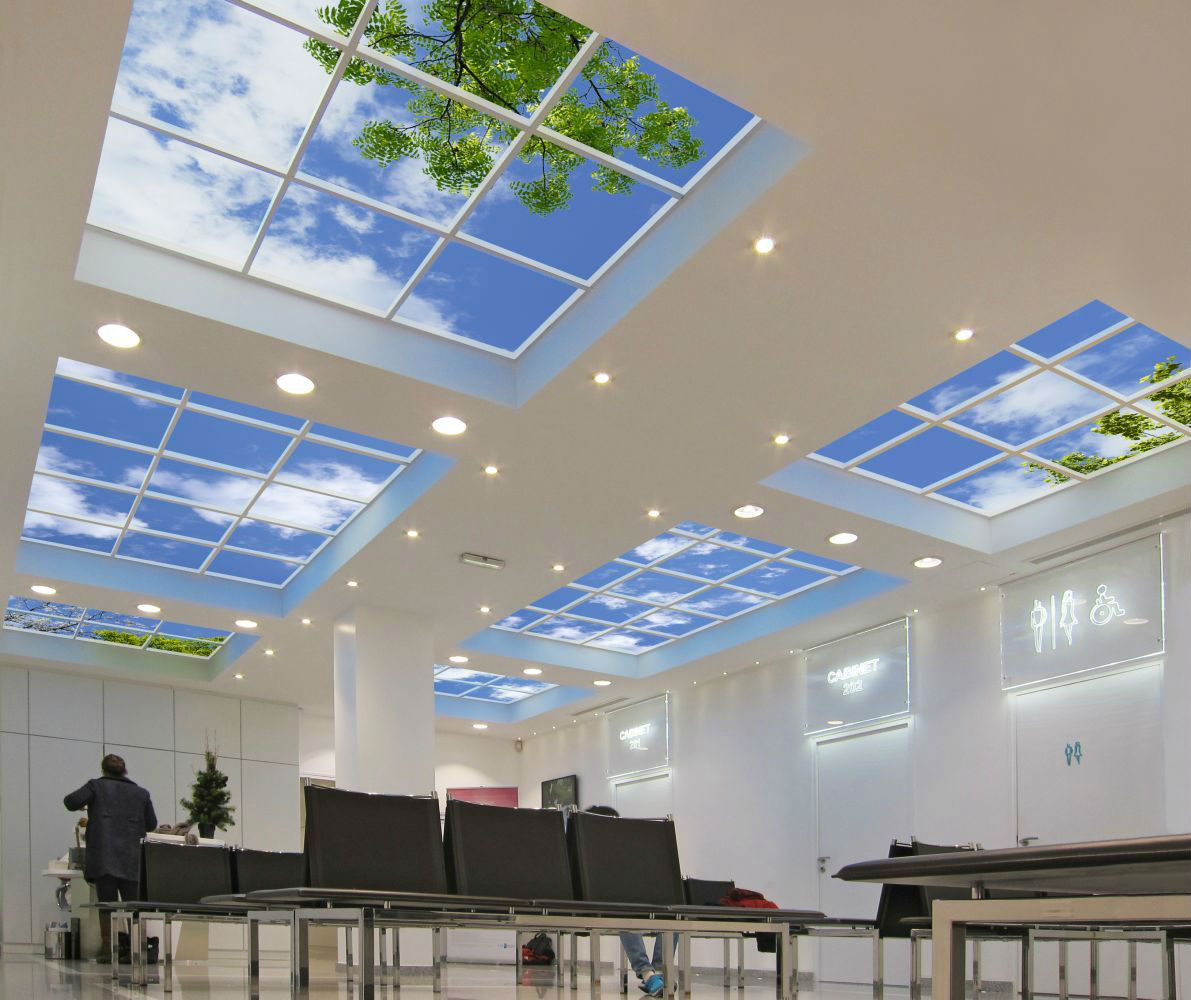

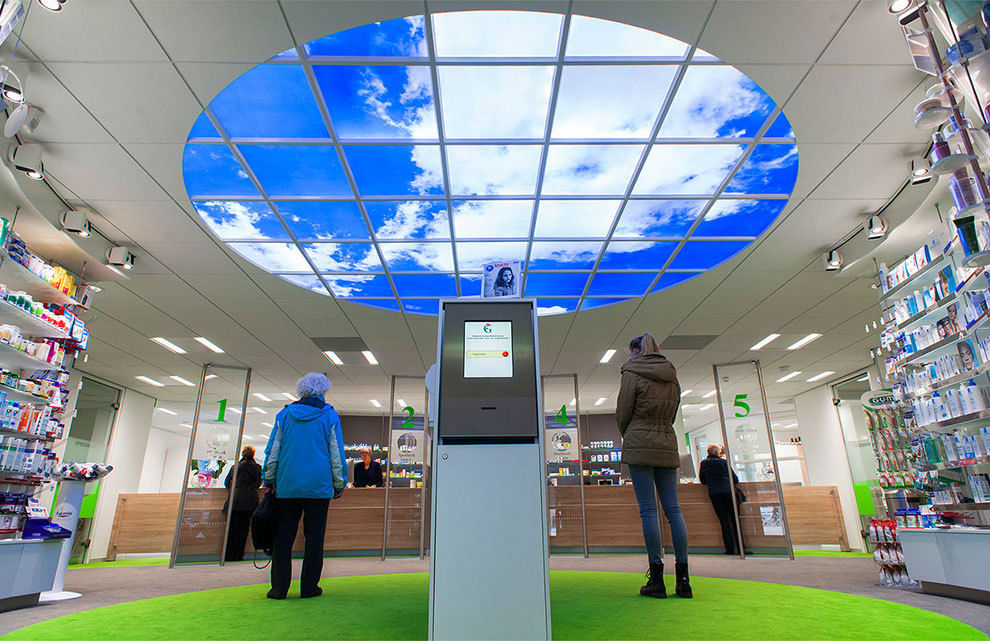

1. Office,workshop,shopping mall,schools,hospital,hotel,retail outlets,living rooms,airports,entertainments spaces,etc.

Replacement

1. Replace fluorescent tube and grille lamp, troffer lights,etc.

Parameters：

1. Input ; 3 years
2. IP rating: IP40
3. Size: 595x595mm
4. Weight: 5kg
5. Packing: 4pcs/ctn, 25KG/ctn
6. Power： 40W
7. Luminous flux: 2000lm
8. Input voltage: 100-277V
9. CRI:>80
10. CCT:3000K to 6500K
11. Dimming: 0-10V Triac DALI
12. Mounting: surface mounted or suspended
13. lifespan: 50000hrs

LED and Optics

1. samsung/jufei/hongli LEDs with high lumens
2. 50000hrs lifespan
3. high transmittance 3mm PMMA light guide plate and 5mm PMMA diffuser
4. beam angle: 120°Electrics
5. high efficiency power supply,LIFUD, meanwell driver brand
6. Input voltage: 100-277V
7. PF value:0.9
8. flicker freeEnviromentally friendly
9. low glare,mercury,ultraviolet,infared or other hazardous substances

Enviromentally friendly

1. working temperature: -25℃ to +55℃
2. storage temperature: -40℃ to +85℃
3. storage humidity: 10% to 80%
4. operating humidity: 10% to 80%Benefits

Benefits

1. longer lifetime than traditional lights
2. 80% energy-saving than traditional lights
3. minimum maintenance costs
4. quick and easy installation to minimize the retrofit costs
5. using aluminum alloy shell with frosted poly cover to make sure good heat dissipation ability and optical effects
