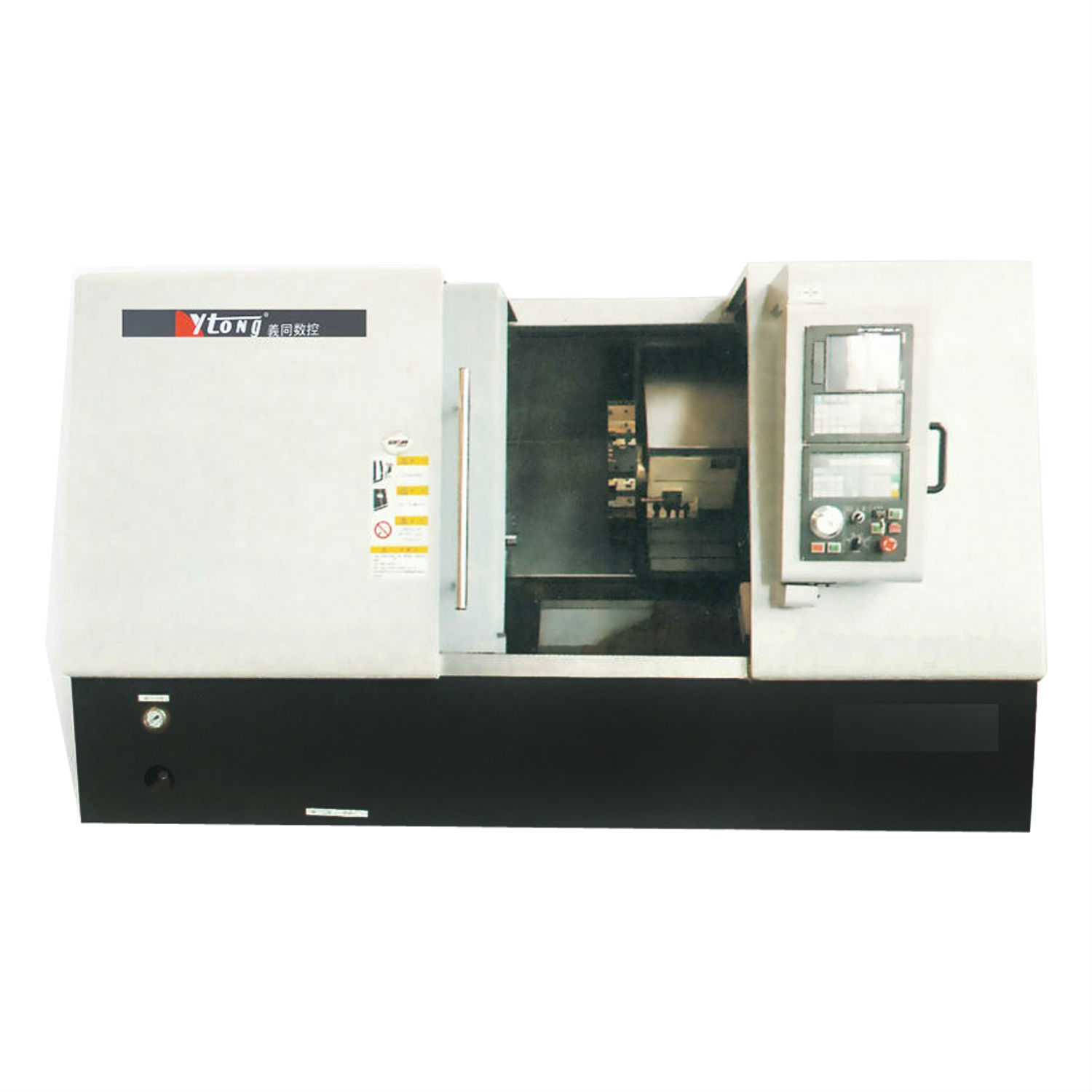

Slant Rail CNC Lathe

Model No.:

CK36S

Brand:

Yitong

Size:

(L x W x H) (mm) 2100 x 1450 x 1800

Customised:

Yes

Type:

Computerized Numerical Control Lathe

Description

Contact Supplier

Maximum swing over bed: (mm) Ø 350.
Spindle nose: A2-4.
Maximum spindle speed (r/min): 5000.
Spindle bore diameter: Ø 45.
Maximus bar diameter: Ø 35.
Bed structure: 30° slant bed.
Spindle bearing: Japan NTN P4.
Maximum travel longitude(X) (double side) (mm): 600.
Travel vertical (Z) (mm): 230.
X/Z axis ball screw: Tai Wan PMI C3.
X/Z axis linear guide way: X/Z Tai Wan PMI H.
Screw bearing: Japan NTN P4.
X/Z axis rapid speed: 24.
Repeat positioning accuracy: X axis 0.005 / Z axis 0.008.
Power of main motor (KW): 4.
Net weight (Kg): 2500.
Stock available: 100.
Simple operation, meet the design requirements of human and low maintenance costs
Closed protective structures, machine rigidity, high precision machining, waterproof and dustproof performance is
much better than similar products.
Product efficiency, feed speed, spindle speed high speed brakes, suitable for machining high finish products.
