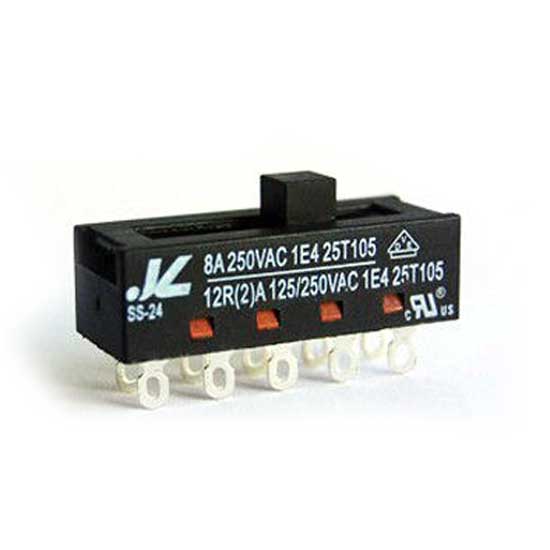

Slide Switch
Model No.:
SS-24
Description
Contact Supplier
Description
This is a slide switch boasting a 30mΩ maximum contact resistance. It is suitable for working under -25-70℃. This high performance slide switch is an ideal choice for various household appliances.
- Rating: 8A 250V AC.
- Traveling: 7mm.
- Function: 2P4T.
- Contact resistance: 30mΩ max.
- Insulation resistance: 100MΩ at 500V DC.
- Withstand voltage: AC 1,500V for 1 minute.
- Operating force: 350-400gf.
- Temperature: -25-70℃.
- Switching life: 10,000 cycles minimum.
- 12R (2)A 125/250V AC 1E4 25T105.
