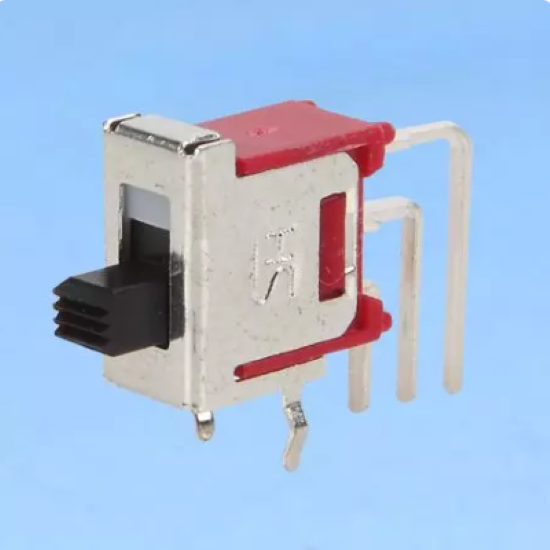

Slide Switch Vert. right angle SPDT

TS40-S Sub-miniature Slide Switches

Tiny slide switch with vertical right angle, PC thru-hole termination. Epoxy terminal seal-compatible with bottom-wash cleaning. This switch is perfect for Telecommunications and networking equipment, Computers and peripherals.

Features

• Circuit: SPDT
• Function: On-On, On-Off-On

Specification

• Contact Rating: Q: 3A @120 VAC or 28 VDC
• Life Cycle: 30,000 make and break cycles at full load
• Contact Resistance: 20 mΩ max. initial @2-4 VDC, 100 mA
• Insulation Resistance: 1,000 MΩ min.
• Dielectric Strength: 1,500 V RMS @ sea level.
• Operating Temperature: -30°C to 85°C

Materials

• CASE: Diallyl phthalate (DAP)
• SLIDE HANDLE: Nylon
• HOUSING: Brass, tin plated
• CONTACT & TERMINAL: Copper alloy, silver plated
• SWITCH SUPPORT: Copper alloy, tin plated

•


• Application

  • Computers and peripherals
  • Telecommunication
  • Test & Measurement equipment
