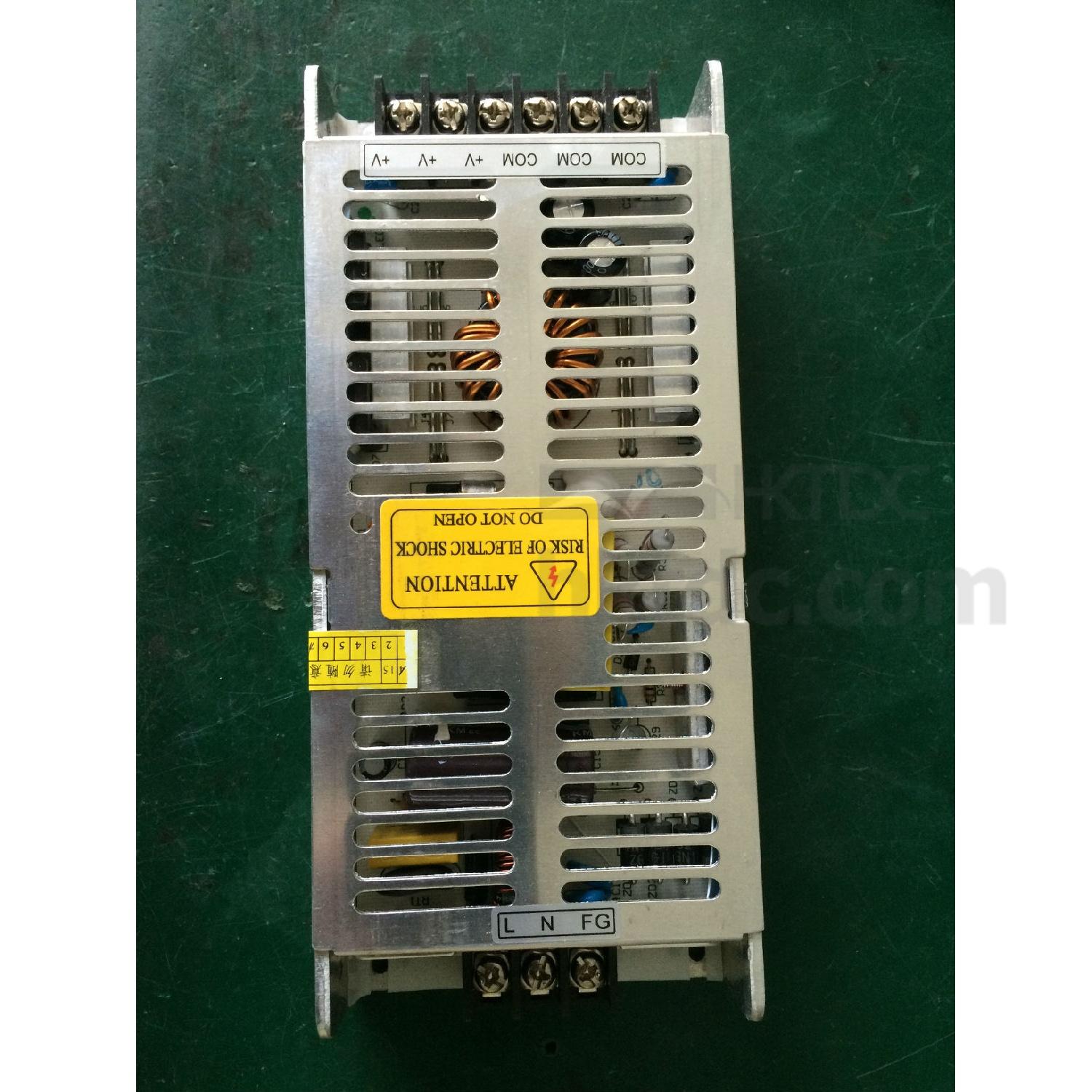

Slim LED Display Driver
Model No.:
CL-A3-200-5
Port:
Shanghai, Shenzhen, Guangzhou
Type of Payment:
T/T
Minimum Order Quantity:
100
Package:
Yes
Customised:
Yes
Input Voltage:
220V
Output Power:
101 - 200W
Output Type:
Single
Place of Origin:
Mainland China
Description
Contact Supplier
Description
- Output: 200W 5V
- Built-in EMI Filter
- 100% full load burn-in test
- Protections: over voltage/ over current/ short circuit
- AC input voltage range: 190-250V AC
- Input frequency: 47-63Hz
- Output adjustment range: ± 5% - ± 10%
- Output over load protection: 110 - 150%
- Output over voltage protection: 115 - 150%
- Withstand voltage:I/P-O/P: 1.5KV AC/1min
- I/P-F/G: 1.5KV AC/1min
- Rise time: 50ms
- Hold up time: 20ms
- Working temerature: -30 ~ +50
- Storage temperature: -20 ~ +85
- Safety standards: design fefer to GB4943.UL60950.EN60950
- EMC standards: design refer to GB9254.EN55022 class A
- MTBF: >50,000hours
- Cooling method: convection
