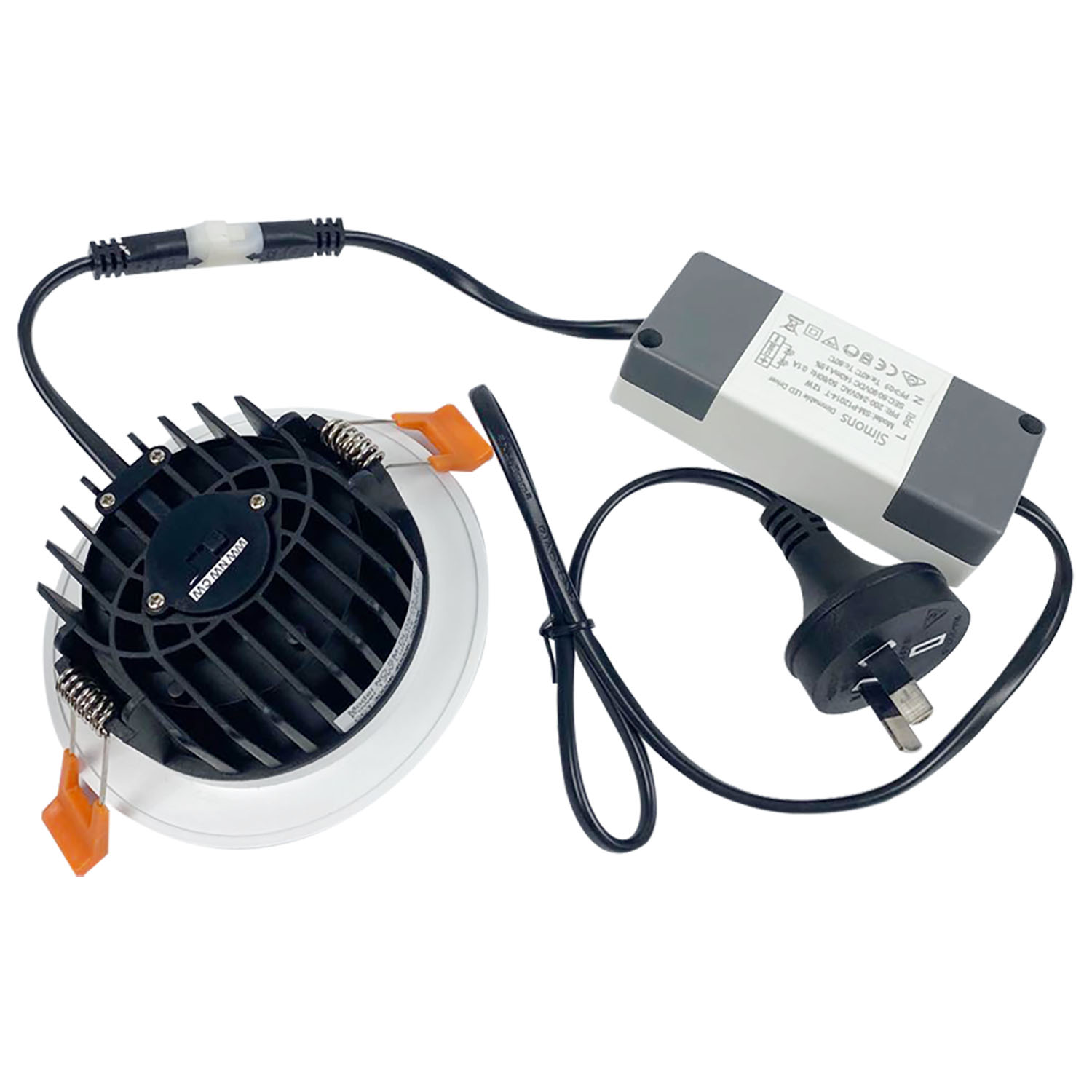

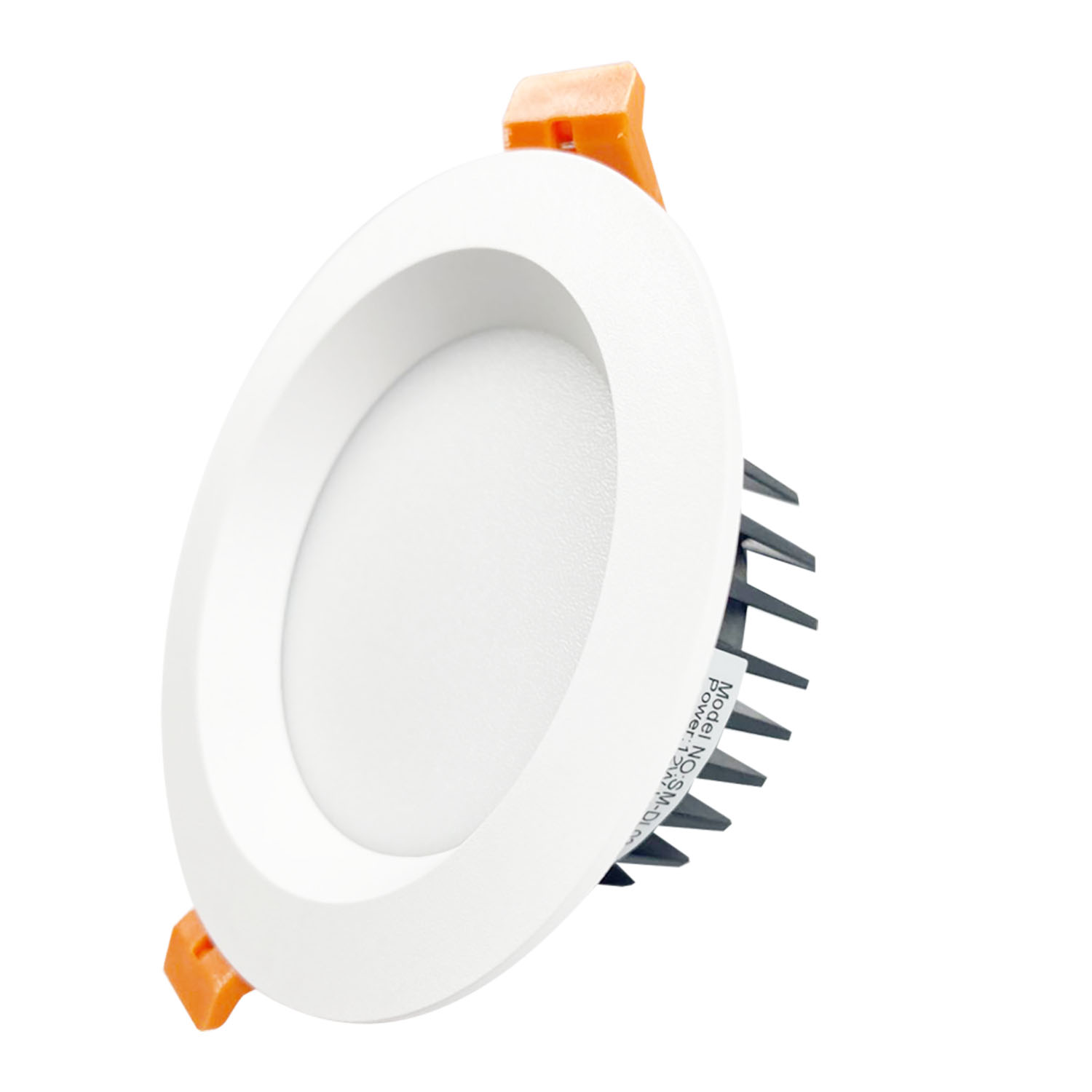

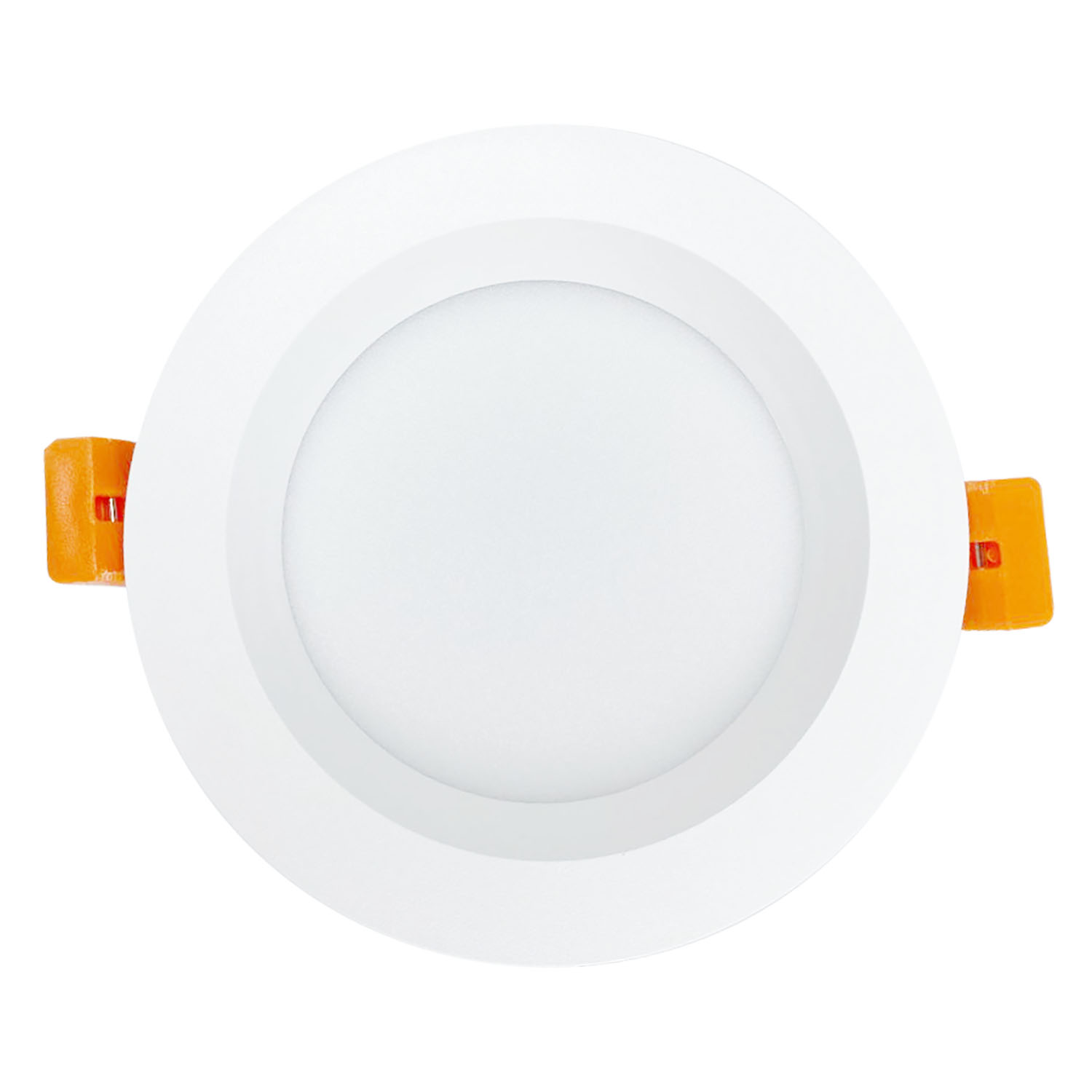

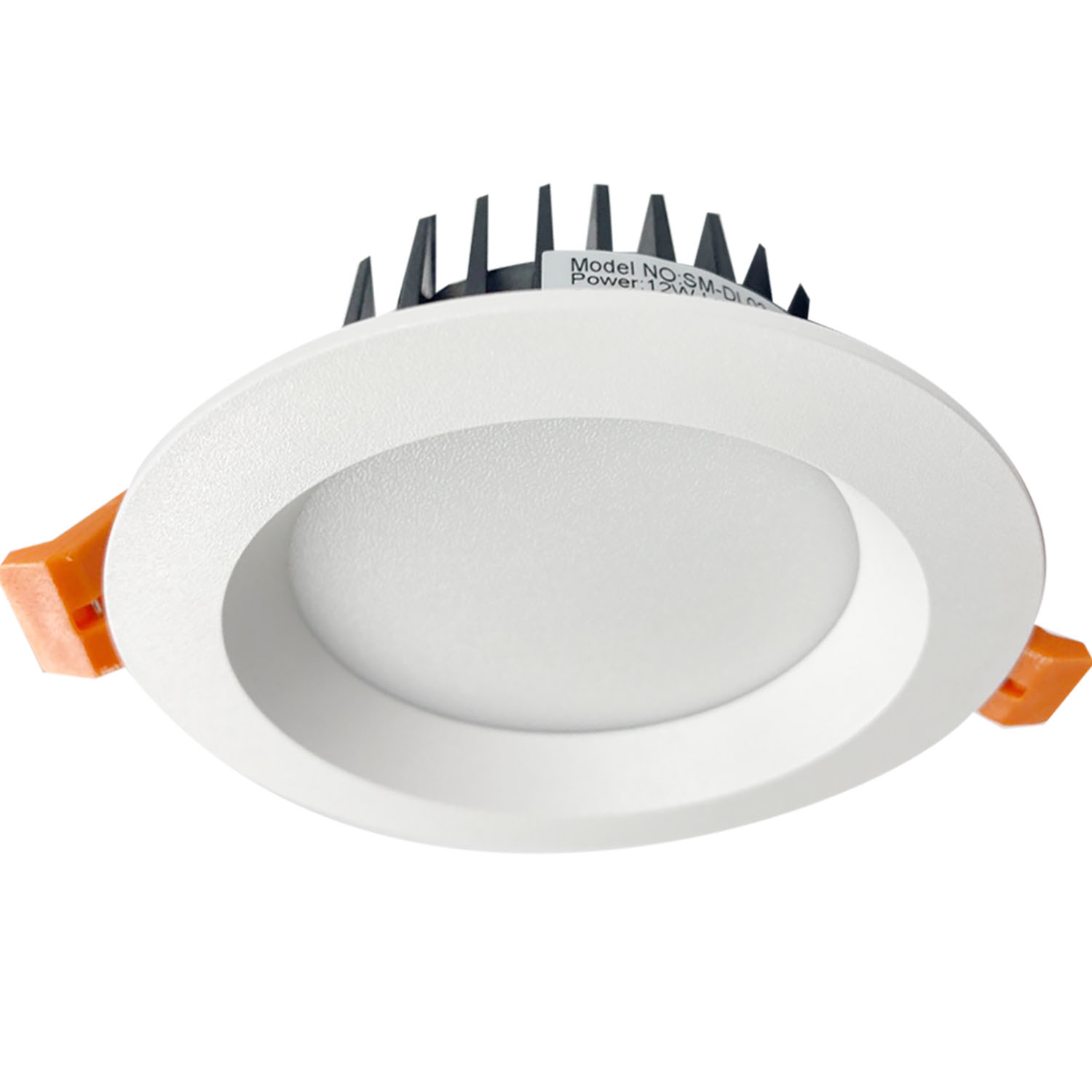

Slim LED Downlight
Production Lead Time:
20 day(s)
Shipping Method:
Air Freight, Sea Freight, Express
Model No.:
DL03-R
Brand:
SIMONS
Input Voltage:
220-240V
Power:
8W, 9W, 10W
Lumens Efficiency:
80-100lm/w
PF:
>0.9
Beam Angle:
100˚
Material:
Aluminum Coated Plastic
Cover:
PC
Working Temperature:
-20~50℃
CRI:
Ra 80, 90
IP Rating:
IP44
CCT:
Single Color (3000K-5000K), 3 CCT
LED Chip:
SMD 2835
Light Body Colour:
White, Black
Installation:
Recessed
Fascia:
Recessed
Working Frequency:
50/60HZ
Lifetime:
30000Hrs
Application:
Office, Shop, Family etc
Certification:
SAA, C-Tick, CE, LM79, TM21, LCP, ISTMT, LM80
Origin:
Xiamen, China
Description
Contact Supplier
Description
Short Description
- High thermal conductivity plastic housing, excellent heat dissipation performance, IC-4 rated light. Elegant appearance of the light and can replace former die-casting aluminum downlight. SAA, C-tick, LM79, LM80, TM21 are all ready for you.
Features:
1. IC-4 rated, V-0 flame rating on the housing.
2. Tri-colour on the light to help you to reduce the stock quantities.
3. 220-240V built-in driver, integrated design.
4. Excellent dimming performance, can suitable for most of brand dimmers except trailing-edge dimmer
5. Warranty: 3 years
6. L70 to 30000hrs.
7. High light transmittance, can up to 100lm/w
8. Aluminum coated plastic material, have high heat dissipation, IC-4 rated.
9. 3 CCT switcher on the back of the light, then CCT can be customized based on your requirement.
10. Slim and elegant appearance, can better fit for your celling.
11. A metal fascia can be assembled on the light, black, silver, satin chrome, nickel are all optional here.
Models
Model | Power | Cut-out | Diameter | Height |
SM-DL03-03-8-R | 8W | 90mm | 108mm | 48mm |
SM-DL03-03-9-R | 9W | 90mm | 108mm | 48mm |
SM-DL03-03-10-R | 10W | 90mm | 108mm | 48mm |
