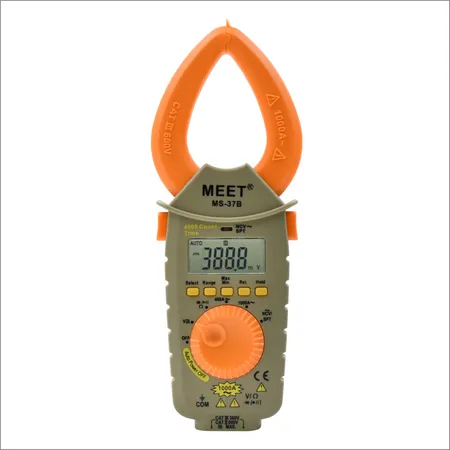

Slim Pocket Clamp Meter

Model No.:

MS-37B

Brand:

MEET

Port:

Shenzhen, Hong Kong

Minimum Order Quantity:

300

Customised:

Yes

Description

Contact Supplier

Key Specifications/Special Features:

True RMS
4000 Counts (3 3/4 digits)
Auto/manual range
Maximum conductor diameter for measurement: ≤Ø50mm
Maximum open jaw: ≤Ø50mm
Large LCD display
Auto-power off (APO): 5mins approximately
Over-range display
AC current measurement: 0-400A, 50-1000A
Max AC current measurement: 4000A
Non-contact AC voltage detection (NCV) (with audible sound and visible indication)
Single probe test (SPT) in AC circuit (with audible sound and visible indication)
Auto/manual AC/DC voltage measurement
Auto/manual resistor measurement : 0-40MΩ (approx.)
Continuity check: <50Ω buzzer sounds
Diode check
Hold/freeze reading
Input impedance : 10M ohm
Max/min/max-min reading
Relative reading
Low battery indication
Software calibrated, no variable resistor adjustment
Popular test leads 4mm banana type
Battery powered : 1 x 3V (CR2032)
Dimension (LxWxD) mm : 203x77x16
