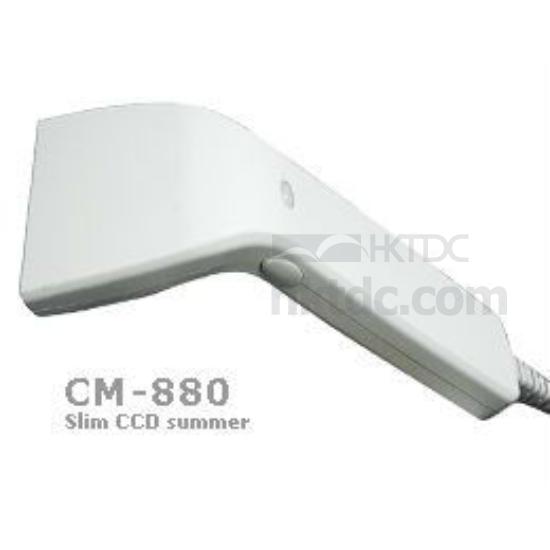

Slim Type CCD Barcode Scanner

Model No.:

CM-880

Brand:

Canmax

Colour:

White

Port:

Taiwan

Type of Payment:

L/C, T/T

Minimum Order Quantity:

1 piece(s)

Description

Contact Supplier

Output interface: PS2 USB RS232C.
Read barcode format: EAN-8 EAN-13 UPC-A code-32 UPC-E EAN/UPC add-on code-39 code-11 UCC/EAN/code-128 industrial-25 interleaved-25 martix-25 China post-25 Codabar/Nw7 MSI/plessey.
Resolution: min. 0.127mm (5mil).
PCS: up to 0.45.
Window width: 80mm.
Read barcode size: 110mm.
Depth of field: 0-50mm (0.39 15.6mil PSC=0.9).
Light source: red LED lamp 630nm.
Read sensor: CCD linear image sensor.
Scanning rate: 100 scans/sec.
Read indicator: red LED and adjustable-volume-buzzer.
Programming configuration by user manual or download via RS232C.
Cable: 2m straight type.
Weight: 95g (without cable).
Drop durability: 1m drop onto concrete surface.
Working temp.: 0-50°C.
Working humidity: 10-90% RH.
Storage temp.: -10-60°C.
Storage humidity: 5-95% RH.
RFI/EMI FCC class: A & CE.
Voltage: DC 5V +/-5%.
Working power: 40-45mA.
Stand by power: 20uA (0.02mA).
Remark: interface cables are interchangeable.
Plug & play USB barcode reader works on Windows 98/Windos 2000/Windows XP/Macintosh/Linux and any other system with USB keyboard support.
