Smart Bluetooth Double Pole Switch | Parts, Components & Electrical Supplies

Lincogn Technology Co Limited

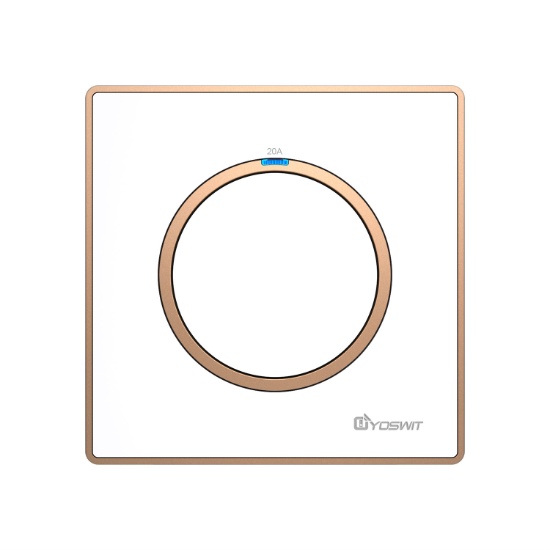

Smart Bluetooth Double Pole Switch

Production Lead Time:

14 day(s)

Model No.:

YO815c

Brand:

Yoswit

Colour:

Multicolour

Size:

L86mm x W86mm x H32mm

Operating Temperature:

-10°C to 40°C

Max. Current:

20A

Protection Level:

IP20

Package:

Yes

Customised:

Yes

Max. Voltage:

AC100 - 240V

Description

Contact Supplier

No neutral wire is needed
Compatible with 2-wire and 3-wire installation
Direct work with smartphone. No hub, no pairing, no configuration needed
Enable wireless control of on/off, schedule, scene and leave sensor function
We provide 1 gang to 4 gang options, 3 different area socket, up to 22 colours and special usages such as dimmer, cooker, curtain and multi-way. Mechanical Data
Body: V0 flame-resistant PC+ABS
Operating Environment: Indoor
Operating Temperature Range: -10°C to 40°C Electrical Data
Input Voltage: AC100-240V
Frequency: 50/60Hz auto detected at power-up
Resistive Load Current: 20A Bluetooth Data
Version: Bluetooth 4.2
Frequency: 2.4GHz
Range: Open area (50m); Indoor(10-20m)
Chips Manufacturer: TI
Chips Certification: BQB
Certification CE, CCC, FCC, EMC, LVD, R&TTE, RoHS
