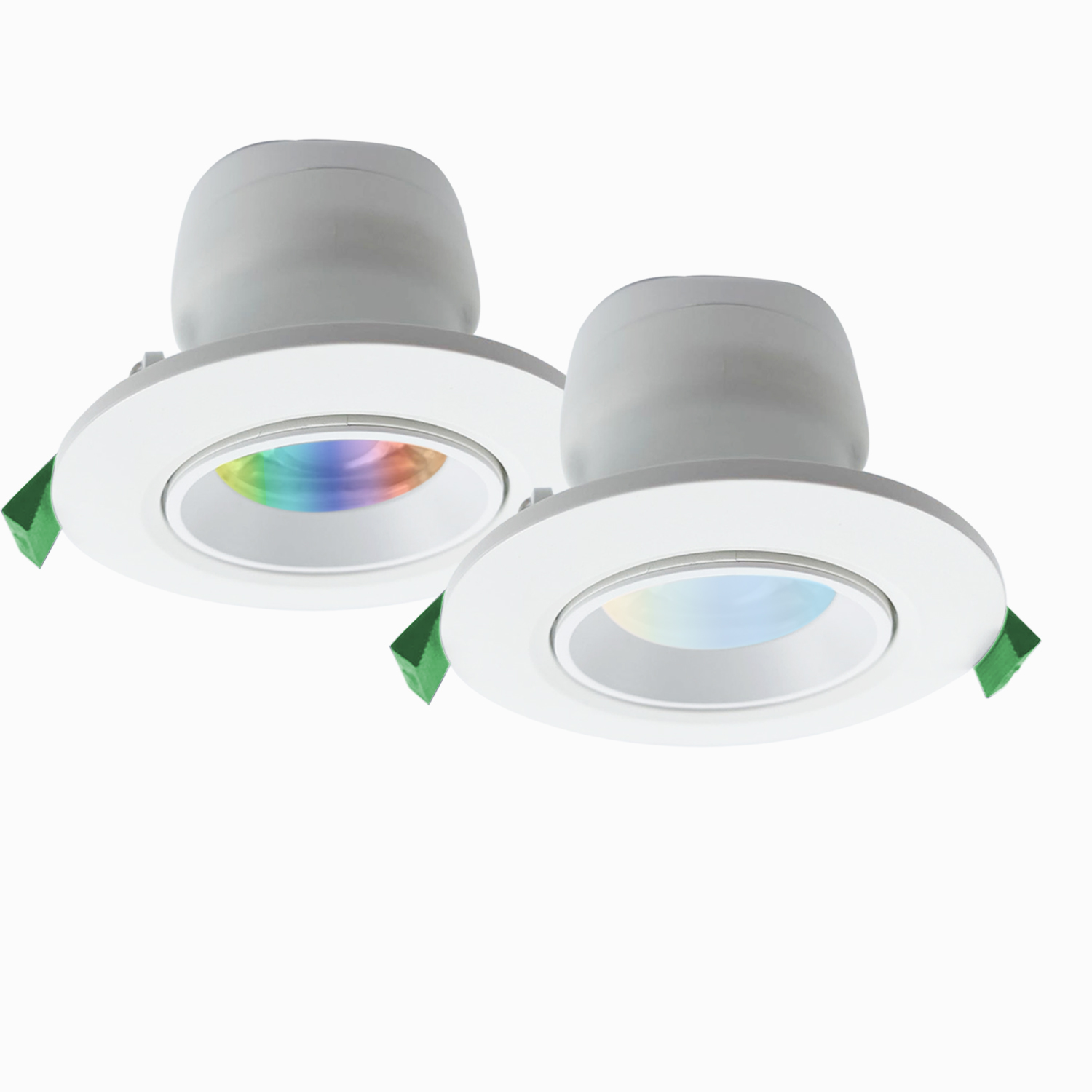

Smart Gimbal LED Downlight
Share this page
US $5.30 - US $8.50
Production Lead Time:
25-35 day(s)
Shipping Method:
Air Freight, Sea Freight, Express
Brand:
SIMONS
Customised:
Yes
Material:
Plastic Cover Aluminum
Including Bulbs:
No
Is Dimmable:
Yes
Feature:
Tuya Smart, Gimbal
Light Source:
LED
Model No.:
DL02-Smart
Lighting Style:
Modern, Novelty
Size:
90mm Cut-out
CCT:
RGBW, RGBCW, RGB, CCT
PF:
>0.5, >0.9
Power:
5W, 8W
Lumens Efficiency:
80lm/w
Certification:
SAA, C-Tick, CE, RoHs
Description
Contact Supplier
Description

Features

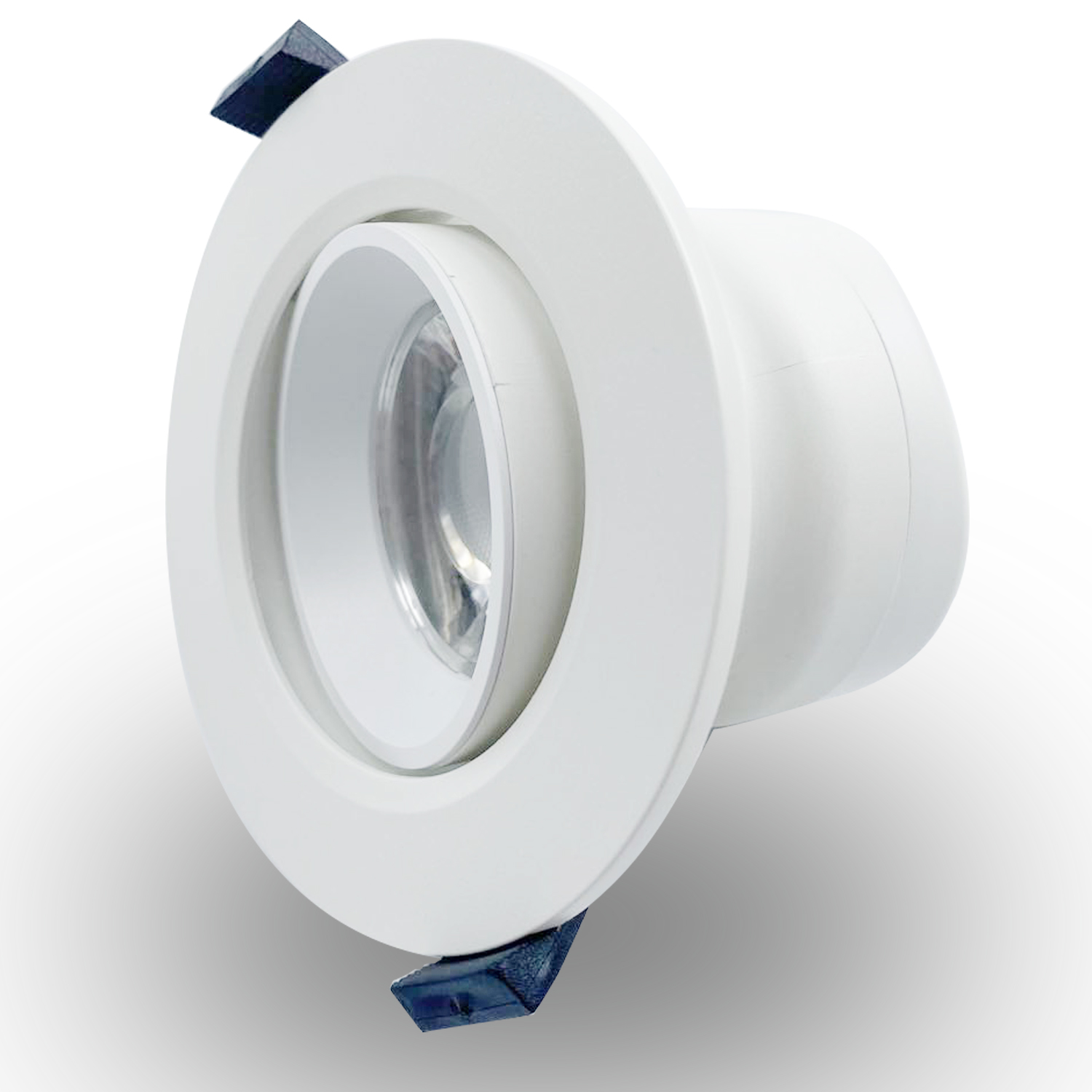

1. Gimbal fascia of the light, each to be adjusted on 45º.

2. The CCT of the light can be RGB, RGBW, RGBCW, CCT, set the color temperature based on the atmosphere you need.

3. Plastic cover aluminum materials, high cost effective, excellent heat dissipation, IC-4 rated.

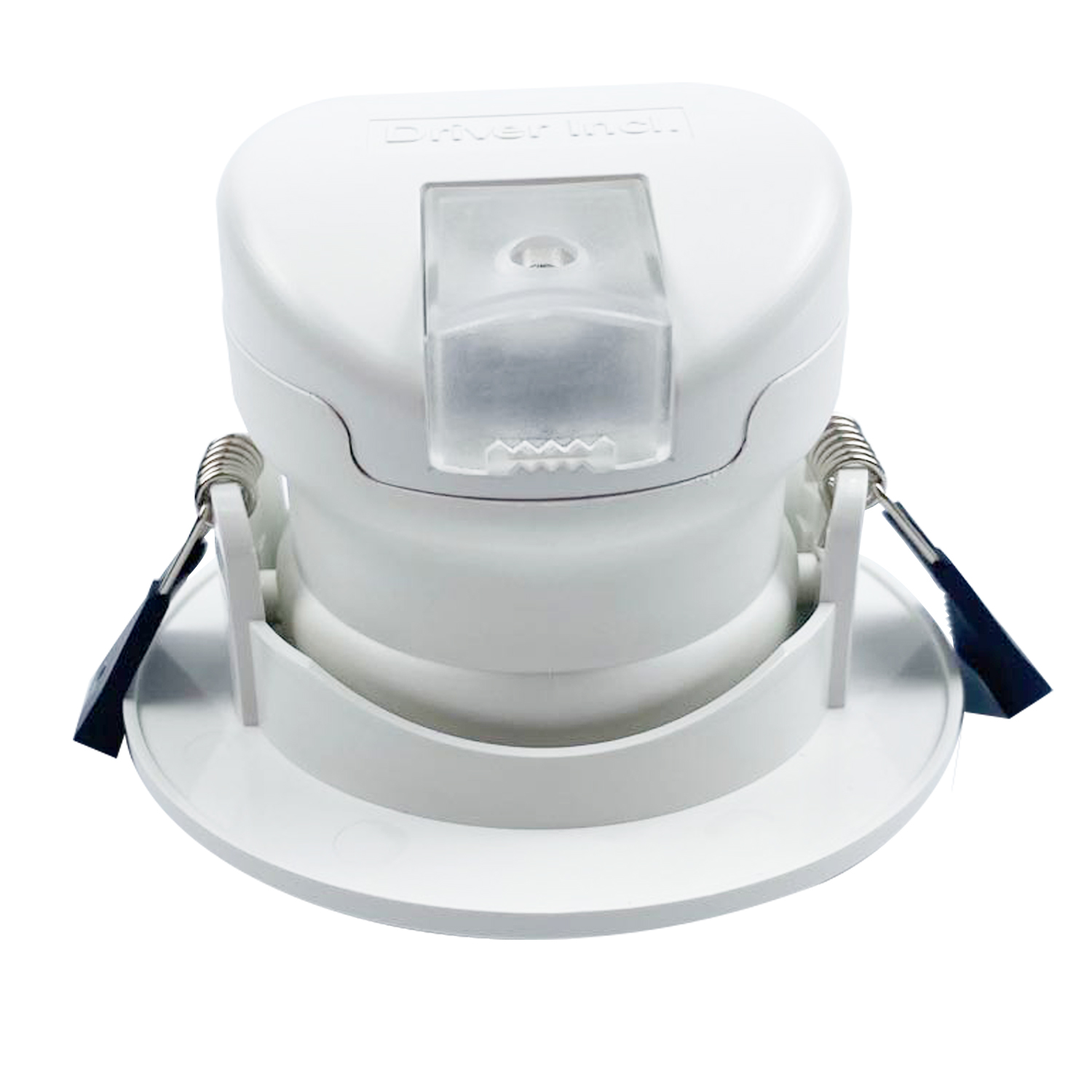

4. Built-in driver, integrated housing, elegant appearance.

5. Easy to be installed, with the AU plug, only need to plug it and then connect to the devices.

6. The functions of the light can be customized by yourselves on the app.

7. 90mm cut-out, suitable for most of the housing application.

8. Support group control, free combination on demand

9. This smart light has 3 communication protocol ways to be customized, wifi, wifi+bluetooth, blue mesh, zigbee.

10. SAA, C-tick, CE approved.

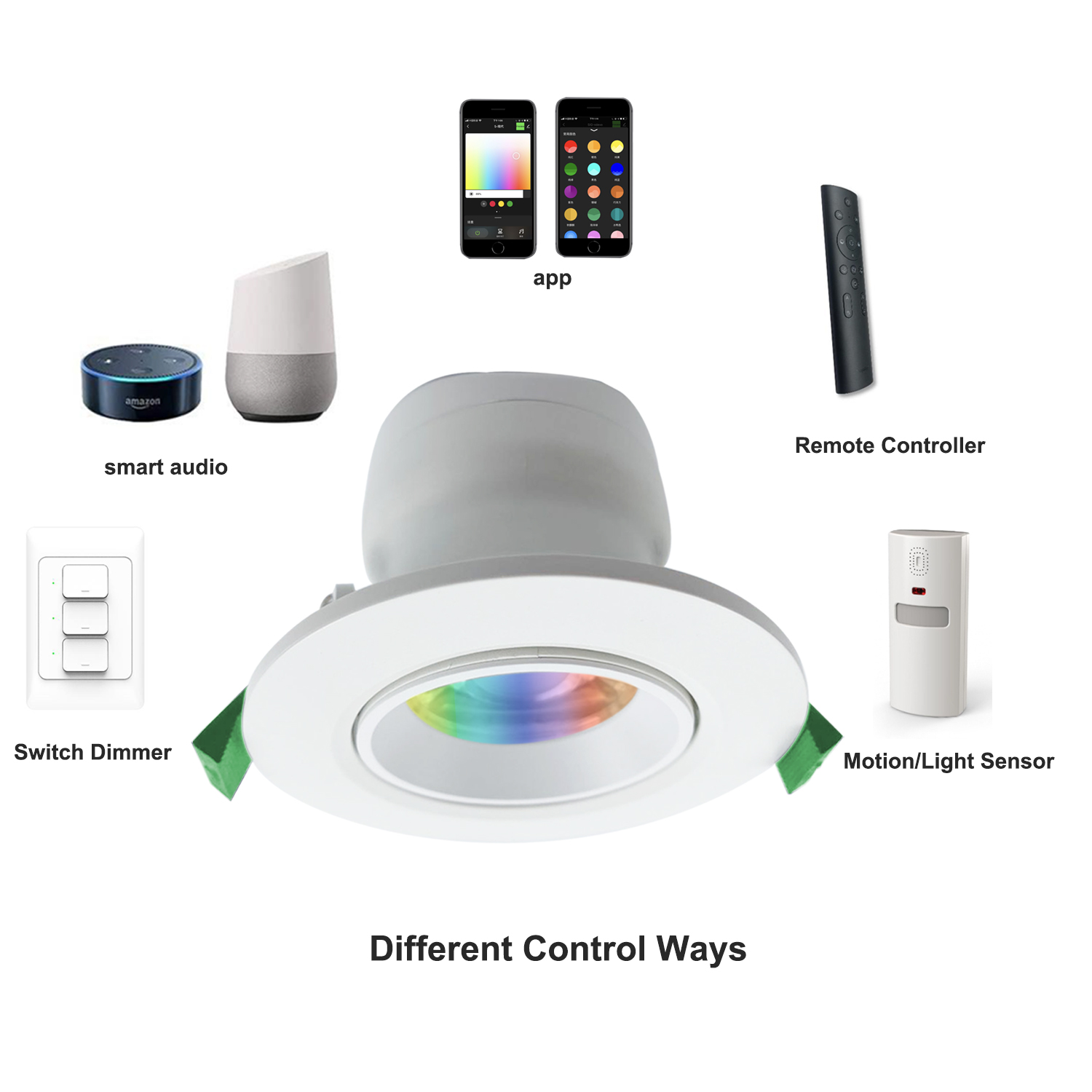

This smart downlight can be controlled by app, smart audio, light sensor, remote controller, switch dimmer etc. And also some of the devices can be used together to control this light.

This smart light can be controlled in any places: you can turn it on before you get home.

Easy to be installed

1. Scan the QR to download the app

2. Install the lamp and switch the smart light in quickly flashing

3. Connect smart light to App under a WIFI network.

Spec & Models

Technical Parameter

Input Voltage200V-240VCRI (Ra>)80,90
Power Factor>0.9/>0.5Working Frequency50/60HZ
Power5W, 8WCut Out90mm
Diameter105mmHeight65mm
Temperature-20~50℃Lifetime30000h
IP RatingIP20MaterialsPlastic cover aluminum
Light SourceLEDLED ChipSMD 2835
CCTCW, RGBCW, RGB, RGBWBeam Angle40°
FasciaGimbalInstallationRecessed
ControlTuya app, Alexa, Google Home, Siri voice, Remote Controller
FunctionsCCT/ Light colour change, Scene Model Setting, Wake up, Time setting, Group Control



Models

Model

Power

Colour Temperature

Communication protocol ways

DL02-03-08-CW-WI-F

8W

3000K-5000K

Wifi

DL02-03-08-CW-WI+BL-F

8W

3000K-5000K

Wifi+Bluetooth

DL02-03-08-CW-BLM-F

8W

3000K-5000K

Bluetooth Mesh

DL02-03-08-CW-ZIG-F

8W

3000K-5000K

Zigbee

DL02-03-08-RGB-WI-F

8W

RGB

Wifi

DL02-03-08-RGB-WI+BL-F

8W

RGB

Wifi+Bluetooth

DL02-03-08-RGB-WI-F

8W

RGB

Wifi

DL02-03-08-RGB-WI+BL-F

8W

RGB

Wifi+Bluetooth

DL02-03-08-RGBW-WI-F

8W

RGB+3000K/4000K/5000K

Wifi

DL02-03-08-RGBW-WI+BL-F

8W

RGB+3000K/4000K/5000K

Wifi+Bluetooth

DL02-03-08-RGBW-WI-F

8W

RGB+3000K/4000K/5000K

Wifi

DL02-03-08-RGBW-WI+BL-F

8W

RGB+3000K/4000K/5000K

Wifi+Bluetooth

DL02-03-08-RGBCW-WI-F

8W

RGB+3000K~5000K

Wifi

DL02-03-08-RGBCW-WI+BL-F

8W

RGB+3000K~5000K

Wifi+Bluetooth

DL02-03-08-RGBCW-WI-F

8W

RGB+3000K~5000K

Wifi

DL02-03-08-RGBCW-WI+BL-F

8W

RGB+3000K~5000K

Wifi+Bluetooth
