    Smart LED Downlight
    Share this page
    US $4.15 - US $7.40
    Production Lead Time:
    25-35 day(s)
    Shipping Method:
    Air Freight, Sea Freight, Express
    Brand:
    SIMONS
    Customised:
    Yes
    Feature:
    Tuya Smart
    Material:
    Plastic Cover Aluminum
    Including Bulbs:
    No
    Is Dimmable:
    Yes
    Light Source:
    LED
    Lighting Style:
    Modern, Novelty
    Model No.:
    DL01-F-Smart
    Size:
    90mm Cut-out
    Description
    Contact Supplier
    Description

    Features

    1. Plastic cover aluminum materials, high cost effective, high heat dissipation, IC-4 Rated.

    2. Integrated housing design, internal driver, the appearance of this light is more elegant.

    3. Appropriate height of the light, it’s suitable for the using of most of the housings.

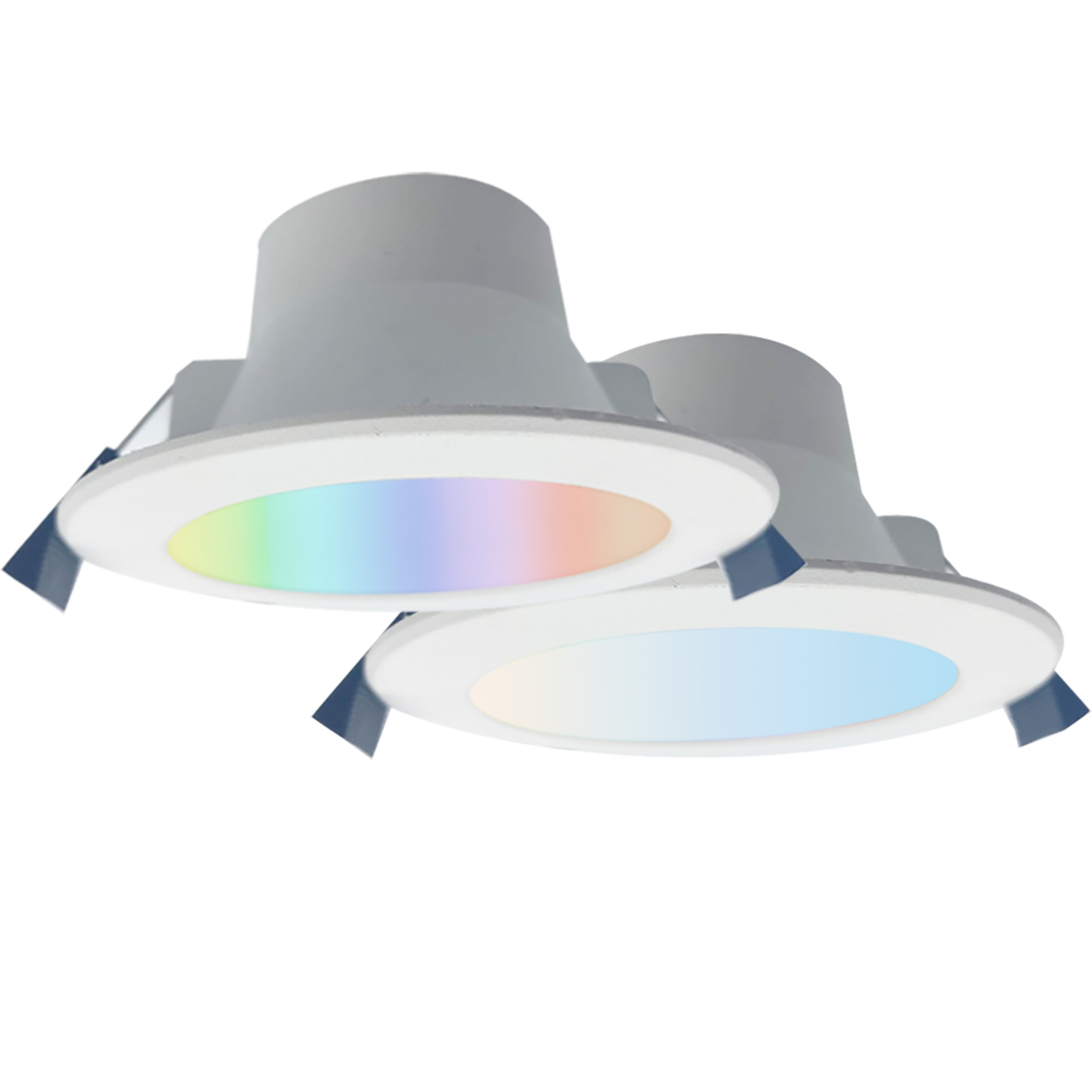

    4. SMD Smart Downlight, CCT, RGB, RGBW, RGBCW are optional on this light.

    5. Most of functions of this smart light can be customized on the devices.

    6. Multi communication protocol ways can be chosen, wifi, wifi+bluetooth, bluetooth mesh (SIG), zigbee.

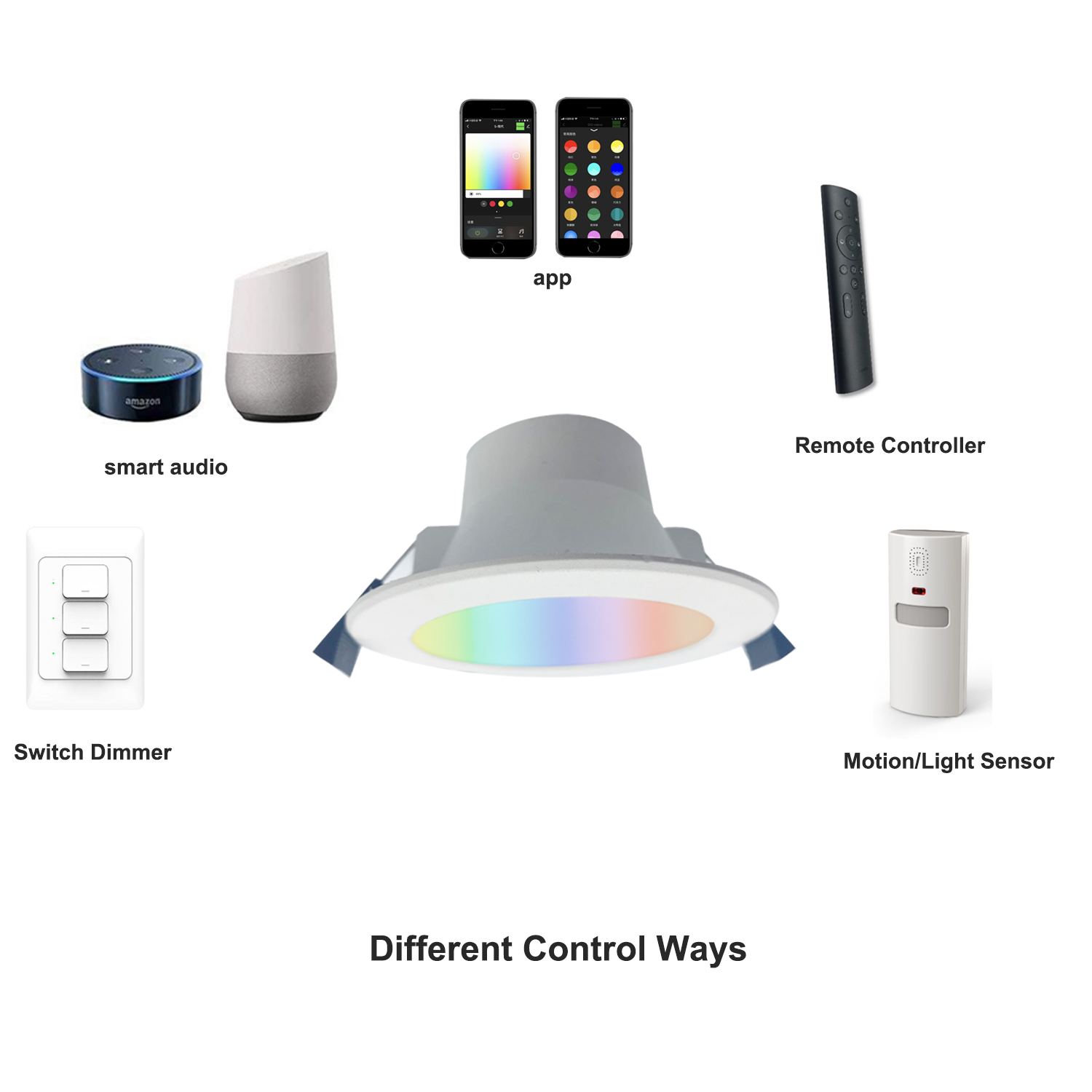

    7. Customized the control ways with us. Optional to OEM app, remote controller, smart audio, motion/ light sensor, switch dimmer.

    8. If you have your own app or devices of the smart downlight, pls let us know. We can customize the light to be fitted for your app and devices.

    9. High out-put of the light, the lumen efficiency of this smart light on CW can be up to 100lm/w.

    10. Optional to use metal fascia on the light. Chrome, nickel, zinc, silver, black , copper and golden fascias all can be done.

    11. SAA, C-Tick, CE can be provided for you.

    Set the CCT of the light on different scenes and different places.

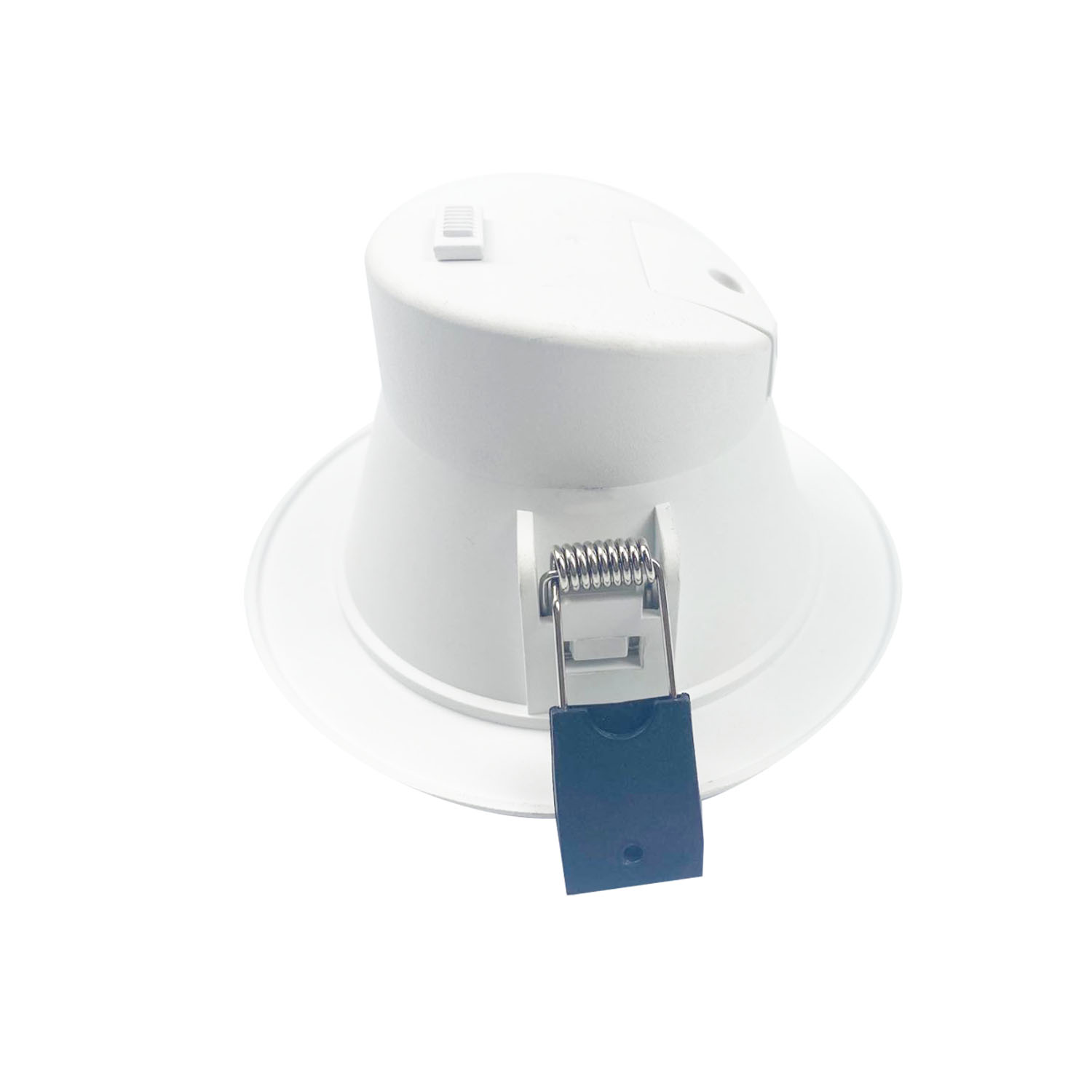

    With the plug on the light, easy to be installed. Step 1, plug leadwire, step 2, connect the light with the app or devices. Step 3, install it into the cut hole.

    Spec & Models

    Technical Parameter

    Input Voltage200V-240VCRI (Ra>)80,90
    Power Factor>0.5/ >0.9Working Frequency50/60HZ
    Power5W, 8WCut Out90mm
    Diameter115mmHeight55mm
    Temperature-2050℃Lifetime30000h
    IP RatingIP44MaterialsPlastic cover aluminum
    Light SourceLEDLED ChipSMD 2835
    CCT3000~5000K, RGB, RGB+3000K/ 4000K/ 5000K, RGB+ 3000~5000KBeam Angle100°
    Light ColorNatural/ warm/ coldFasciaFlat

    Models

    Model

    Power

    Colour Temperature

    Communication protocol ways

    DL01-03-08-CW-WI-F

    8W

    3000K-5000K

    Wifi

    DL01-03-08-CW-WI+BL-F

    8W

    3000K-5000K

    Wifi+Bluetooth

    DL01-03-08-CW-BLM-F

    8W

    3000K-5000K

    Bluetooth Mesh

    DL01-03-08-CW-ZIG-F

    8W

    3000K-5000K

    Zigbee

    DL01-03-08-RGB-WI-F

    8W

    RGB

    Wifi

    DL01-03-08-RGB-WI+BL-F

    8W

    RGB

    Wifi+Bluetooth

    DL01-03-08-RGB-WI-F

    8W

    RGB

    Wifi

    DL01-03-08-RGB-WI+BL-F

    8W

    RGB

    Wifi+Bluetooth

    DL01-03-08-RGBW-WI-F

    8W

    RGB+3000K/4000K/5000K

    Wifi

    DL01-03-08-RGBW-WI+BL-F

    8W

    RGB+3000K/4000K/5000K

    Wifi+Bluetooth

    DL01-03-08-RGBW-WI-F

    8W

    RGB+3000K/4000K/5000K

    Wifi

    DL01-03-08-RGBW-WI+BL-F

    8W

    RGB+3000K/4000K/5000K

    Wifi+Bluetooth

    DL01-03-08-RGBCW-WI-F

    8W

    RGB+3000K~5000K

    Wifi

    DL01-03-08-RGBCW-WI+BL-F

    8W

    RGB+3000K~5000K

    Wifi+Bluetooth

    DL01-03-08-RGBCW-WI-F

    8W

    RGB+3000K~5000K

    Wifi

    DL01-03-08-RGBCW-WI+BL-F

    8W

    RGB+3000K~5000K

    Wifi+Bluetooth
