Smart LED Downlight
Share this page
US $6.40 - US $9.20
Production Lead Time:
25-35 day(s)
Shipping Method:
Air Freight, Sea Freight, Express
Brand:
SIMONS
Customised:
Yes
Material:
Die-casting Aluminum
Is Dimmable:
Yes
Light Source:
LED
Model No.:
DL04-Smart
Size:
90mm Cut-out
CCT:
RGBCW, RGB, RGBW, CCT
Power:
10W, 12W
PF:
>0.9
CRI:
>80
Communication protocol ways:
wifi, wifi+bluetooth, bluetooth mesh, zigbee
Description
Contact Supplier
Description

Features

1. Die-casting aluminum downlight, excellent heat dissipation, IC-4 rated.

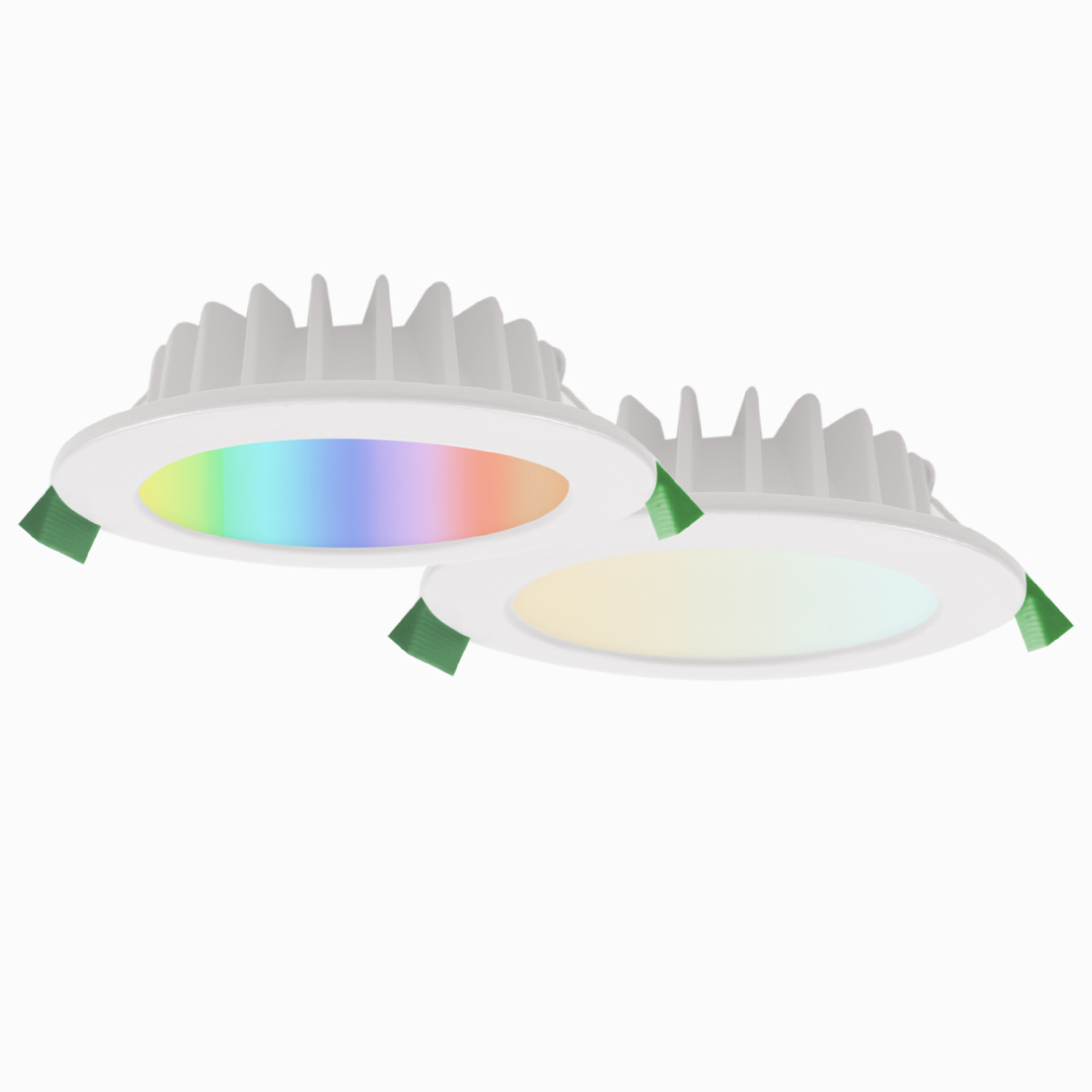

2. Colour temperature is optional to be CCT, RGB, RGBW, RGBCW on this smart downlight.

3. Integrated housing design, elegant appearance.

4. 4 Multi communication protocol ways  can be customized on this smart downlight, Wi-Fi, Wi-Fi + Bluetooth, Bluetooth mesh, ZigBee.

5. Support group control, one mobile phone can control multiple lights at the same time.

6. You can share the smart downlight to your family through the app, multiple phones can control one lights.

7. Cut-out is 90mm, suitable for most of the building.

8. Excellent dimming performance, dim from 5% to 100% fluently.

9. You can control your home smart downlight from anywhere.

10. Personalize this smart downlight with a colour palette of over 16 million colours and different tones of white light from dark to bright.

11. High light transparency, high light output, the lumen efficiency can be up to 100lm/w.

12. SAA, C-Tick, CE approved.

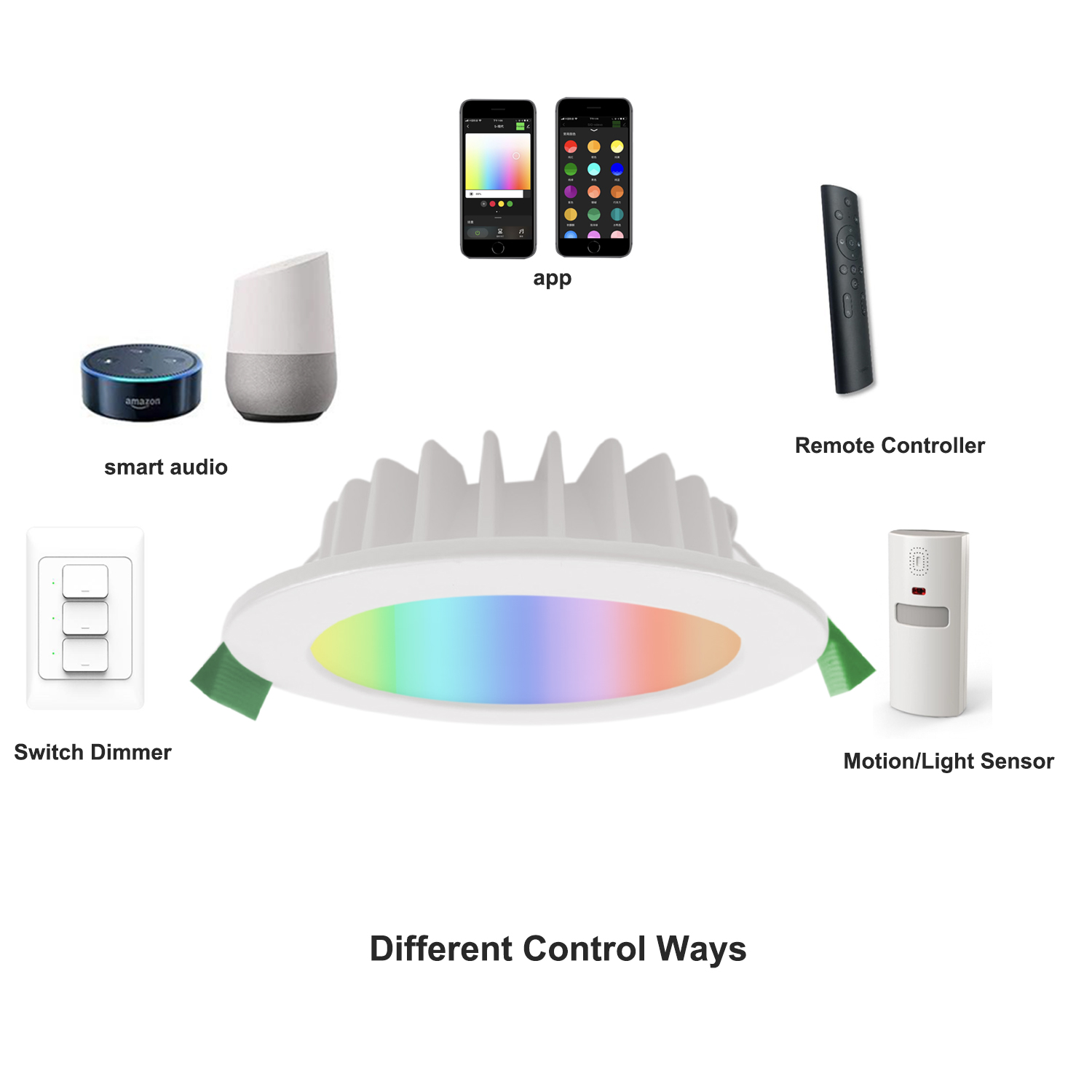

Intelligent voice control, using voice to control lighting. Through Amazon Echo, Google Home, IFTTT voice control, make your family life more comfortable.


Mobile app to adjust brightness. According to your different needs, you can adjust the brightness through the mobile app to get a better viewing experience.

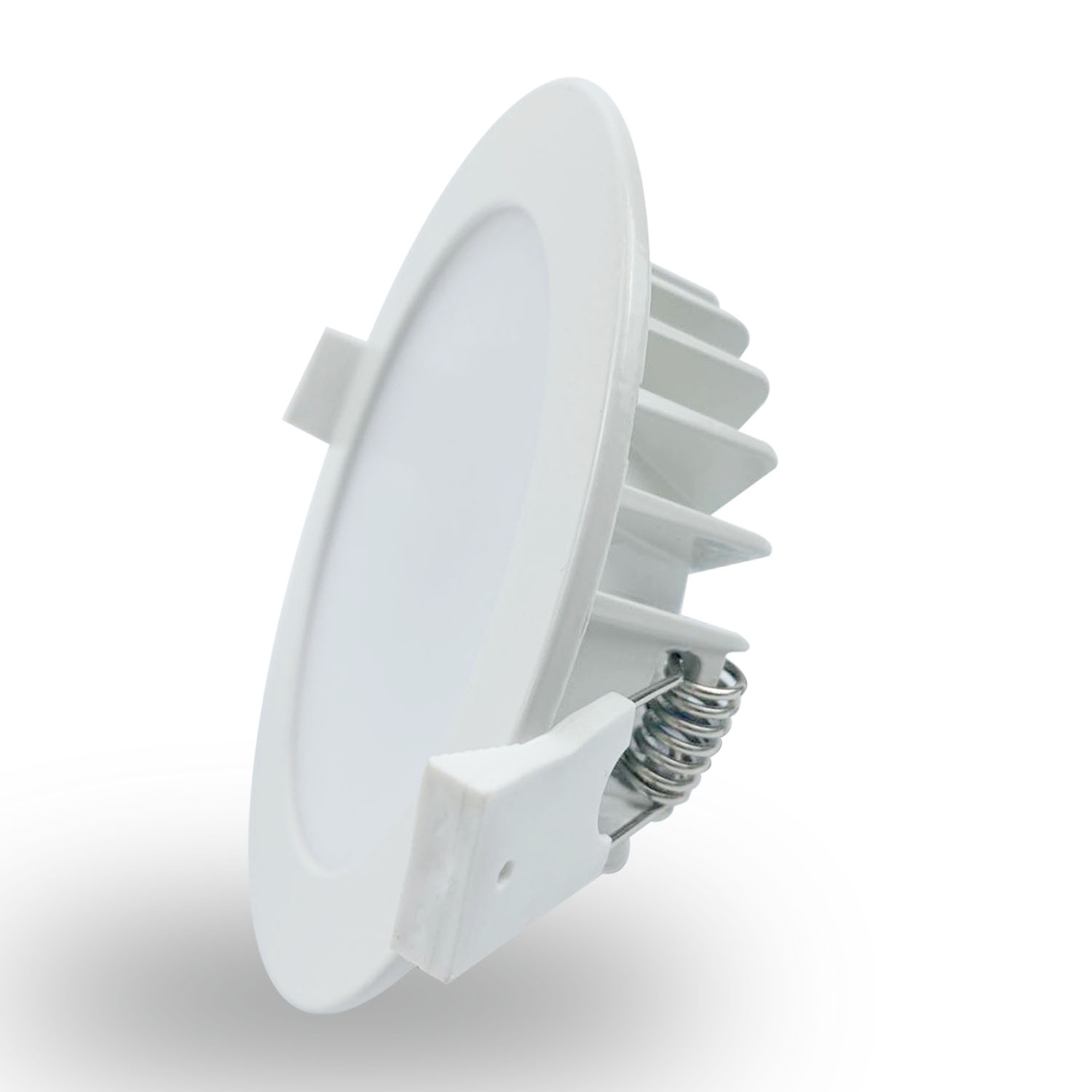

Easy to be installed


Spec & Models

Technical Parameter

Input Voltage200V-240VCRI (Ra>)80,90
Power Factor>0.9/>0.5Working Frequency50/60HZ
Power10W, 12WCut Out90mm
Diameter108mmHeight30mm
Temperature-20~50℃Lifetime30000h
IP RatingIP20MaterialsPlastic cover aluminum
Light SourceLEDLED ChipSMD 2835
CCTCW, RGBCW, RGB, RGBWBeam Angle90°
FasciaFlatInstallationRecessed
ControlTuya app, Alexa, Google Home, Siri voice, Remote Controller
FunctionsCCT/ Light colour change, Scene Model Setting, Wake up, Time setting, Group Control

Models

Model

Power

Colour Temperature

Communication protocol ways

DL04-03-12-CW-WI

12W

3000K-5000K

Wi-Fi

DL04-03-12-CW-WI+BL

12W

3000K-5000K

Wi-Fi + Bluetooth

DL04-03-12-CW-BLM

12W

3000K-5000K

Bluetooth Mesh

DL04-03-12-CW-ZIG

12W

3000K-5000K

ZigBee

DL04-03-12-RGB-WI

12W

RGB

Wi-Fi

DL04-03-12-RGB-WI+BL

12W

RGB

Wi-Fi + Bluetooth

DL04-03-12-RGB-BLM

12W

RGB

Bluetooth Mesh

DL04-03-12-RGB-ZIG

12W

RGB

ZigBee

DL04-03-12-RGBW-WI

12W

RGB+3000K/4000K/5000K

Wi-Fi

DL04-03-12-RGBW-WI+BL

12W

RGB+3000K/4000K/5000K

Wi-Fi + Bluetooth

DL04-03-12-RGBW-BLM

12W

RGB+3000K/4000K/5000K

Bluetooth Mesh

DL04-03-12-RGBW-ZIG

12W

RGB+3000K/4000K/5000K

ZigBee

DL04-03-12-RGBCW-WI

12W

RGB+3000K~5000K

Wi-Fi

DL04-03-12-RGBCW-WI+BL

12W

RGB+3000K~5000K

Wi-Fi + Bluetooth

DL04-03-12-RGBCW-BLM

12W

RGB+3000K~5000K

Bluetooth Mesh

DL04-03-12-RGBCW-ZIG

12W

RGB+3000K~5000K

ZigBee
