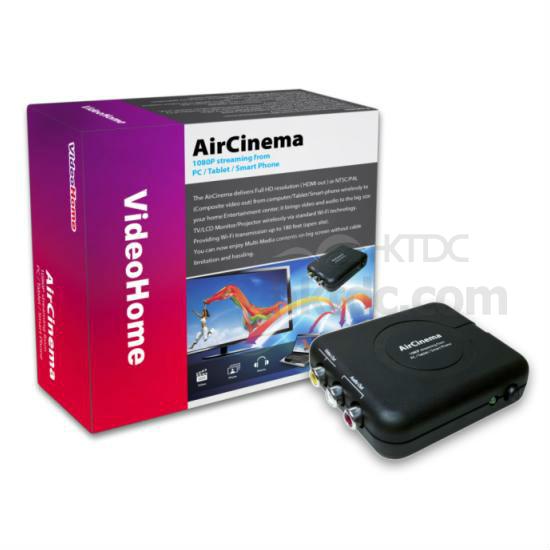

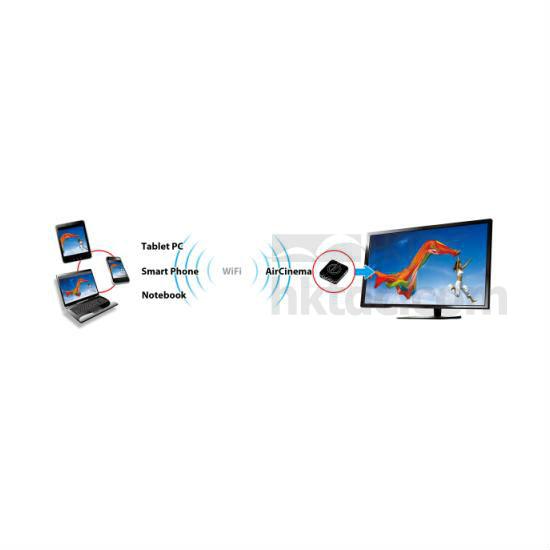

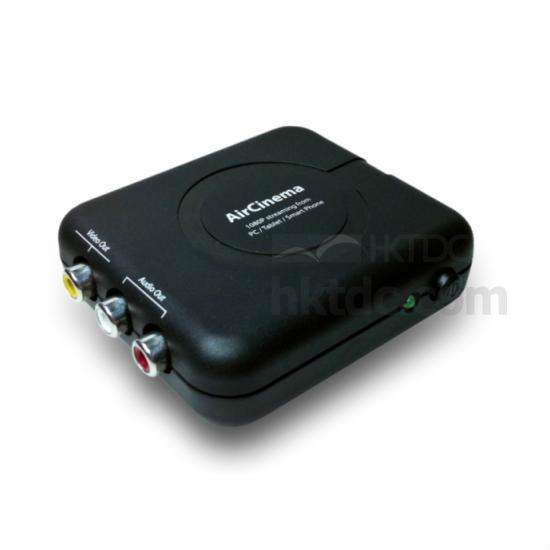

• The AirCinema delivers full HD resolution (HDMI out) or NTSC/PAL (composite video out) from computer/tablet/smartphone wirelessly to your home entertainment center; it brings video and audio to the big size TV/LCD monitor/projector wirelessly via standard Wi-Fi technology. Providing Wi-Fi transmission up to 180 feet (open site). You can now enjoy Multi-Media contents on big screen without cable limitation and hassling.

Features:

• Support video/audio/image DLNA Wi-Fi transmission from computer/tablet/smartphone to TV.
• Support either HDMI or composite audio/video output.
• Delivers smooth video output upto 1080P (HDMI out) by 30fps.
• Special support NTSC/PAL video output (composite out) for traditional TV.
• Build-in DLNA software in device memory (Android/Windows version only), easy to download from device.
• Build-in Wi-Fi antenna.
• Long distance wireless transmission up to 180 feet (open site).
• Complies with IEEE 802.11b/g/n.
• Easy firmware upgrade.
• Play photo with music function support.
• Wide input voltage (DC 5V~12V) support for extensively application.
• Support virtual AP bridge (bridge to wireless router).
• Back to default reset button support.

Specifications:
Video:

• HDMI output: full HD 1080p (1920 x 1080) output (supported: 480P/576P/720P/1080i/1080P @ 24Hz or 50Hz and 60Hz).
• Composite video output: yellow RCA female port (support: NTSC/PAL system).

Audio:

• Output interface: digital-HDMI, analog-red/white RCA female port.
• Night mode function.
• Support HDMI LPCM or raw data output.

Image:

• Formats supported: JPG/JPGE, BMP, PNG, GIF.

Wirelessly:

• Frequency: 2.4GHz ISM bands (2.412-2.472GHz).
• Modulation: BPSK/QPSK/16-QAM/64-QAM.
• Compliant with IEEE 802.11n draft 3.0 standard.
• High speed wireless connection up to 150Mbps.
• Data security: 64/128 bit WEP, WPA, and WPA2.

Output power:

• ＜17dBm @ 802.11b.
• ＜14dBm @ 802.11g.
• ＜14dBm @ 802.11n.

Receive sensitivity:

• 11Mbps-80dBm@8%.
• 54Mbps-70dBm@10%.
• 130Mbps-64dBm@10%.

USB:

• For firmware upgrade.
• Power consumption: 5V DC, 470mA/12V DC, 240mA.
• Dimensions: 81.5 x 71.5 x 23.5mm.
• Antenna: build-in omni directional antenna.

System requirements:

• Digital media server (DMS; eg include PCs and network-attached storage (NAS) devices, etc.).
• Digital media controller (DMC; eg include Internet tablets and Wi-Fi enabled digital cameras, etc.).
• Mobile digital media server (M-DMS; eg include mobile phones and portable music players, etc.).
• Mobile digital media controller (M-DMC; eg include personal digital assistants (PDAs) and smart phones, etc.).
• HDMI cable or RCA (yellow/red/white) cable.
