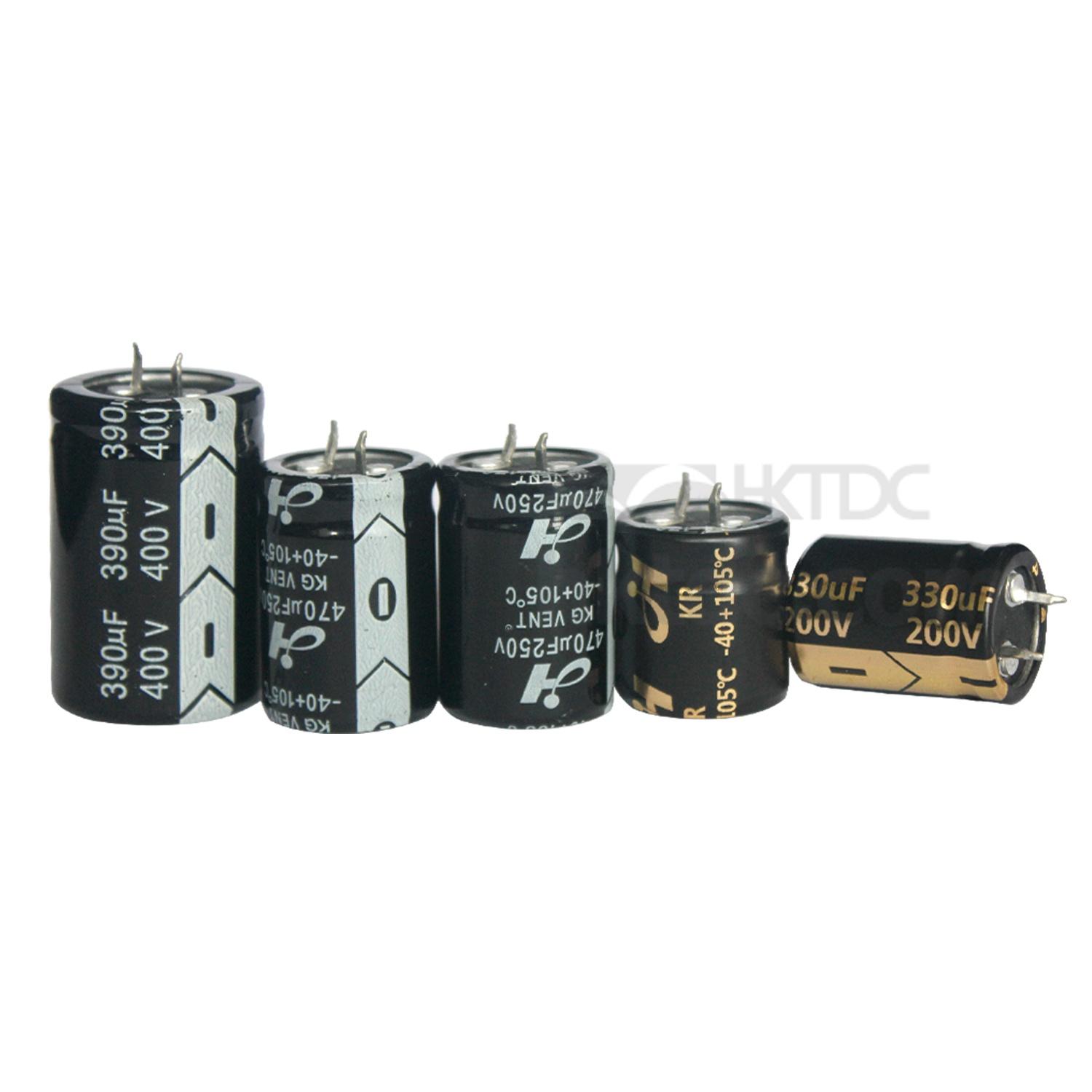

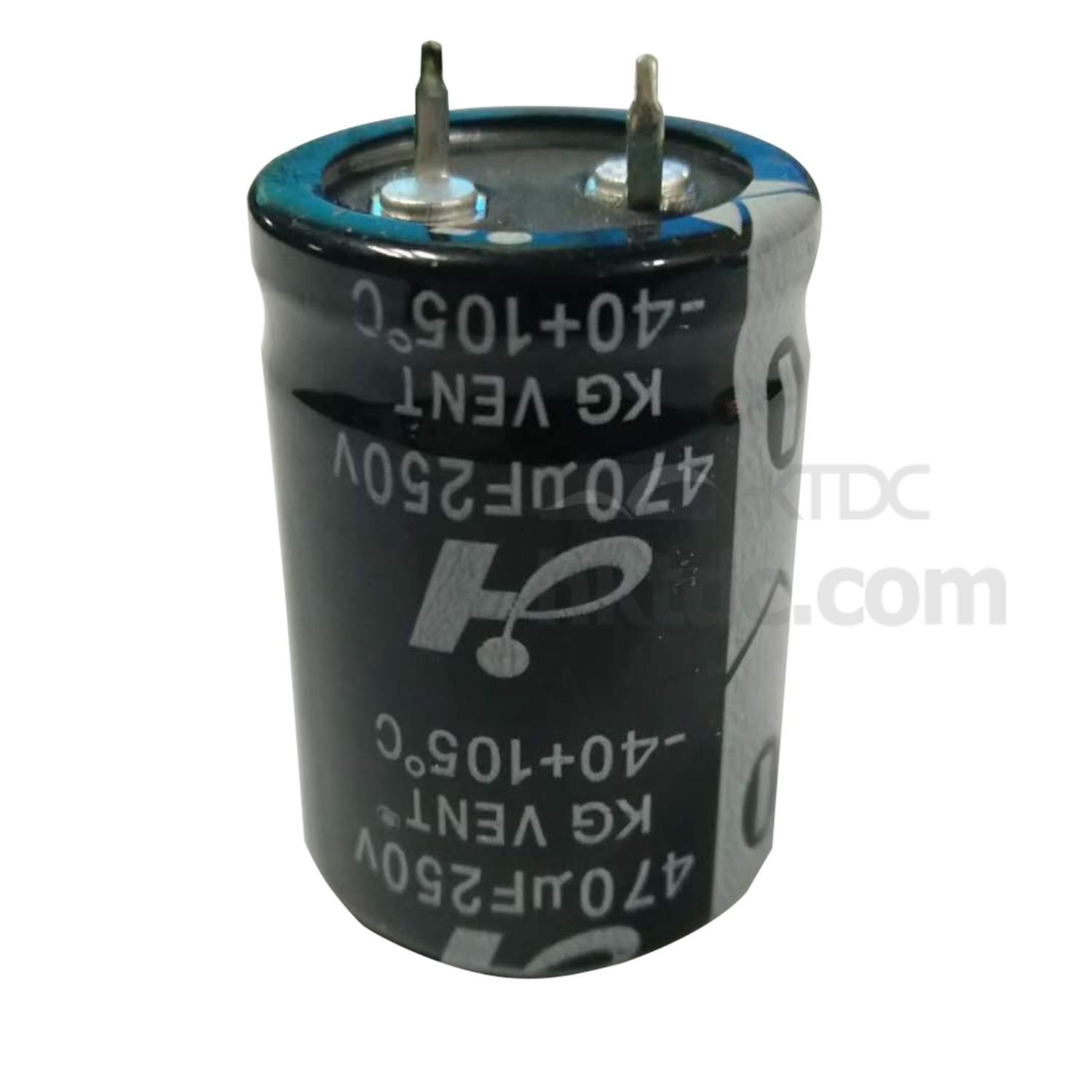

Snap in Type
Model No.:
KG/KR/KU
Brand:
JH
Colour:
Green, Black, Gold, Purplish Blue
Port:
Shenzhen, Shanghai, Changsha
Type of Payment:
T/T, L/C
Minimum Order Quantity:
50,000 piece(s)
Package:
Yes
Customised:
Yes
Description
Contact Supplier
Description
- Rated Working Voltage Range
- 额定工作电压范围. 6.3V-450V
- Category Temperature Range
- 工作温度范围 -40℃~+105℃
- Capacitance Tolerance 静电容量允许偏差 ±20%(20℃,120HZ)
- Leakage Current 漏电流(2分钟) WV≦100V WV≧160V I=Leakage Current(μA) 漏电流
- I≦2√CV uA I≦3√CV uA C=Rated Capacitance(μF)
- 容量
- V=Rated Voltage (V)额定电压
- Dissipation Factor(MAX)
- (DF) 20℃,120HZ
- Working Votage 额定电压(V) 6.3~10 16 25~35 50~63 80~100 160~400 450
- DF（%） 损失角正切值 50 40 35 25 20 15 20
- Low Temperature Characteristics (Max impedance Ratio) 低温特性（阻抗比）
- Working voltage 额定电压(V) 6.3~16 25 35 50~63 80~100 160~250 350~400 450
