Solar Systems
Share this page
Model No.:
ECS-SD-10-5
Brand:
Ecosol
Colour:
Silver
Size:
340mm x 290mm x 15mm, 210mm x 115mm x 165mm
Port:
Shenzhen
Type of Payment:
T/T
Minimum Order Quantity:
50 set(s)
Package:
No
Customised:
Yes
Application:
Home
Output Voltage (V):
12v/5v
Load Power (W):
60W
Specification:
Mini
Work Time (h):
10h
Solar Power (W):
10w
Description
Contact Supplier
Description

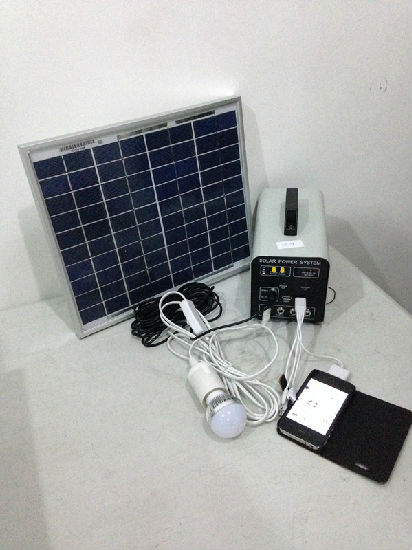

10w-5AH portable small DC solar home system

***spec: ***
1.10w poly solar panel ,with 5M long cable,size is 340*285*18mm
2.battery:5AH maintenance-free lead -acid battery .

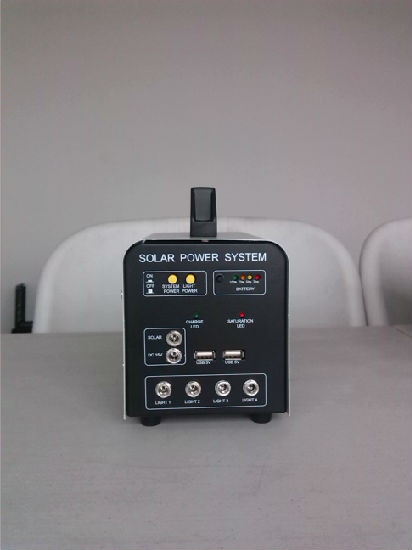

3.controller panel : 5A, overload protection and short circuit protection.

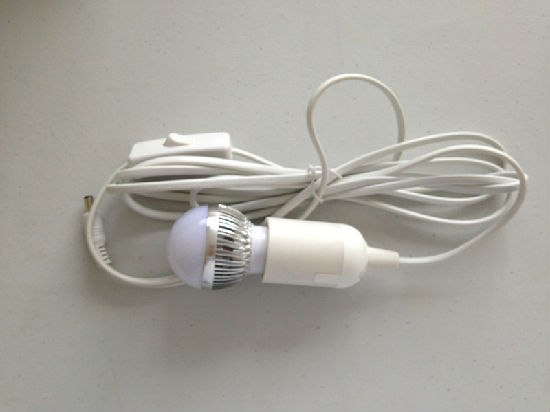

4.led lamp:3W/12v led LAMP with 3M cable ,switch,E27 holder.(optional)

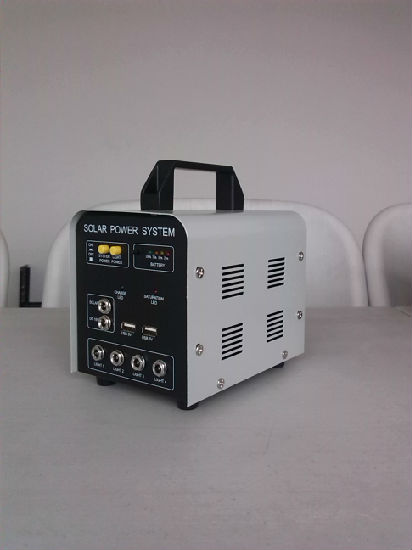

5.cabinet: 5mm steel box ,with handle,size:220*115*180mm.
6.net weight:6.5KG
7.package: cabinet box /28cm*20cm*25cm /1 carton/ 1pcs,solar panel/40cm*30cm*4cm/ 1 carton

/2pcs.
8.warranty:5years
9.produce capacity:1000sets/month
10.payment terms:100% T/T
11.optional accessories:220v-15v/1A adapter,3w/12v led bulb lamp,1-10 mobile charge

line,3w/12v mini usb fan.

***charge and discharge***
1.charging time:
solar panel:8-10hours.
main power :3-4hours.
2. discharging time:
for 3w/12v/ 1 pcs ,can use 9hours,at same time can use 3w USB fan  8hours, and charge mobile

ate the same time.
for 3w/12v/ 4 pcs ,can use 4hours,at same time can use 3w USB fan  3.5hours, and charge

mobile at the same time.
