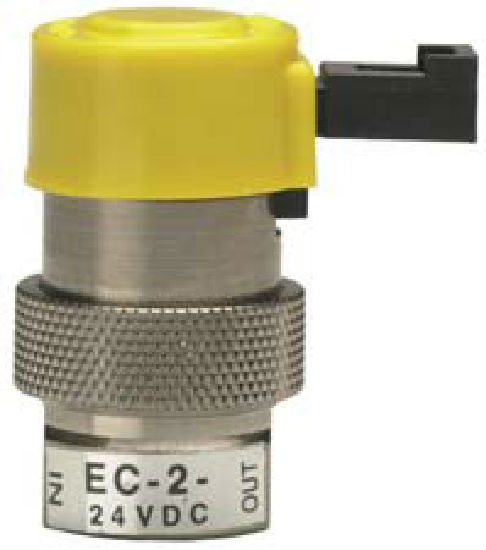

Solenoid Valve
Model No.:
EC-2-24VDC
Brand:
Clippard
Customised:
Yes
Pressure:
High Pressure
Power:
Compress air
Description
Contact Supplier
Description
Type: Normally-Closed 3-Way
Medium: Air (40 micron filtration)
Temperature Range: 30 to 180°F
Power Consumption: 0.67 watt
Response: 5 to 10 milliseconds
Mounting: In-line
Ports: #10-32
Operating Range: 90% to 150% of rated voltage
Air Flow: 0.6 scfm @ 100 psig; 17 l/min @ 7 bar
“L” option - 0.5 scfm @ 50 psig; 14 l/min @ 3.5 bar
“H” option - 0.45 scfm @ 25 psig; 13 l/min @ 1.8 bar
Pressure Range: 28” Hg Vac. to 105 psig; 0 to 7 bar max
“L” option: 28” Hg Vac. to 50 psig; 0 to 3.5 bar max
“H” option: 28” Hg Vac. to 25 psig; 0 to 1.8 bar max
Medium: Air (40 micron filtration)
Temperature Range: 30 to 180°F
Power Consumption: 0.67 watt
Response: 5 to 10 milliseconds
Mounting: In-line
Ports: #10-32
Operating Range: 90% to 150% of rated voltage
Air Flow: 0.6 scfm @ 100 psig; 17 l/min @ 7 bar
“L” option - 0.5 scfm @ 50 psig; 14 l/min @ 3.5 bar
“H” option - 0.45 scfm @ 25 psig; 13 l/min @ 1.8 bar
Pressure Range: 28” Hg Vac. to 105 psig; 0 to 7 bar max
“L” option: 28” Hg Vac. to 50 psig; 0 to 3.5 bar max
“H” option: 28” Hg Vac. to 25 psig; 0 to 1.8 bar max
