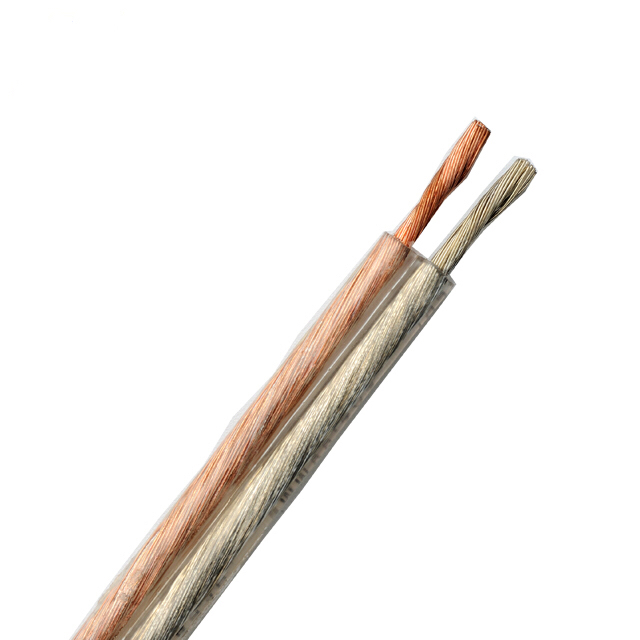

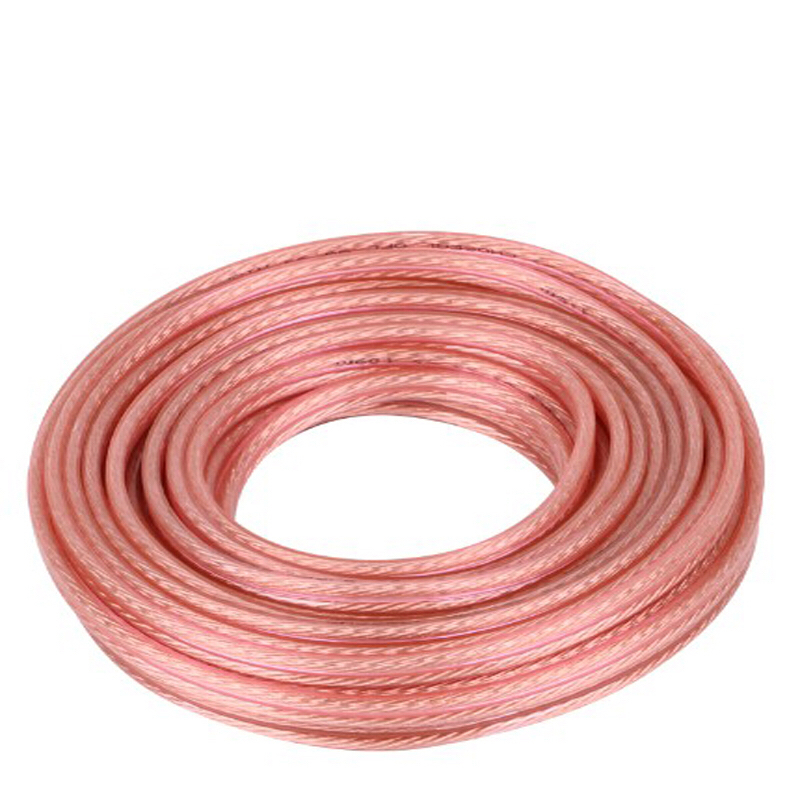

Flat Speaker Cable OFC Cable Speaker wire is used to make the electrical connection between loudspeakers and audio amplifiers. Modern speaker wire consists of two or more electrical conductors individually insulated by plastic such as PVC, PE or Teflon. The two wires are electrically identical, but are marked to identify the correct audio signal polarity.

• Speaker Cable OFC Cable Audio & Video cable
• Inner conductor: Tinned copper, bare copper or CCA
• Out jacket: PVC
• Color: transparent clear, red/black, white/black
• Transparent type
• PVC type
• Normal area
• Structure Insulation thickness
• Overall dia.
• Normal area
• Structure
• Insulation thickness
• Overall dia. (mm2) (mm) (mm) (mm) (mm2) (mm) (mm) (mm) 2x0.50 7x9/0.10 0.7 2.20x4.40 2x0.50 28/0.15 0.8 2.40x4.80 2x0.75 7x14/0.10 0.7 2.40x4.80 2x0.75 42/0.15 0.8 2.50x5.00 2x1.00 7x18/0.10 0.8 2.60x5.20 2x1.00 32/0.20 0.8 2.80x5.60 2x1.50 7x27/0.10 0.9 3.10x6.20 2x1.50 48/0.20 0.9 3.20x6.40 2x2.00 7x36/0.10 1 3.90x7.80 2x2.50 49/0.25 0.9 3.60x7.20 2x2.50 7x45/0.10 1.2 4.20x8.40 2x4.00 56/0.30 1 4.30x8.60 2x4.00 7x72/0.10 1.3 4.80x9.60 2x6.00 84/0.30 1 4.80x9.60
