Spiral Flexible Duct Machine ATM-127
Production Lead Time:
30 day(s)
Model No.:
ATM 127
Brand:
ATM, TUBEMACHINE
Port:
Shanghai port
Customised:
Yes
Description
Contact Supplier
Description

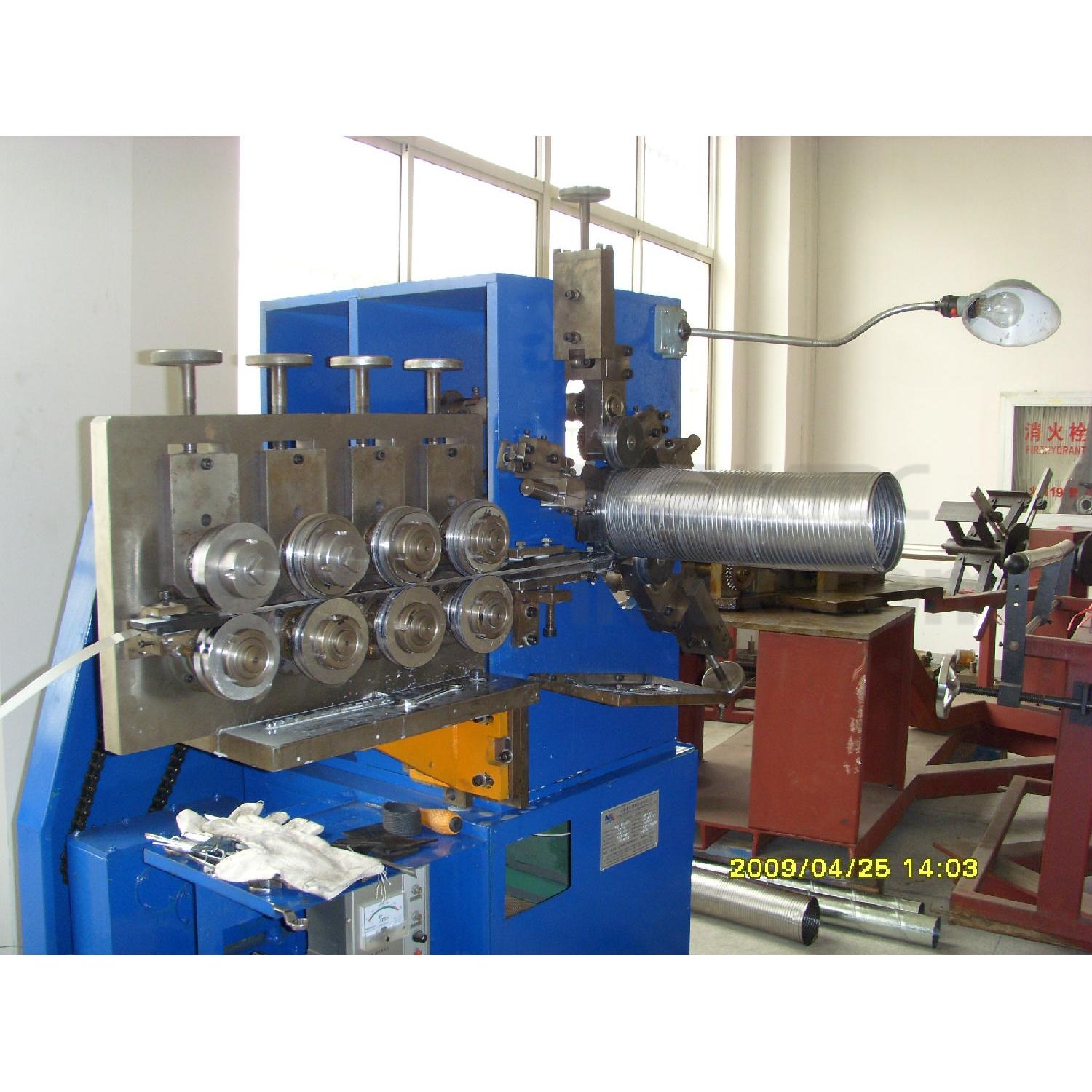

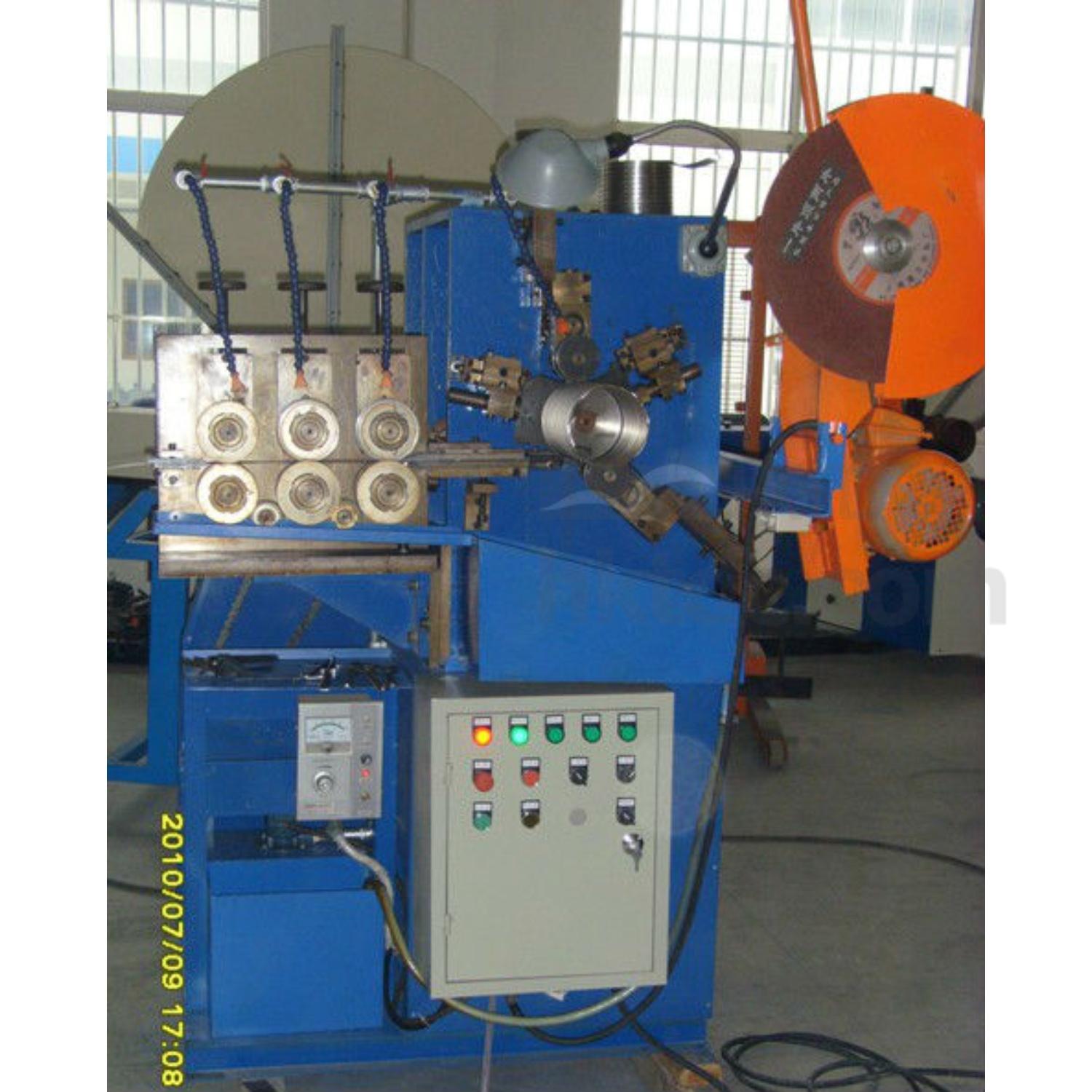

Spiral flexible duct machine ATM-127
Galvanized Steel strip: thickness 0.2mm to 0.55mm ,Strip width 25 mm;
Stainless Steel strip: thickness 0.2mm to 0.40mm ,Strip width 25 mm;

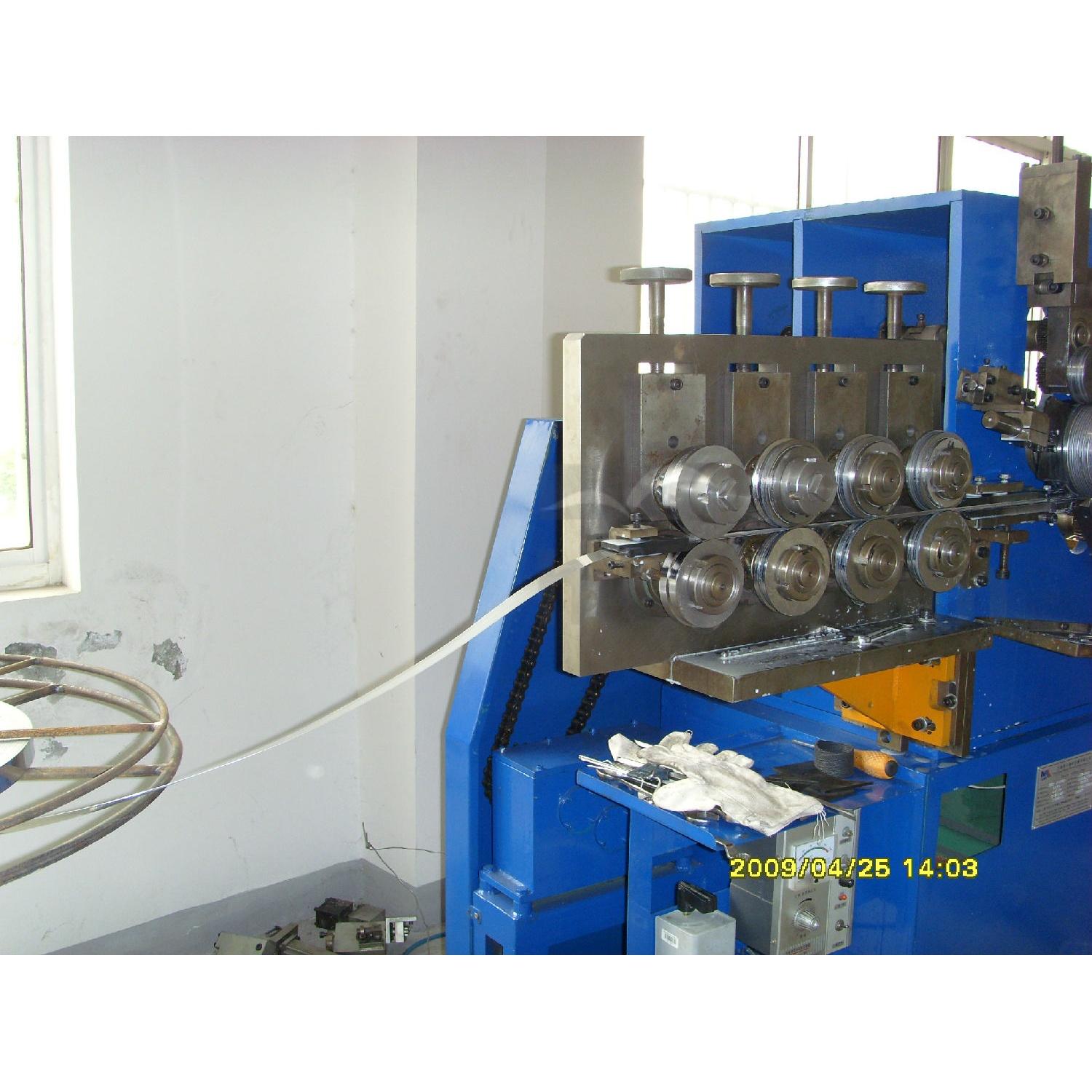

With 4 strip rollers 105mm dia., and 3 round rollers 80mm dia.

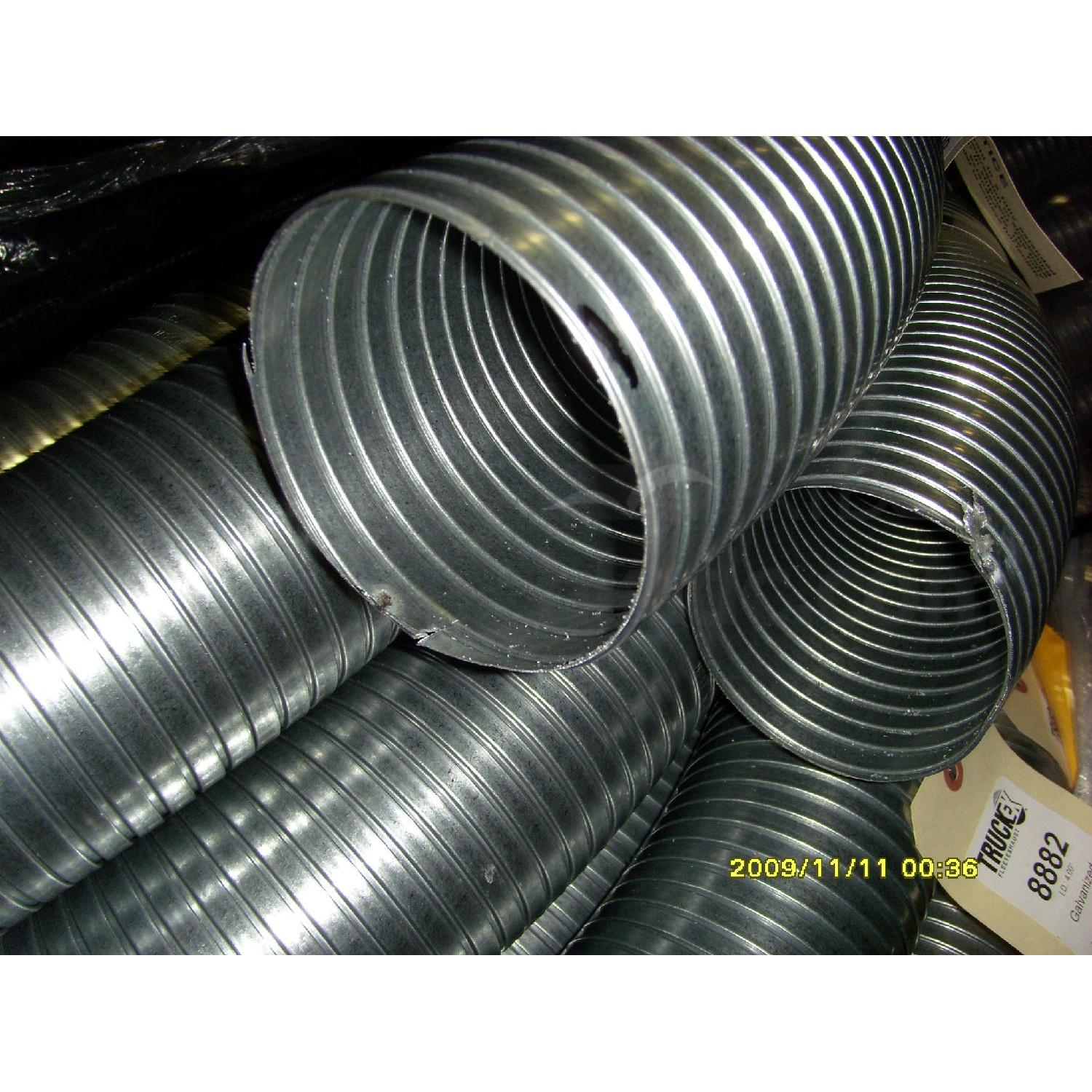

Duct diameter : 65mm--150mm,(2.5”--6”)
Working speed: 0m/min --- 7m/min. the speed can be adjusted
Weight: 550 Kg, Packing box: 1400 x 950 x 1750mm
Power: Main Motor : 1.5 KW, 480 volt, 60 HZ, 3 phase
Lubricant Motor : 0.75KW, 110 volt, 60 HZ, single phase
Galvanized Steel strip: thickness 0.2mm to 0.55mm ,Strip width 25 mm;
Stainless Steel strip: thickness 0.2mm to 0.40mm ,Strip width 25 mm;
With 4 strip rollers 105mm dia., and 3 round rollers 80mm dia.
Duct diameter : 65mm--150mm,(2.5”--6”)
Working speed: 0m/min --- 7m/min. the speed can be adjusted
Weight: 550 Kg, Packing box: 1400 x 950 x 1750mm
Power: Main Motor : 1.5 KW, 480 volt, 60 HZ, 3 phase
Lubricant Motor : 0.75KW, 110 volt, 60 HZ, single phase
