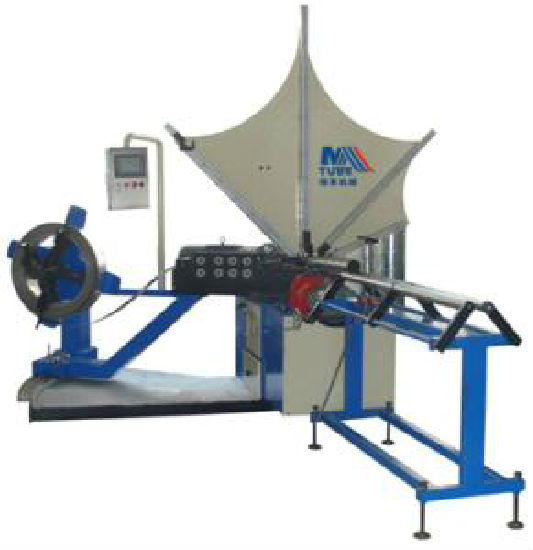

Spiral Tube Forming Machine

This machine line is for producing round air duct for various uses, such as for HVAC round ducts, oval ducts, chimney flue, etc.

Advantages:
1. Special mould for various tube diameters, very easy to change
And adjust, no needs crane or too much manpower.
2. Large diameter range
3. High speed synchro flying cutting system.
4. Japan Omron transducer&PLC control, convenient operation.
5. Light and small, suitable for site work.
6. Perfect swage, without leakage

Main technical data:

• Diameter Range: 85-1500mm
• Maximum Tube Length: Unlimited mm
• Thickness of Strip: 0.35-1.2mm
• Width of Strip: 137-140mm
• Strip Speed: 1-40m/min
• Suitable Material: Aluminum, Stainless steel, Galvanized steel, etc
• Dimension (LxWxH): 2350mm x 2200mm x 2580mm
• Weight: 2000kg
• Main Motor Power: 5.5kW
• Cutting Motor Power: 4kW
• Air Pressure: 0.5-0.7Mpa
• Control System: Japan Omron transducer & PLC

Our company:
Our main products: Spiral tube forming machine, flexible duct forming machine, auto roof forming machine, riveting machine, Pittsburgh seam lock machine. Hydraulic section steel bending machine, metal sheet flange forming machine, TDF hydraulic folder, auto cutting to length line, pipe bending machine, FN seam welder, notching and shearing machine.

Our certificate:
1. CE
2. ISO901: 2000

Please contant us at any time available for you, if you want for more details.
