Spray Nozzle
Production Lead Time:
10 day(s)
Model No.:
ZLT-JL1
Brand:
ZLTJC
Colour:
White
Type of Payment:
T/T
Minimum Order Quantity:
1 piece
Package:
Yes
Type:
Voltage Tester
Description
Contact Supplier
Description

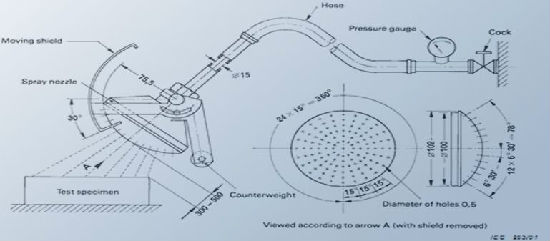

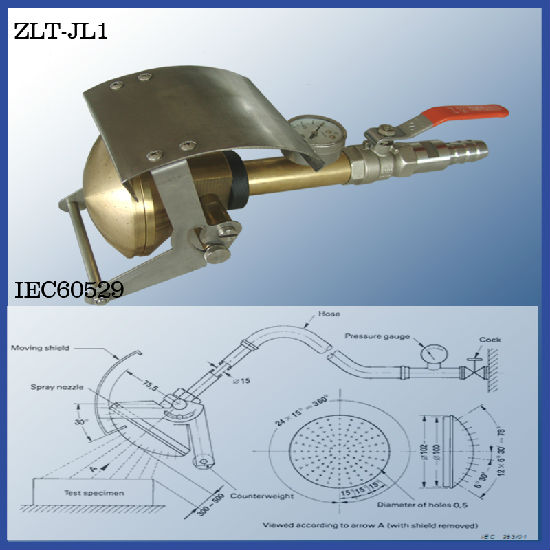

Determine the water resistance of products checking them against jets of water with this professional device. The degrees of housing protection is demonstrated with second characteristic numerals such as grade 3 “protected against spraying water” and grade 4 “protected against splashing water”, in accordance with IEC60529 figure 5, IEC60335 clause 15.1.1, IEC60598.
- Standard components:
- 1 nozzle head: outside diameter 102mm, radius 75.5mm, with 121 holes of 0.5mm diameter; in two parts, dismountable for cleaning and deliming.
- 1 removable moving shield with counterweight, to screen all jets which deviate more than 60° from the vertical, independent of the nozzle direction.
- 1 handle: internal diameter 15mm, handle sleeve of plastic.
- 1 flow control and stop valve with hose connection.
- 1 hose: 19mm diameter, 3m long, with 2 hose clamps.
- Nozzle head and small parts made of brass, all other metallic parts made of stainless steel.

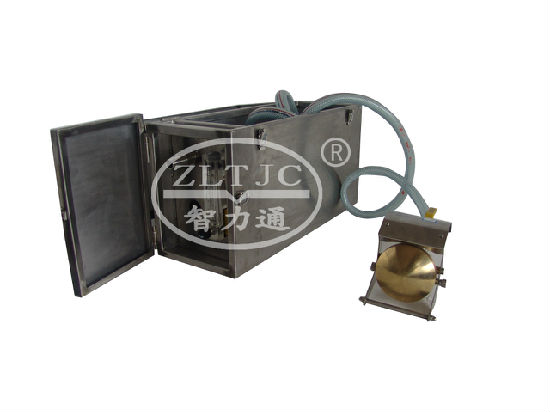

- Model: ZLT-JL1A, as type ZLT-JL1, with 1 flow meter and 1 stainless steel box, measuring range 10l/min±5%.
