Square Core and Flat Wire Common Mode Choke Inductor

Production Lead Time:

3 day(s)

Brand:

XP POWER

Port:

Shanghai

Type of Payment:

T/T, L/C

Minimum Order Quantity:

1,000

Package:

Yes

Customised:

Yes

Description

Contact Supplier

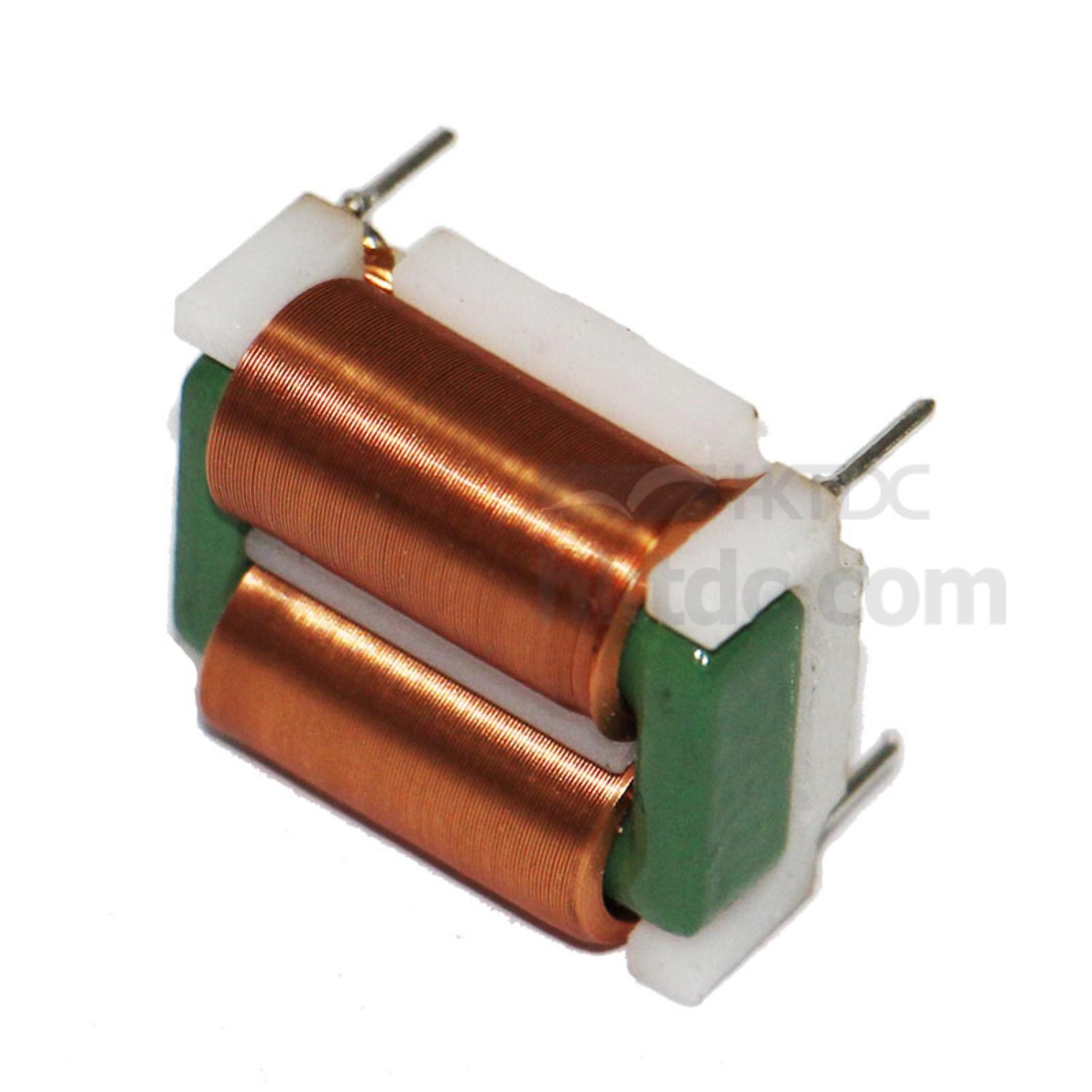

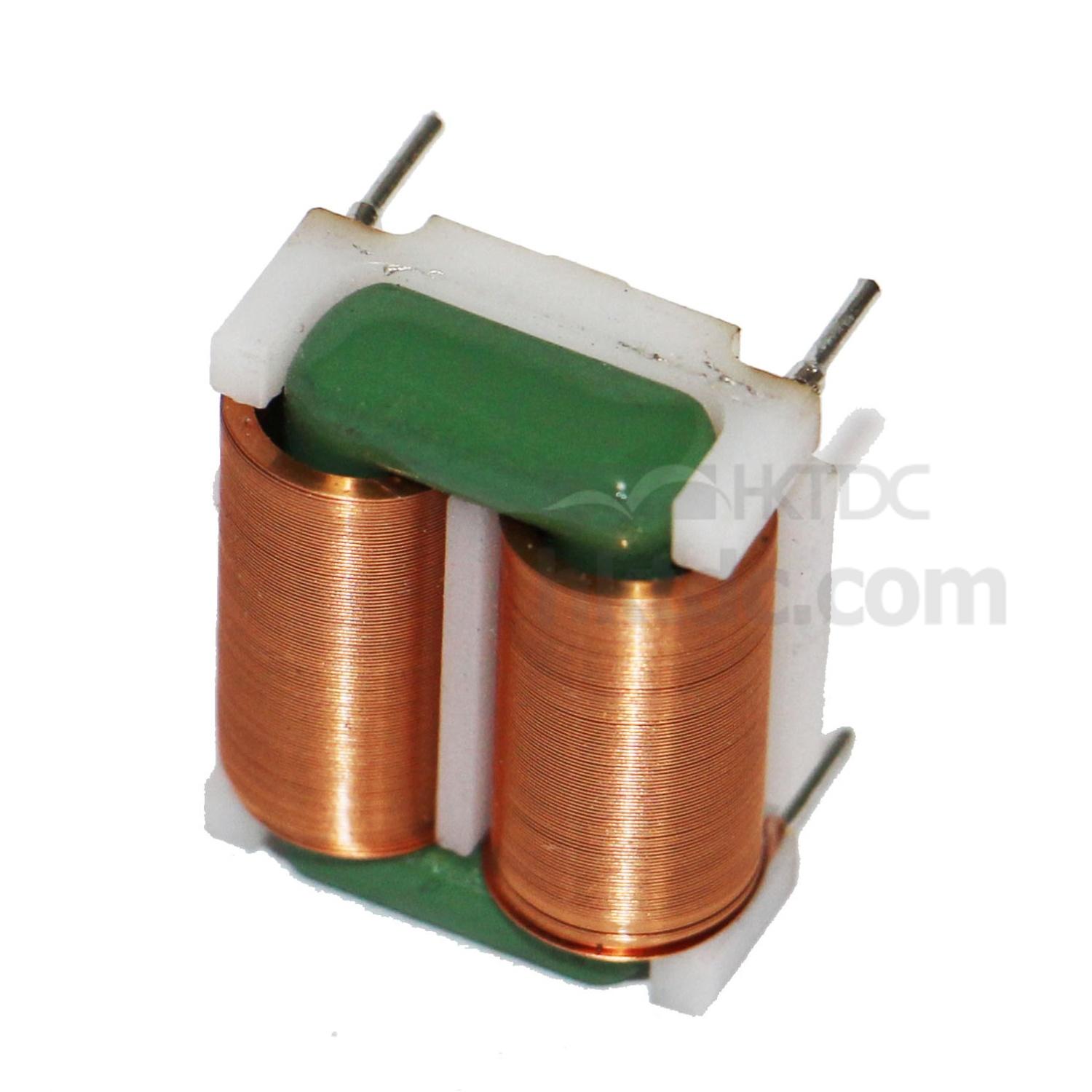

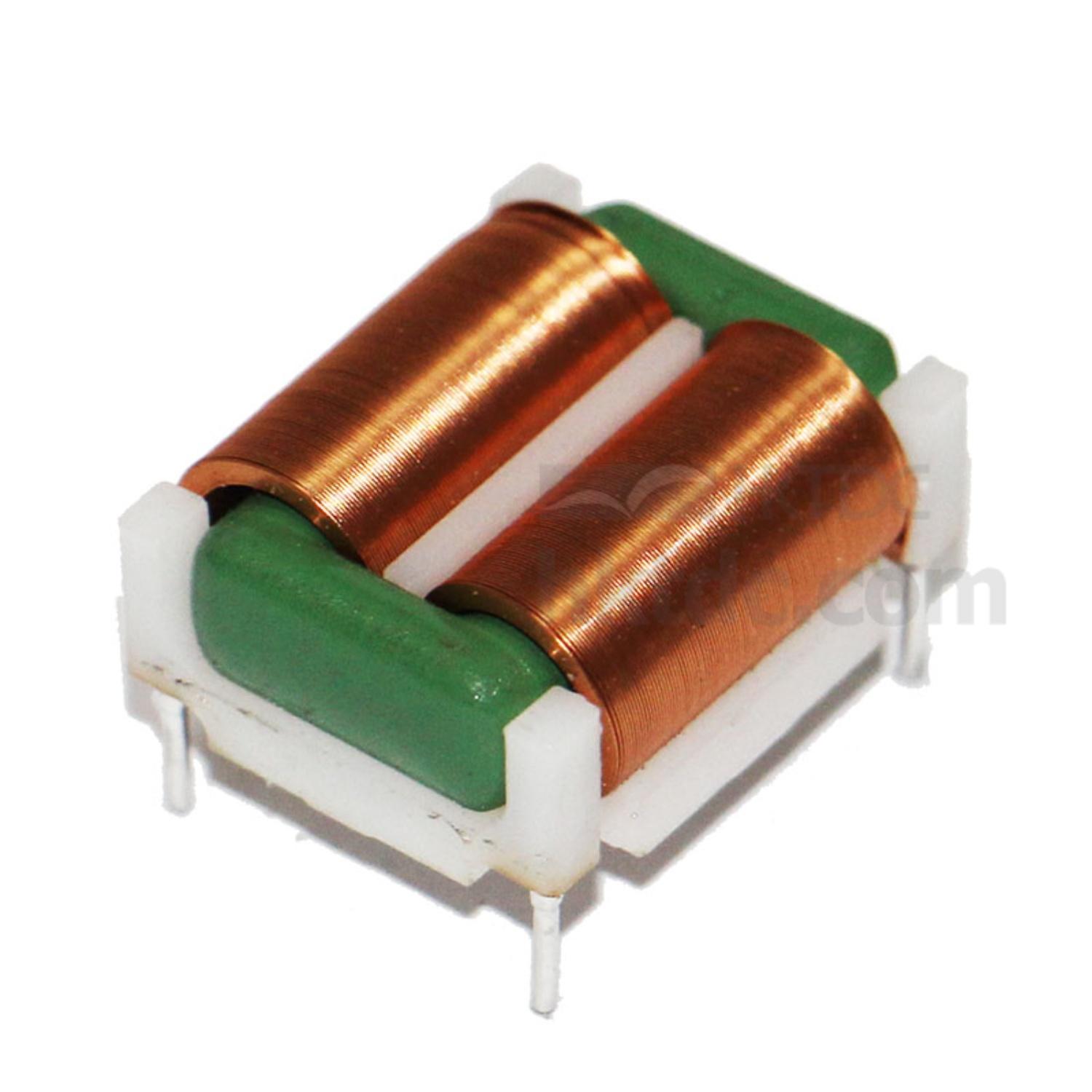

Square Core and Flat Wire Common Mode Choke Inductor
Features & Application
Separated windings for minimum interwinding capacitance
Single layer windings for highest common mode impedance over the widest frequency range
OR wound on nylon casing to protect windings
Spacer provides 1-3mm creepage distance for UL, CSA, IEC compliance
All materials used are UL94-VO recognized
Operating temperature: ﹣40℃ to +105℃. Suitable for 50Hz to 500 KHz

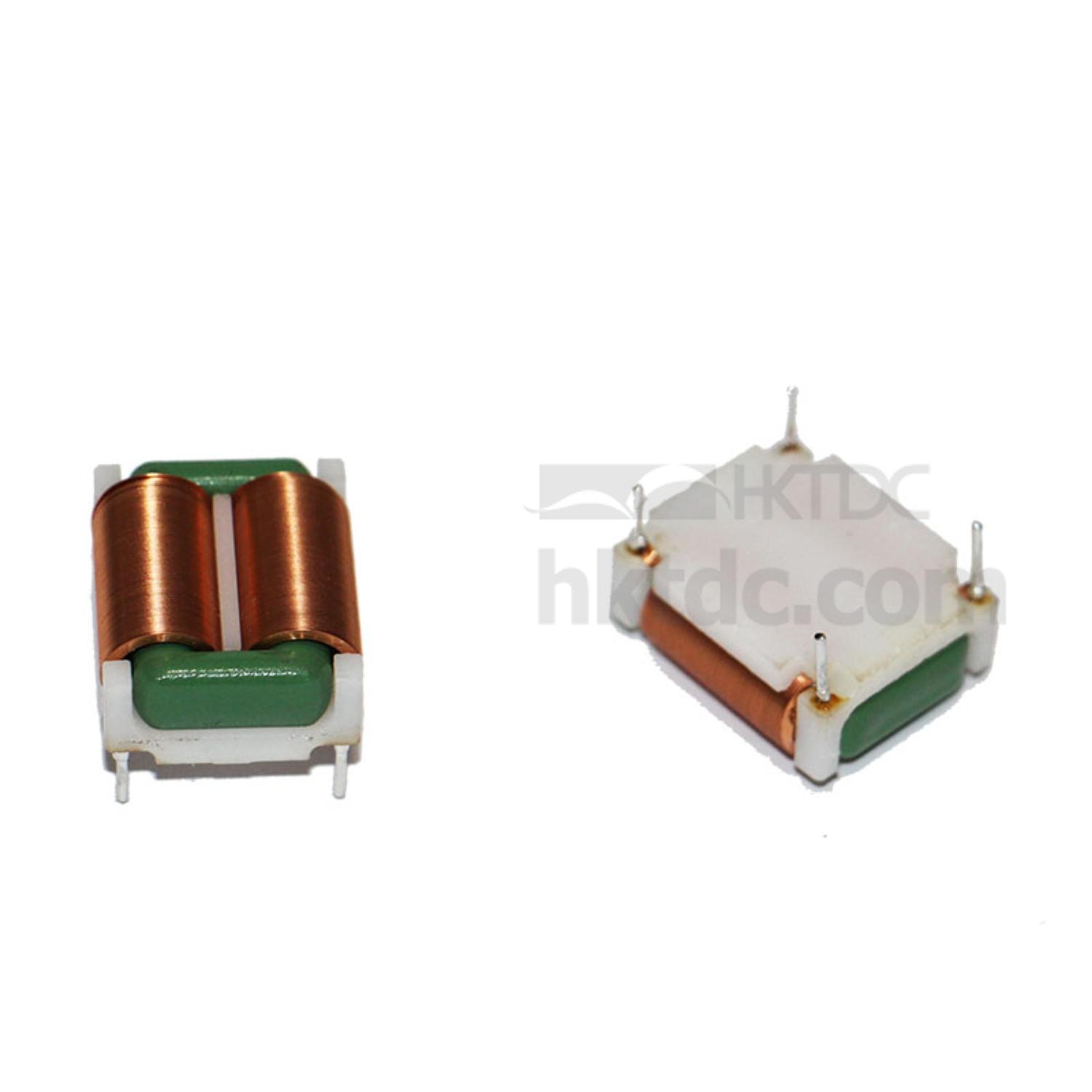

Available in either vertical or horizontal mount
Application includes power line filtering, EMI/REI for switch mode power supplies
Available in vertical header mount for ease in PCB assembly
Easy FR-4 board mounting Good vibration resistance
