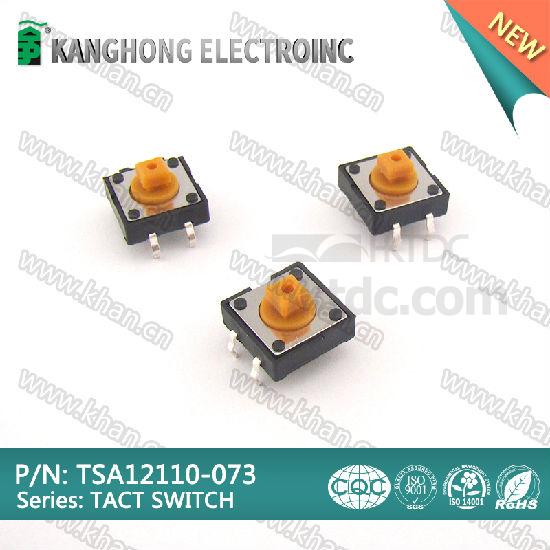

Square Stem TACT SWITCH TSA12110-073
Model No.:
TSA12110-073
Brand:
khan
Colour:
black body case with yellow stem
Size:
12*12*7.3mm
Port:
Ningbo, Shanghai
Type of Payment:
T/T,Western Union,MoneyGram,paypal
Minimum Order Quantity:
1000pcs
Package:
Yes
Customised:
Yes
Max. Voltage:
12VDC
Operating Temperature:
-25~+70
Max. Current:
50mA
Mechanical Life:
150,000 cycles above
Max. Working Pressure:
280gf±50gf
Protection Level:
IP64
Description
Contact Supplier
Description
P/N: Square stem TACT SWITCH TSA12110-073
Technical feature of tact switch
1、Environmental Temperature -25～+70℃
2、Relative Humidity (40℃)≤95%
3、Rated Load DC12V.50mA
4、Contact Resistance ≤0.03Ω
5、Insulation Resistance ≥100MΩ
6、Withstand Voltage AC250V 50Hz/1min
7、Electric Life 10 0000 Cycles Min
8、Operation force 280±50gf
9、Travel 0.3±0.1mm
Technical feature of tact switch
1、Environmental Temperature -25～+70℃
2、Relative Humidity (40℃)≤95%
3、Rated Load DC12V.50mA
4、Contact Resistance ≤0.03Ω
5、Insulation Resistance ≥100MΩ
6、Withstand Voltage AC250V 50Hz/1min
7、Electric Life 10 0000 Cycles Min
8、Operation force 280±50gf
9、Travel 0.3±0.1mm
