OCL-1183W PRT1

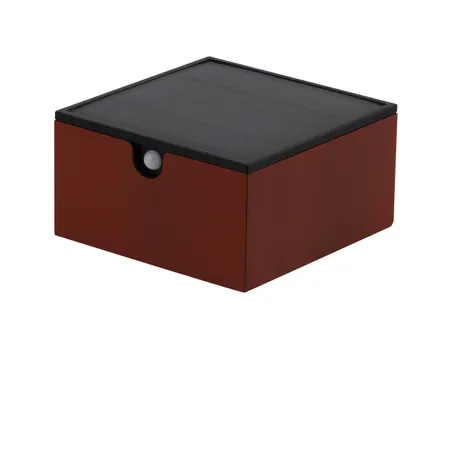

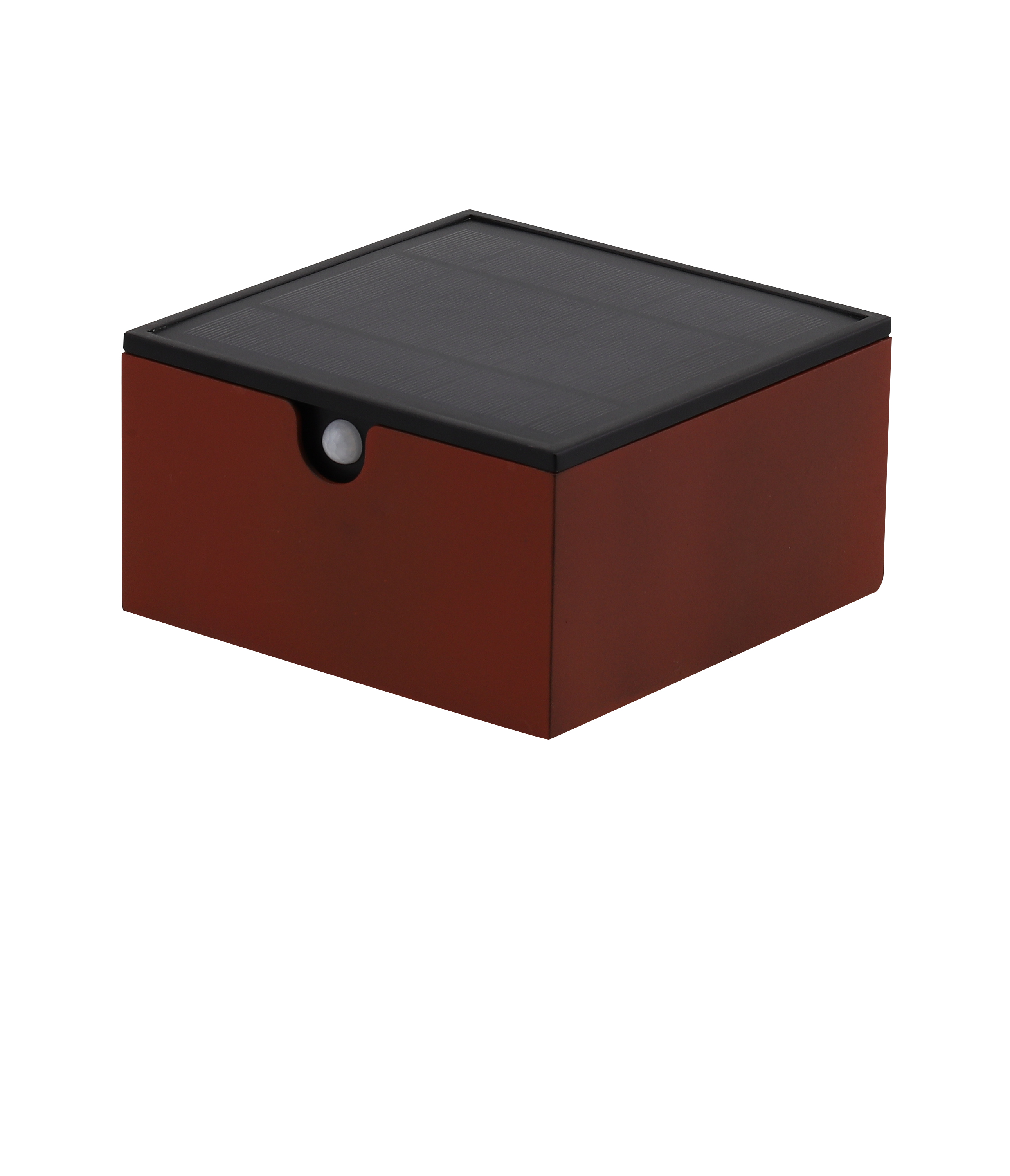

Rusty Plastic square lampshade .

Solar module V7.

2835LED, 2.0W, 3000K, 200lm, Ra82, IP44.

Solarcell power : 2.5W. 18650 Li-ion Rechargeable Battery: 3.7V 2600mAh.

(Battery replaceable) 3-Step dip switch (PIR/Off/On)

On : Dusk to Dawn mode, lumen output is 100%.

PIR: Dusk to Dawn mode with PIR sensor. Lumen Output is 100% while PIR sensor detects motions in the detectable range, otherwise it will keep 30% of lumen output always. Range max. 5 m, holding time 25S.

Battery charging time 0-100%: ca. 5 hours (Directly in the sun).

Operating time: ca. 5 hours @ On mode.

Operating time: ca. 5~16 hours @ PIR mode.

Shade Size: 150x150x75 mm

Module size : 150x150x29 mm
