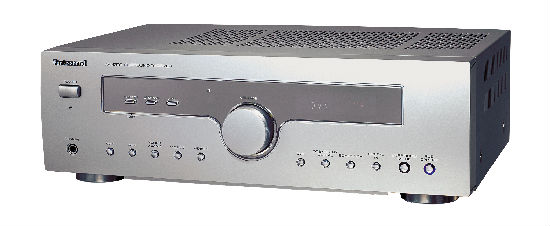

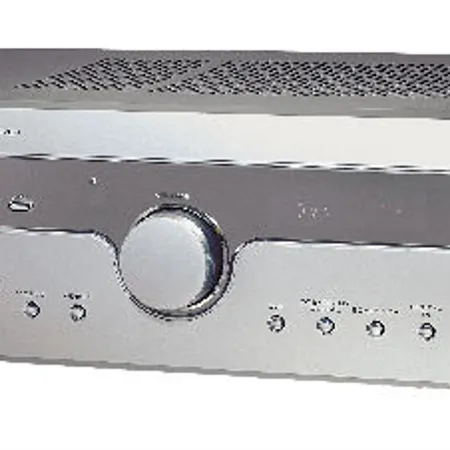

Displayed here is a stereo amplifier with a brushed metallic toned housing in rectangular shape. It has a VFD display and comes with a remote for control. This stereo amplifier supports Bluetooth connectivity and can stream music from your smartphone or other devices.

Features:

• VFD display.
• V1: stronger current output toroidal transformer.
• V2: high efficient SMPS.
• Bass/treble +/-10dB tone control.
• Balance control:
• Wireless stereo Bluetooth module (48 k 24 bit digital out).
• USB: audio playback and mobile phone charge.
• Source inputs: tuner, phono, BD/DVD, CD, AUX, USB, Bluetooth, EQ.
• Analog audio output: record out.
• Remote system control.
• Surround expansion effect (connected to 4 speakers).
• Rectangular shape.
• Brushed metallic toned housing.
• Ventilation holes on top.
• Excellent sound quality.
• Great for streaming music from your smartphone or other devices.

Bluetooth module features and specifications:

• Sampling rate: 44.1 k or 48 k/24 bit (I2S or SPDIF).
• THD: 0.003% at 1 k.
• S/N: 95 dB.
• Frequency range: 20 Hz-20 kHz, ±0.5 dB (MP3 frequency response below 16 kHz).
• Remote handset control mobile phone through Bluetooth: play/pause, skip, disconnect.
• Transmission distance: over 10 M (barrier free).
• Bluetooth size: 49.6 (L) x 29 (W) x 13.8 (H) mm.
• Bluetooth “aptx” option (charge royalty fee).

Specifications:

• V1 100W x 2CH (RMS, 6 ohm, @10%THD).
• 80W x 2CH (RMS, 4-6 ohm, @1%THD) (20Hz-20 kHz).
• V2 50W x 2CH (RMS, 4-6 ohm, @1%THD) (20 Hz-20 kHz), SNBS.
• Signal/noise ratio: 94 dB (A weighted).
• Total harmonic distortion: <0.01% (Vin: 200 mV, 1 W output).
• Frequency response: 20 Hz – 60 kHz.
• Channel separation: >70 dB.
• Audio analogue input sensitivity/impedance: 200 mV/47 kohm.

Tuner:

• FM 87.5 MHz-108 MHz.
• Sensitivity: 1 uV (30 dB S/N).
• FM preset 30 stations.
• THD: FM 0.7%.
• Signal/noise ratio: FM 68 dB.
• Antenna input: FM 75 ohms unbalance.

Optional:

• HDMI 4 in, 1 out.

General:

• Main voltage: 120V~60Hz or 220-240V~50Hz.
