Stereo Tri-Tone Audio Control Headphone Amplifier | Consumer Electronics

SYBA Tech Limited

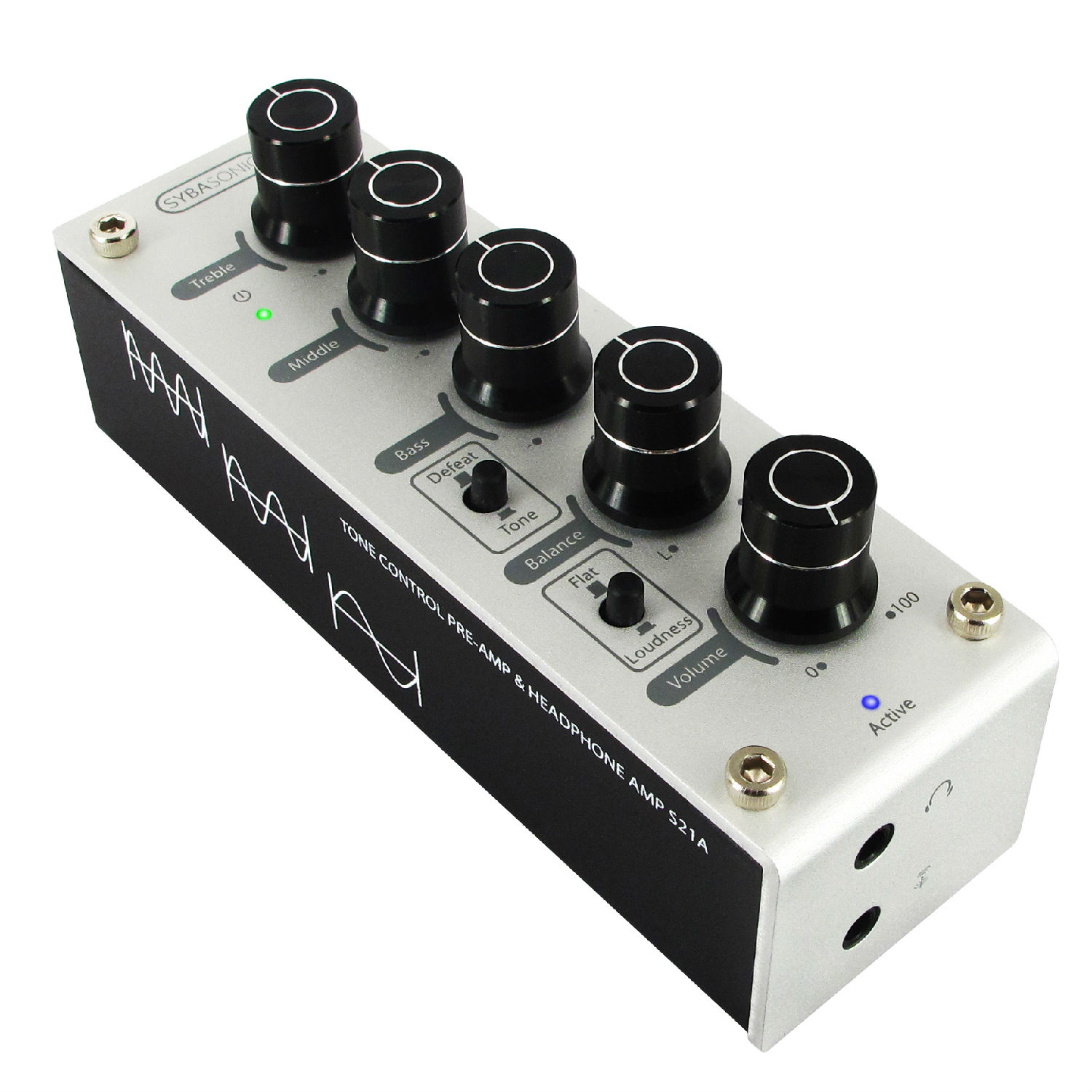

Stereo Tri-Tone Audio Control Headphone Amplifier

Production Lead Time:

42 day(s)

Brand:

SYBASONIC

Colour:

Silver

Port:

Hong Kong

Type of Payment:

PayPal

Minimum Order Quantity:

Place of Origin:

Mainland China

Package:

Yes

Customised:

Yes

Description

Contact Supplier

Stereo Tri-Tone Audio Control Headphone Amplifier

Feature & Specification:

Quad Opamp design

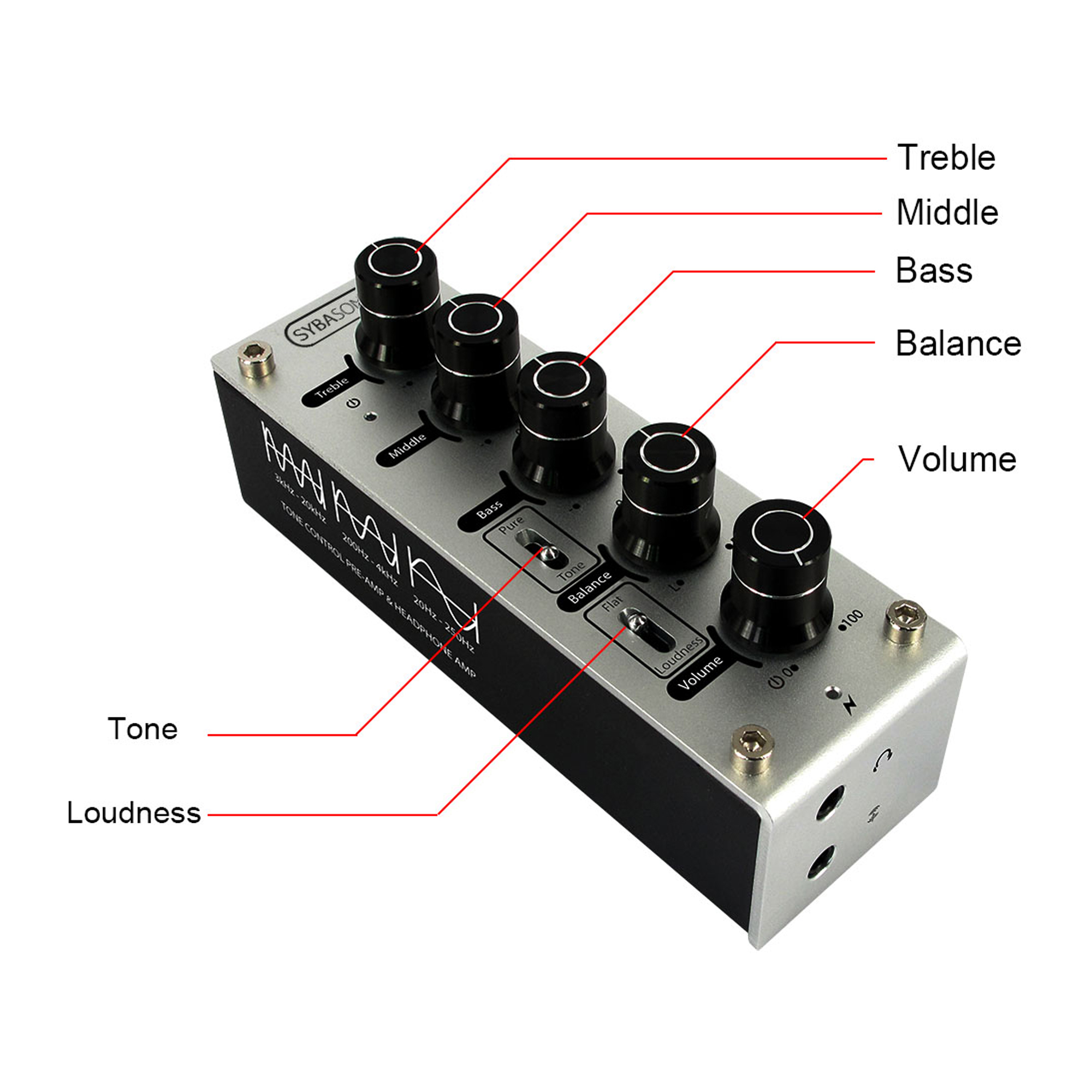

Tri-Band Tone Control
- Treble ;
  - Control Range: 3KHz-20KHz ;
  - Trim Range: -12dB to +12dB ;
  - Center Freq: 18KHz ;
- Middle ;
  - Control Range: 200Hz-4KHz ;
  - Trim Range: -10dB to +10dB ;
  - Center Freq: 1KHz ;
- Bass ;
  - Control Range: 20-250Hz ;
  - Trim Range: -14dB to +14dB ;
  - Center Freq: 20Hz ;
Audio channel balance control
Independent opamp for each channel to minimize the crosstalk
Integrated isolation power to boost 5V to +/-12V
SNR: around 112dB (A-weighting)
THD: 0.003%
3.5mm headphone output & Line output
Headphone Drive Ability: 16 - 600ohm
Max. Headphone Output power:
- around 200mW / 16ohm ;
- 120mW / 32ohm at 1KHz;
Hardware Loudness EQ
Direct switch for bypass hardware tone control
Integrated de-pop function for suppress pop noise during PC power-up and shutdown
