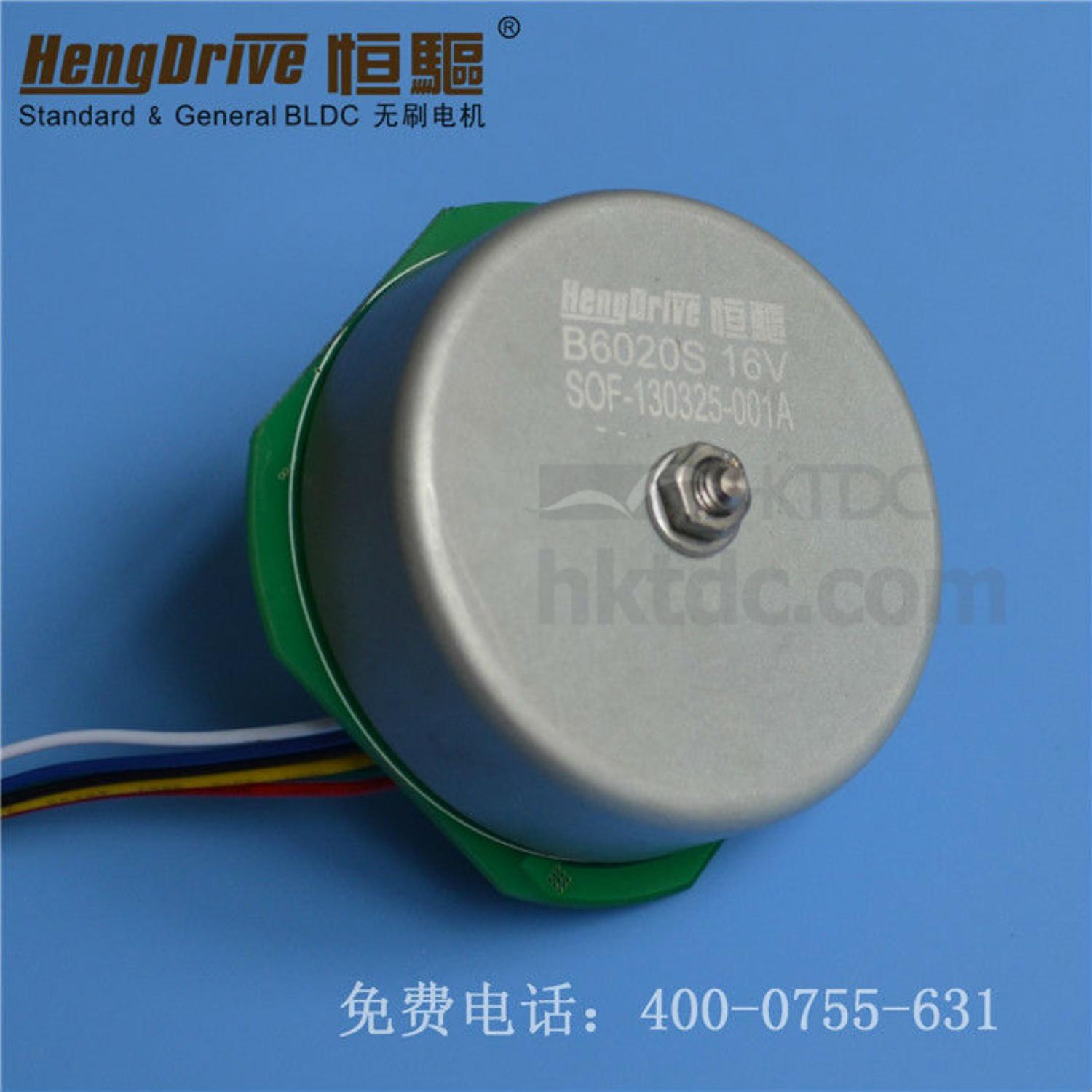

B6020S Outer motor
Output Power: 5W~80W Weight: 305g (Approx.)

Brushless DC Motor-Typical Application
Home Application: White Goods, Small Appliance, Electric Fanner, Stirrer, Cross-flow Fan
Medical Apparatus: Medical Pump, Medical Stirrer, centrifugal Machine
Industry Equipment: Air Compressor, Electric Valve
Business Equipment: Printer, Copier, Projector, ATM, Vending Machine, Shredder
Personal Care: Hair Dryer, Massager

Specification:

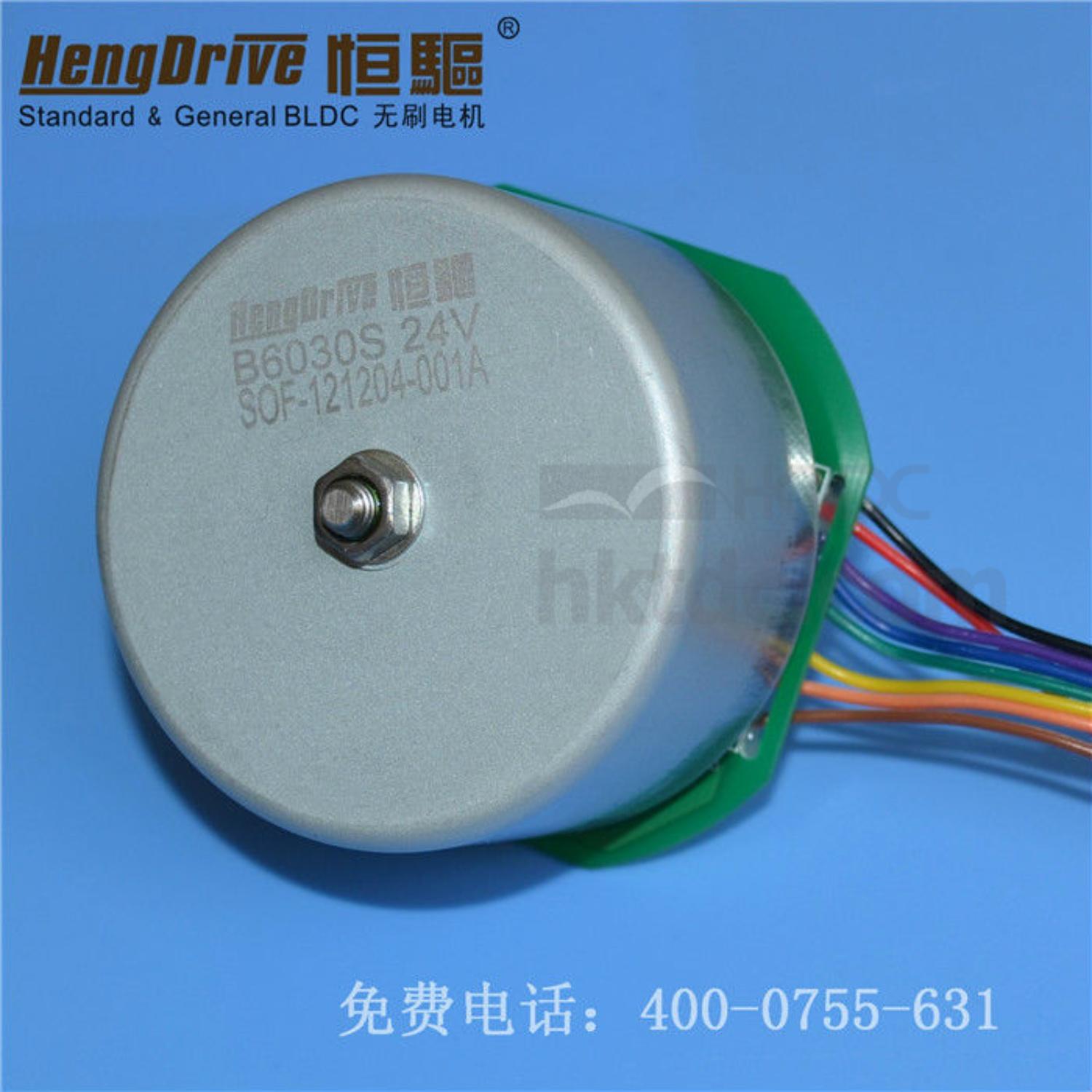

Model B6030S-S01
Voltage(V): 24

No Load
Speed (rpm): 2990
Current (A): 0.46

Rated Load
Torque (mNm): 196
Speed (rpm): 2220
Current (A): 2.48
Output P. (W): 45.6

Starting
Torque (mNm): 762
Current (A) : 8


Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 10000-30000hrs

Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

For outline drawing and Performance curve, please visit our web to download:
