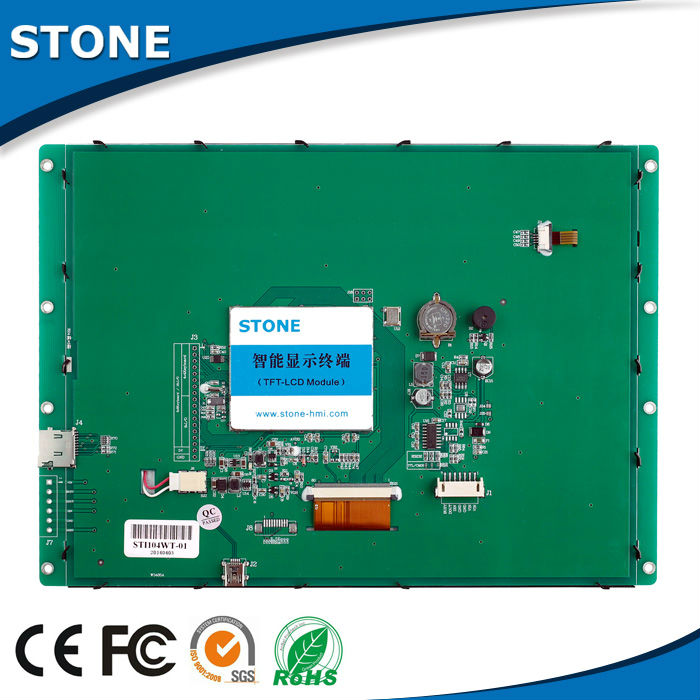

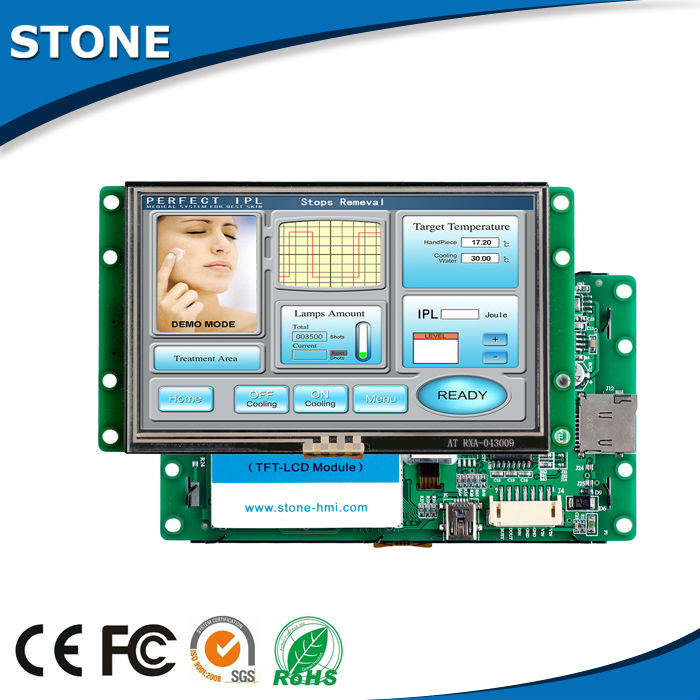

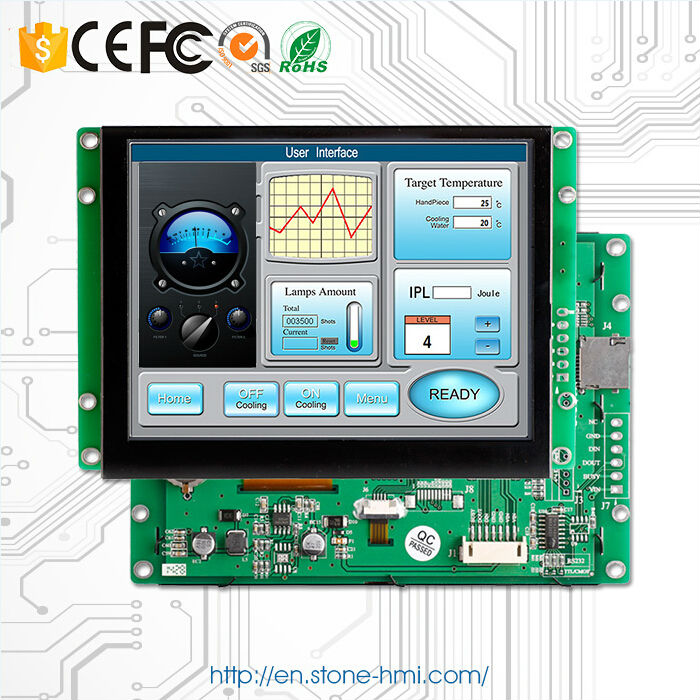

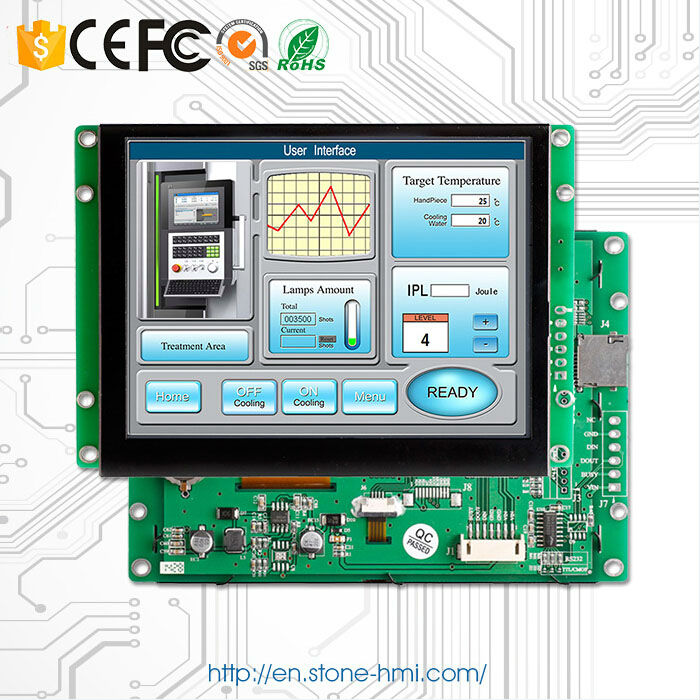

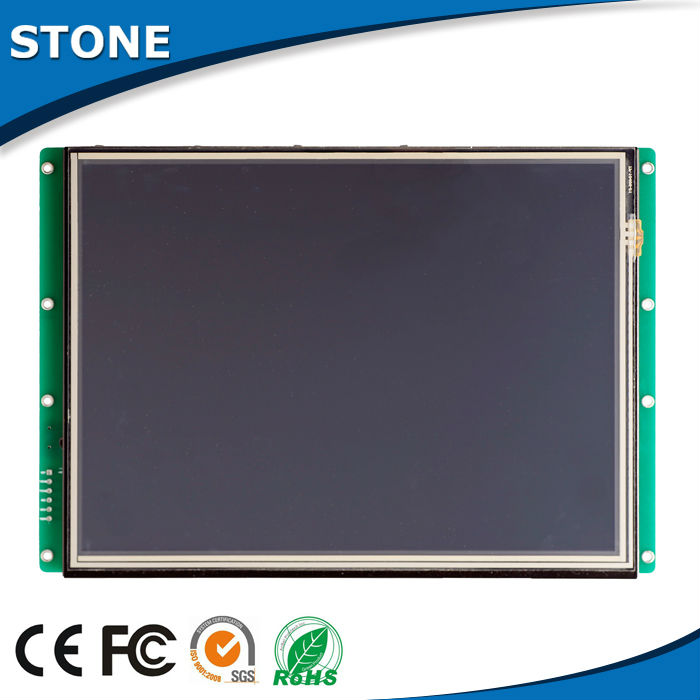

1. Product Characteristics:

With CPU & Driving Device
Controlled by any MCU
Display Picture/ Text /Curve/Vedio via Commands
65536 colour TFT display
Touch Screen
RS232/TTL UART Interface & USB port
Wide voltage range (4.5v-42v)
widely used In many Industrial field
Easy to Use! Powerful Function! Saving Cost and Time!

2. Application Method ----- Only Three Things

Step One: Design the Graphical User Interface (GUI) by art designer.
Step Two: Connect TFT-LCD Module with User’s equipment by RS232 or TTL interface directly.
(Don’t need any driver program.)
Step Three: Write the control program to any MCU to work the TFT-LCD Module vi the Commands.

3. Software Description

We offer you below three simple softwares to work with TFT-LCD Module.
Terminal Assistant: To upload pictures and files into TFT-LCD Module, and demonstrate the commands.
Touch Control Software: To create the control file.
Font Software: To create the font file.

4. Application Area ---- Widely Used In Many Various IndustrialField

Automobile
GPS, Video player, Speedometer, Audio broadcast, etc

Beauty equipment
Laser hairdressing equipment, body-shape equipment, etc

Consumer Products
Camera, DVD player, Toy, Cell Phone, Game player, etc

Electric Power
Relay protection machine, power monitoring, power-supply device, etc

Engineering Machinery
Textile Machinery, sorting equipment, Moment limiter, etc

Home Appliances
Air-condition display, Refrigerator, Electric cooker, Video doorbell, etc

IT Products
Camera, Handheld digital video, Projector, Media play, Tablet PC, etc

Medical Equipment
Anesthesia machine, Respirator, Ultrasound machine, Microwave bistouries, Therapeutic equipment, Blood pressure meter, etc

Office Automation
Printer, Scanner, Attendance machine, Fax machine, etc

Technical Equipment
Elevator controller, Vending machine, Cash register, etc

Telecommunication Devices
Telephone, Interphone, Watch, Tablet PC, Radio, etc

Transportation Traffic
Diagnostic unit, Digit dashboard, Brake engine, etc
