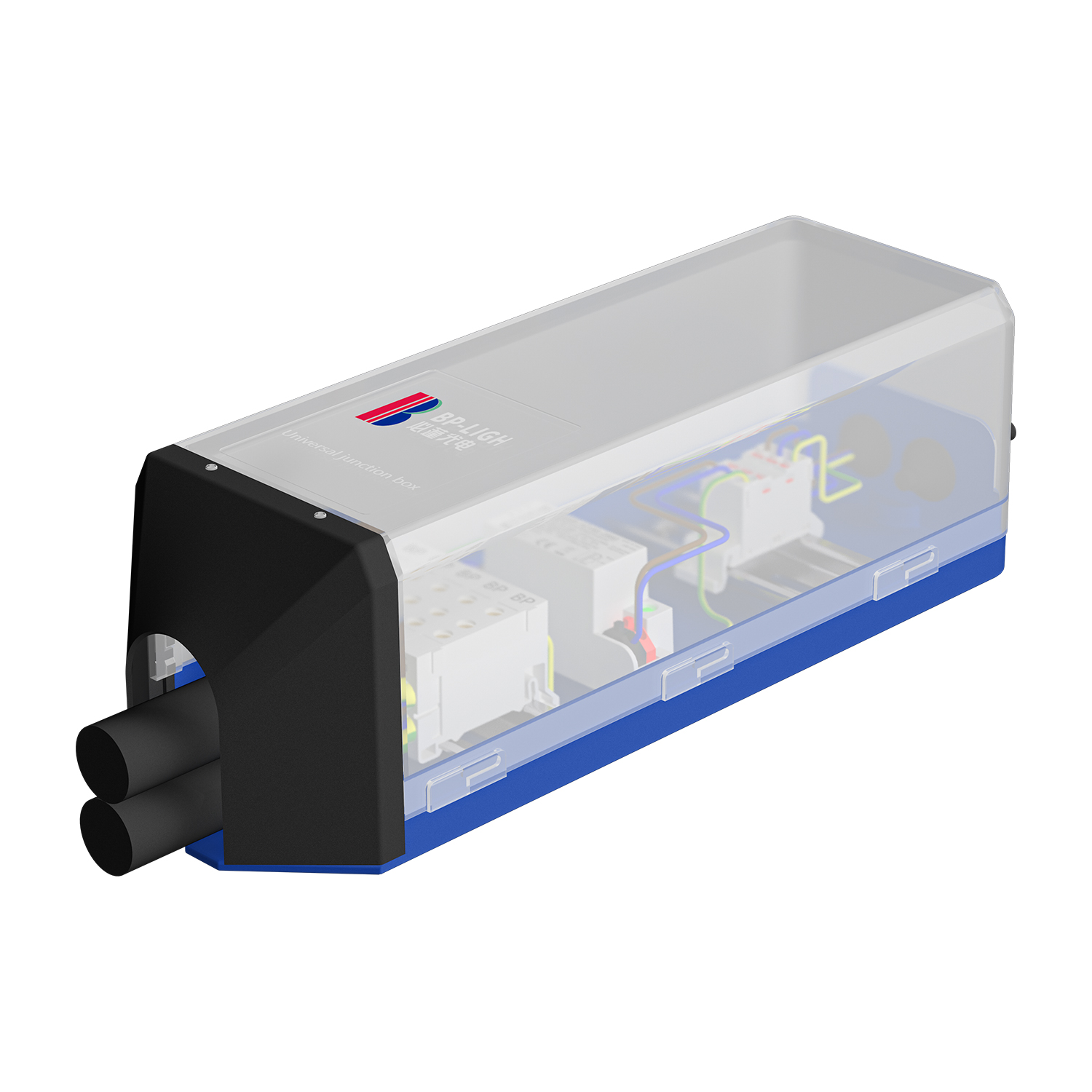

Street Light Pole Junction Box, The Essential Compact Enclosure for Outdoor Smart Street Lighting
Model:
BP-GYJ8000-O/LVP
Included Modules:
O/LVP
Certifications:
EN 61439-2,IEC 60529,EN 62262
Size:
88*93*295mm
Description
Contact Supplier
Description
The street light pole junction box is Attractive, Functional, Durable and Affordable, equipped with quick wiring terminals covering 0.5~25mm² cables. When fitted inside the street light pole, this junction box adapts to multiple outdoor lighting scenarios including landscape lighting, highway tunnel lighting and parking lot lighting.
- High Modularity
- Strong Compatibility
- Simplified Installation
- High Safety
KEY FEATURES
✓Product Advantages—Attractive, Functional, Durable, Affordable
✓High Modularity — Configurable on demand, flexible expansion and future upgrade support.
✓Strong Compatibility — Fully compatible with mainstream standard DIN rail devices without brand restriction.
✓Simplified Installation — Sliding quick-mount design greatly reduces construction and operation & maintenance costs.
✓High Safety — High-strength enclosure with IK08 impact resistance to ensure electrical safety.
APPLICATIONS
✓Smart street lights on urban main roads: integrated time control, SPD and remote communication to realize energy saving and intelligent management.
✓Landscape lighting for parks and scenic spots: modular configuration enables flexible zoning lighting control strategies.
✓Highway and railway tunnel lighting: high protection grade adapts to humid, vibrating and dusty environments.
✓Integrated PV & energy storage street lights: built-in DC power supply and protection modules to support off-grid operation.
TECHNICAL SPECIFICATIONS
Maximum Capacity:
- The input cable port can connect 2 pieces of
- 25mm² three-phase cables.
- Street lamp connection port is compatible with cables of 2.5mm² and below.
- For input cable ports, each terminal blockmax. supports 3 holes X 2 cables X 5 coresper cable x 25mm² per core.
- The input cable port can be equipped with 2 Cat5e Ethernet cables.
Optional Accessories:
- Terminal block: for terminal markingand convenient maintenance.
- Wogo 3*16mm2 Port
Compliance Standards:
- EN 61439-2
- Compliant with IEC 60529
- IK08 Compliant with EN62262 Standard
- Class 2
- -40°C~+105°C
Installation:
- Mounting lugs with 1 or 2 hooks.
- Fixed installation with M6 screws is available.
Standard Color:
- Contact us for customized colors.
Delivery:
- Pre-wired with high-temperature silicone-coated wires and crimped lugs.
- Supplied with over-voltage & under-voltage protector and cable clamp.

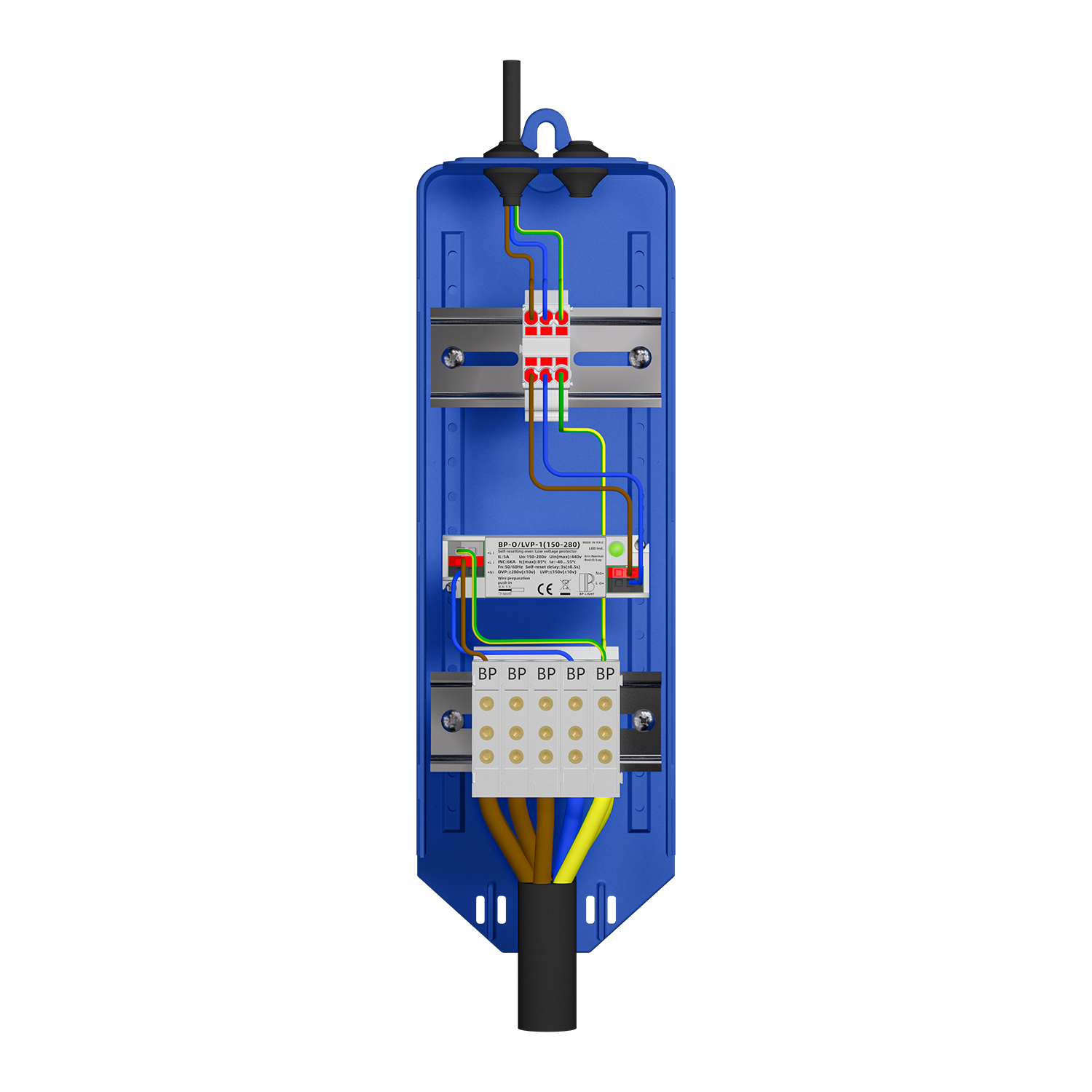

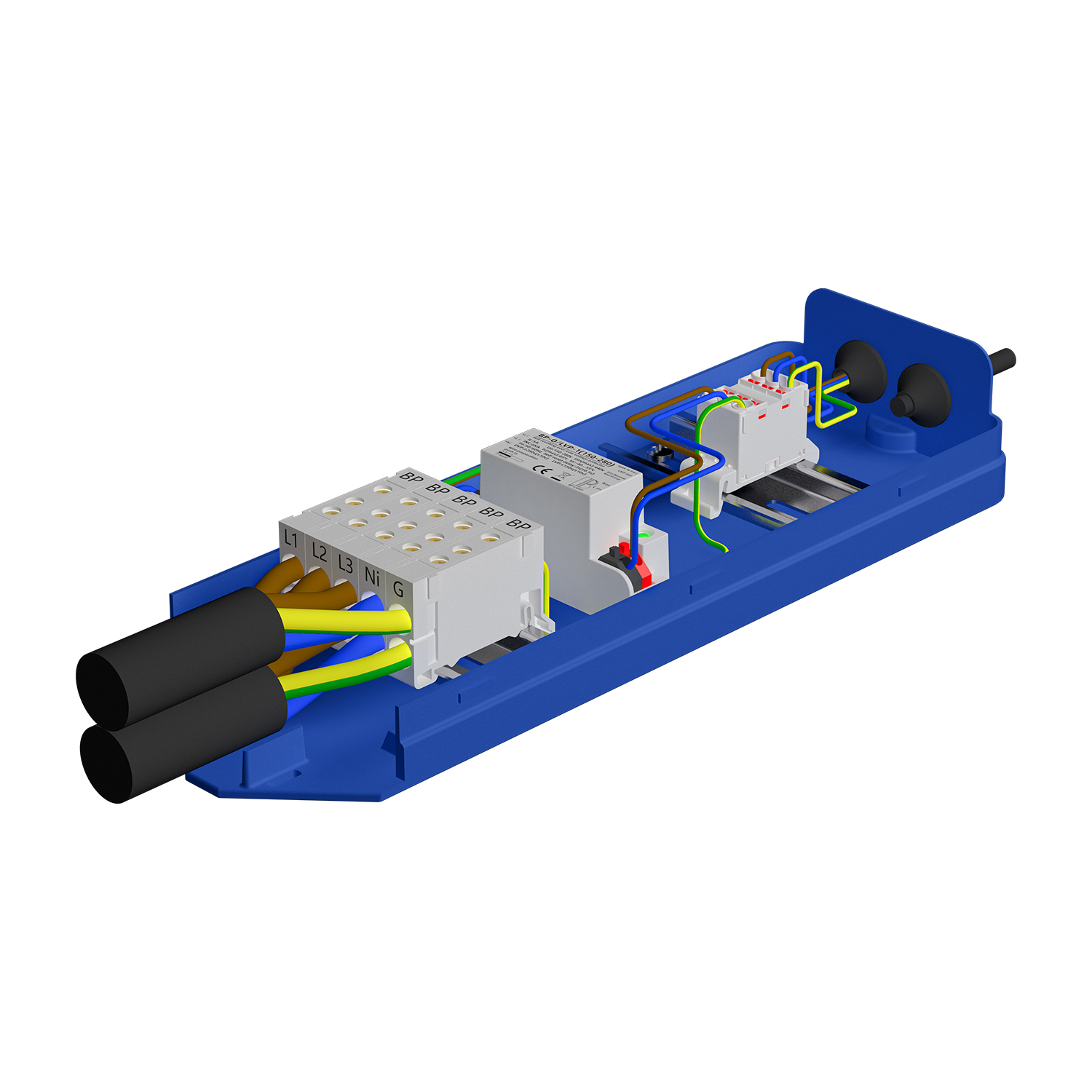

Junction Box Module Display
