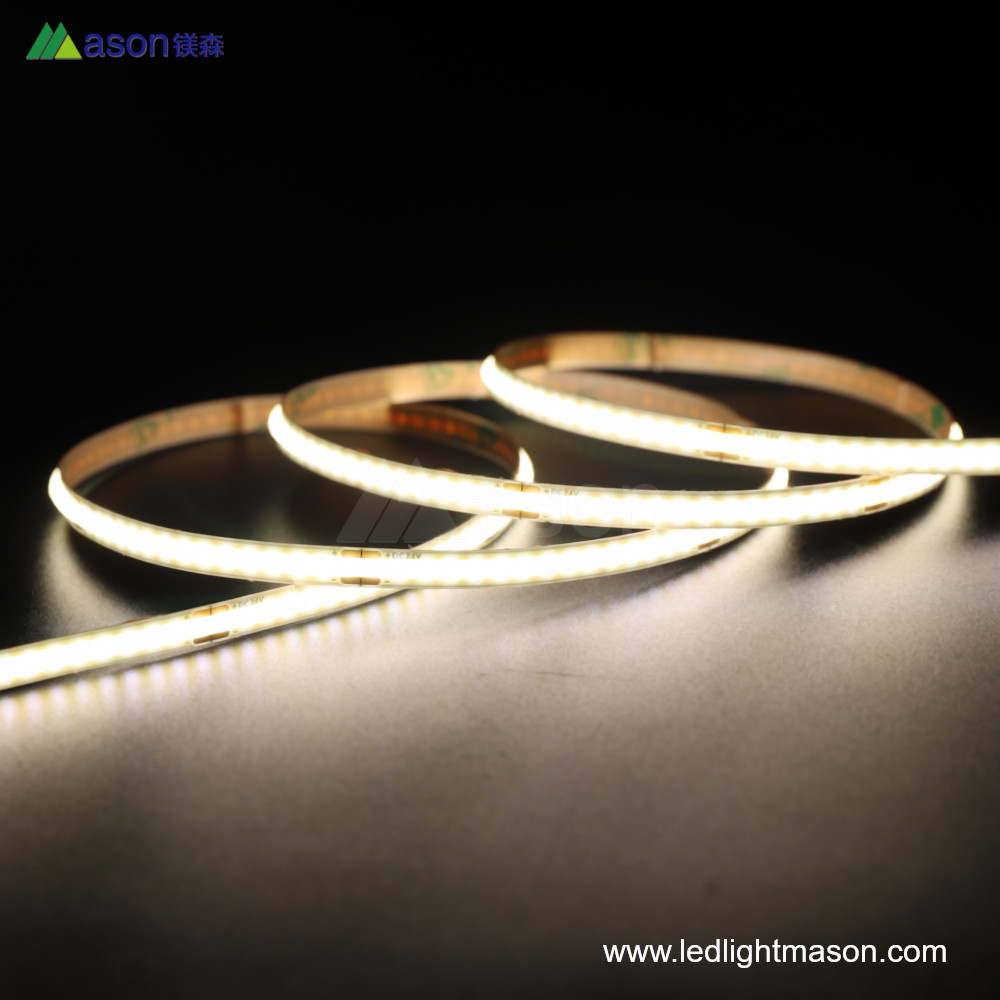

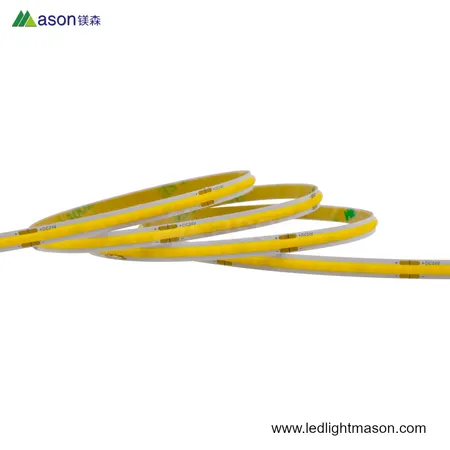

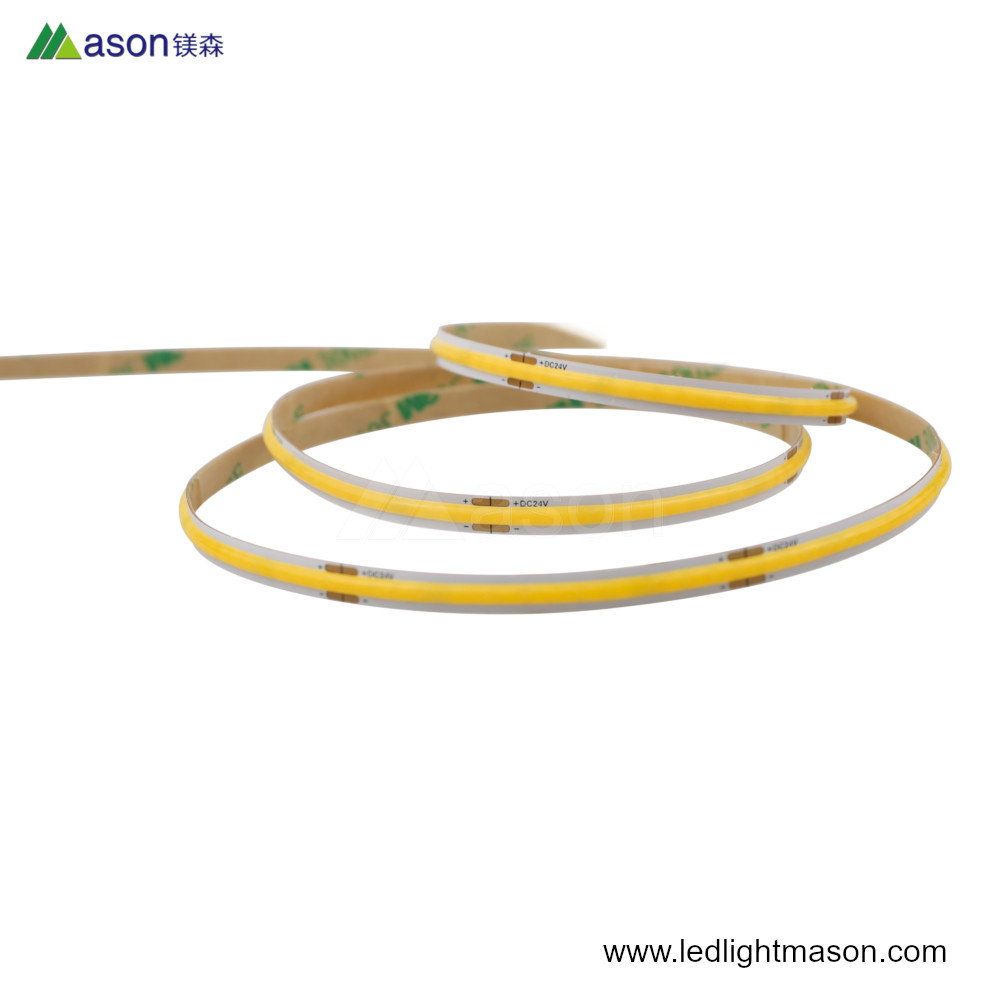

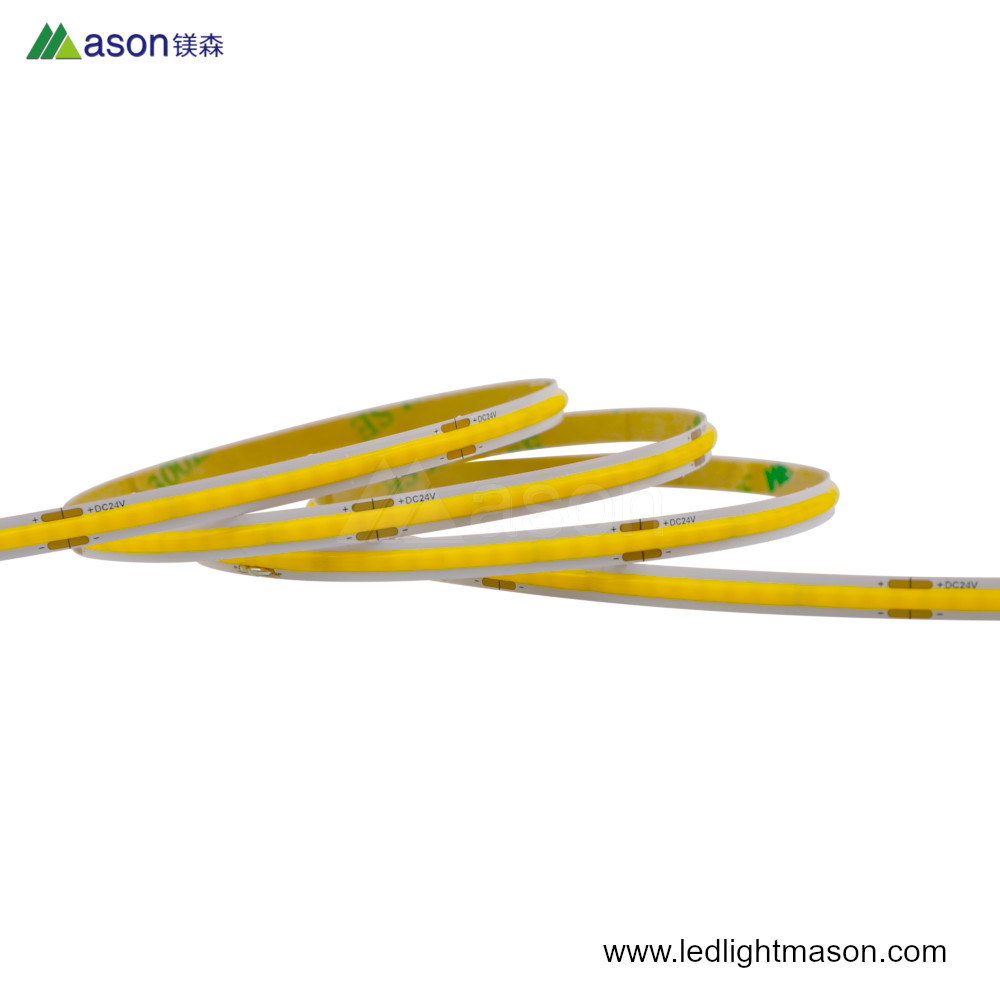

Super Slim COB Strip Light
US $1.23 - US $1.57
Customised:
Yes
Is Dimmable:
Yes
Light Source:
LED
Material:
FPC board, LED chips, resistance
Feature:
5mm width linear lighting with uniform luminace
Size:
length: 5meter, PCB width 5mm
Description
Certification & Document
Contact Supplier
Description
Product Features:
- 300/320/480 LEDs per meter bonded on the FPC board.
- Linear lighting, without light spot, soft and uniform luminance
- Ra>90 with excellent color rendition effect
- ERP energy efficiency
- Only 5mm width. Applicated in various sense especially strict with FPC board width
- High temperature resistance, long lifespan
- No bracket, flexible COB strip light with better bending performance, seamless butting between two solder points
- 5 years warranty
Product Specification:
All data are based on 1 meter IP20 strip
Product No. | LED Qty | Voltage | Power | SDCM | Ra | CCT | Luminous Efficacy | Luminance Flux | Width | Beam Angle | PCB Layer |
MS-LCOB30-300-6W-12V-05F0-90 | 300 | 12V | 6W | <3 | 90 | 3000K | 80-100lm/W | 480-600lm | 5mm | 140° | Double Copper |
MS-LCOB40-300-6W-12V-05F0-90 | 4000K | ||||||||||
MS-LCOB65-300-6W-12V-05F0-90 | 6500K | ||||||||||
MS-LCOB30-320-6W-QV-05F0-90 | 320 | 12/24V | 6W | <3 | 90 | 3000K | 80-100lm/W | 480-600lm | 5mm | 140° | Double Copper |
MS-LCOB40-320-6W-QV-05F0-90 | 4000K | ||||||||||
MS-LCOB65-320-6W-QV-05F0-90 | 6500K | ||||||||||
MS-LCOB30-480-8W-QV-05F0-90 | 480 | 12/24V | 8W | <3 | 90 | 3000K | 80-100lm/W | 640-800lm | 5mm | 140° | Double Copper |
MS-LCOB40-480-8W-QV-05F0-90 | 4000K | ||||||||||
MS-LCOB65-480-8W-QV-05F0-90 | 6500K |
Product Dimension:
12V:
24V:
Certification & Document
Certificate Name
Issued By
Certificate Type
Valid Date
CE Certification
Issued By
Shenzhen BCTC Testing Co., Ltd.
Certificate Type
CE
Valid Date
11 Aug 2022
-
(N/A)
UKCA Certification
Issued By
Shenzhen BCTC Testing Co., Ltd.
Certificate Type
UKCA
Valid Date
11 Aug 2022
-
(N/A)
RoHS Certification
Issued By
Shenzhen BCTC Testing Co., Ltd.
Certificate Type
RoHS
Valid Date
12 Aug 2022
-
(N/A)
