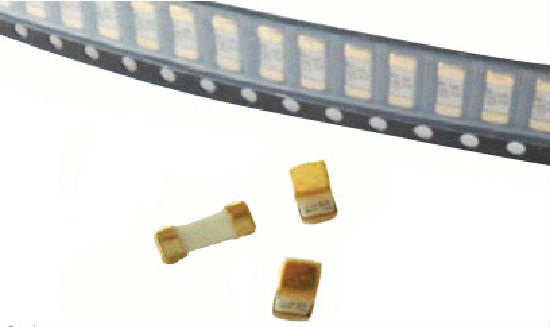

Fast Acting Fuse Series

• Dimension: 6.1x2.6x2.6mm
• Ampere Rating:F62mA～25A
• Voltage Rating:125VAC/DC or less

Material:
Body:Ceramic
Terminations:Silver Plated Brass Caps
                      -G:Gold plated brass caps

Packaging:
1,000 fuses in 7 inches dia. reel,or 5,000 fuses in 13 inches dia. reel 12mm wide type,per EIA Standard 481

Approvals:
PSE                                                                    1A~15A
Certified products for U.S. and Canada              62mA~5A
Recognized component for Canada and U.S.     6A-25A
CSA Listed                                                           62mA~10A

Feature:
A:Small volume.
B:Excellent inrush current withstanding capability.
C:Excellent withstand capacity for thermal and mechanic shock.
D:High reliability and stable solderability,2 terminal caps can choice plating gold or silver.
E:Our SEF,SET series products,because the material used in these fuses include high melting temperature type solder and this solder contains more than 85% lead(Pb),so these products can conform to the exempts of the requirements of RoHS Directive(2002/95/EC).
