Surface mounted power track socket, 86mm width
US $17.00 - US $37.00
Production Lead Time:
30-40 day(s)
Shipping Method:
By sea or by air or by express courier
Brand:
DS-ITCS, OEM order is available
Customised:
Yes
OEM power track:
mounted method, width, length, color, surface treatment and other more items canbe exclusive customized.
OEM adapter:
casing material, casing shape, color, plug-in socket standard and other more items can be exclusive customized.
Application:
in all sectors of retail, residential, commercial and industrial.
Material:
6065 aeros[ace Aluminum track, PC adapter or Zinc alloy adapter
Feature:
8000W 32A max
Description
Certification & Document
Contact Supplier
Description
■Products highlights:

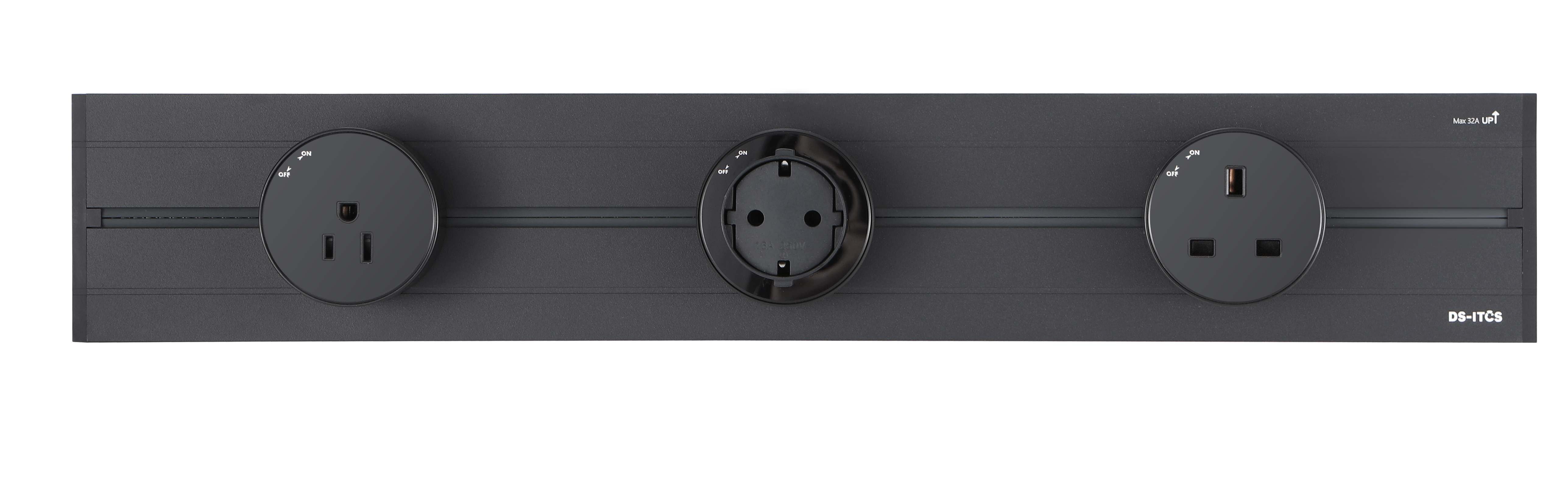

1.Movable power track sockets, can be divided into two parts-track modular & adapter modular.
2.Track modular: with an extra quick connect for easy installation,6065 aerospace aluminum shell, surface treatment powder coating or anodic oxidation，track length and color is customized,
3.Adapter modular: a variety of electrical standard adapters available, including plug-in adapters and USB fast charging adapter. Adapters can be freely added, moved, removed and repositioned along the track.
4.Usually one track can be equipped with 5-6 adapters, plug-in adapter or USB adapter flexibly matched.
■Product features:
Every track can be equipped with several adapters.
The adapters can be freely added, removed or repositioned as per need.
Multiple electrical devices can be used simultaneously without waiting.
Higher efficiency and greater convenience.
■product parameters
Product name | 2.0 power track socket, 86mm width,surface mounted |
Manufacture | Deysen |
Brand name | DS-ITCS |
Origin | Zhejiang China |
Application | Retail, residential, commercial and industrial. |
Importance | Use Deysen power track only with Deysen adapters, don’t use with any other brand. |

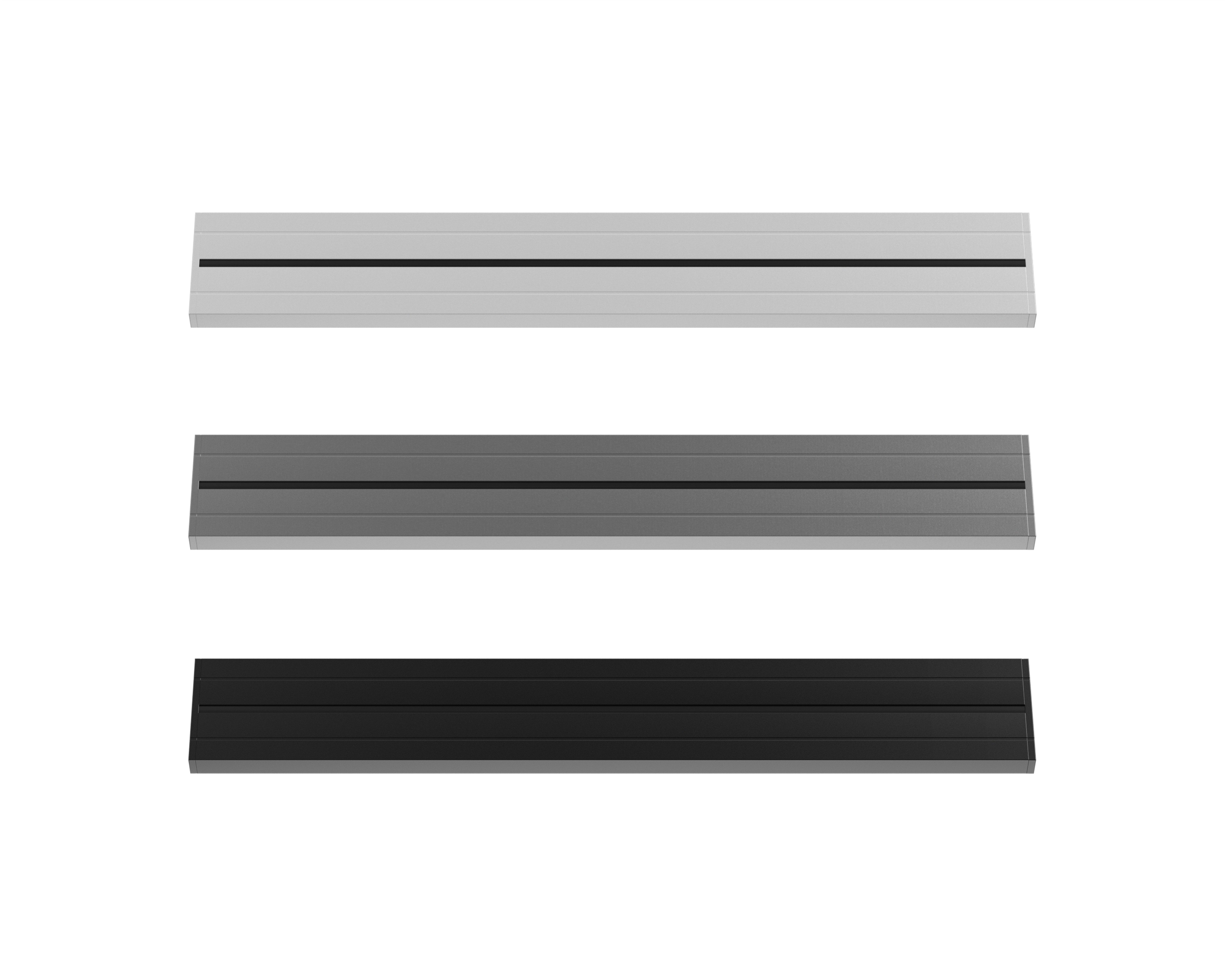

■Track modular：86 simple track, surface mounted | |
Mounted method | surface mounted (can be installed on wall or desktop) |
Length | 400/500/600/800/1000mm |
Width | 86mm |
Height | 18.5mm |
Final height with adapters | 43mm |
Ratings | 32A 250V |
Rated power | 8000W max |
Color | White/Grey/Black |
Temperature | -20℃-55℃ |
IP grade | IP20 |
Housing Material | 6065 aerospace Aluminum |
Insulation Layer material | PC |
Earth connected material | Phosphor bronze/brass/Stainless Steel |
L&N connected material | Brass |
Housing treatment | Powder coating Anodic oxidation |
Track packaged | 9pcs/ctn |
■Adapter modular，international standard adapters | |
Case | PC/Zinc alloy |
Color | White/Grey/Black |
Shape | Round/square |
Size | Φ60.5×27.4mm (round) 58×58×27.4mm (square) |
Adapters available | China GB US EU(Shuko) UK Argentina Thailand Universal multi Dual USB A+C |
Adapters equipped | Every track can accommodate different adapter qty according to its length, add, move or remove adapters as per you need. |
Usage | Rotate clockwise 90°to power on, rotate counter clockwise 90° to power off.it can slide parallel along the track when the power is off. |
Adapter Packaged | 100pcs/ctn. |
■Deysen can offer below more adapter models for OEM selection.
■Why Deysen power track socket?
1.a variety of power track styles for options.
2.track surface treatment: powder coating,scratch resistant, easily clean.
3.The adapters with a friendly indicator light during use.
4.Support max 8000W & 32A loading,
5.Safety protect
■Contacts: Mr.Michael Li, Mobile:0086-15814118851,
