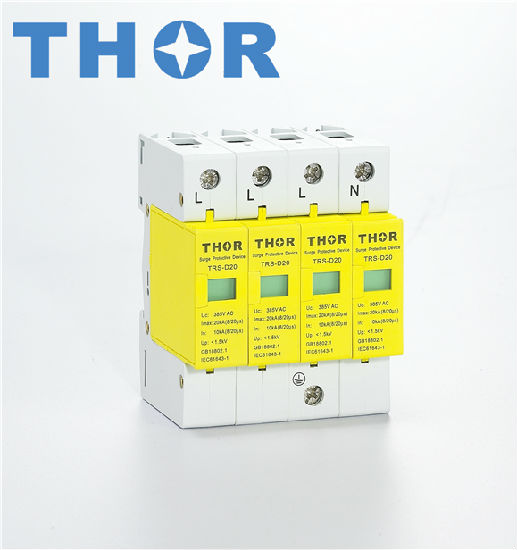

Surge Protection Device (SPD) for AC
Production Lead Time:
7 day(s)
Model No.:
TRS-D
Brand:
THOR
Colour:
white and yellow
Port:
Shanghai, Ningbo
Type of Payment:
T/T
Minimum Order Quantity:
100 piece(s)
Package:
Yes
Customised:
Yes
Description
Contact Supplier
Description
- TRS-D20
- Rated Operating Voltage Un220V/380V
- Max continuous operating voltage Uc385V AC
- Voltage protective level Up(KV)≤1.5
- Max discharge current Imax(8/20μS)20kA
- Nominal discharge current In(8/20μS)10kA
- Response timens〈25
- Proponse grade
- IP20
- Indication of invalidation
- Aging invalidation:green Normal,red:Invaldation
- Configuration dimension
- Three-phase four-wire:72×62×90
- Application
- Primary protection for in line
- Operating condition
- Temp:-40℃~+70℃
- RH≤95%（25℃）
- Sea level elevation≤3km
- Remote signal function
- Can also picking
- Remarks
- Other max continuous operating voltage can be customized
